ACEMAGIC Kron Mini K1 AMD Ryzen Embedded R2544 Processor
Description
xAMD Ryzen Embedded R2544
xSpecification：
Processor
AMD Ryzen Embedded R2544 Processor, 4 Cores/8 Threads, 4MB L3 Cache, Zen+ Architecture, Base Clock Frequency (main frequency): 3.35GHz, Maximum Acceleration Clock Frequency (Turbo Frequency): 3.7GHz
Graphics
Radeon™ Vega 8 Graphic
(GPU clock speed: 1300MHz, GPU cores: 8)
Memory
16GB SO-DIMM DDR4

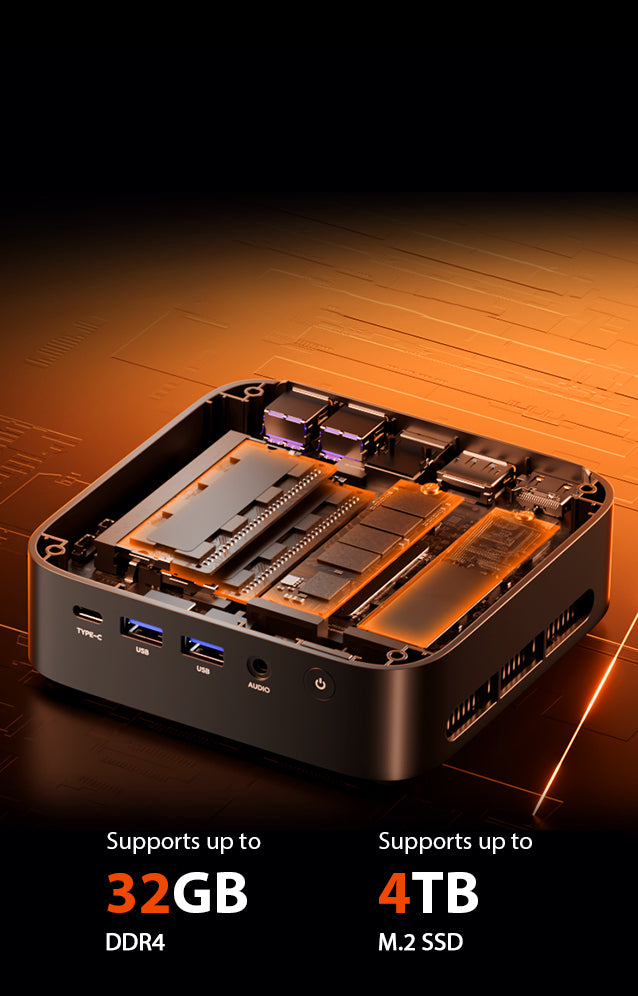

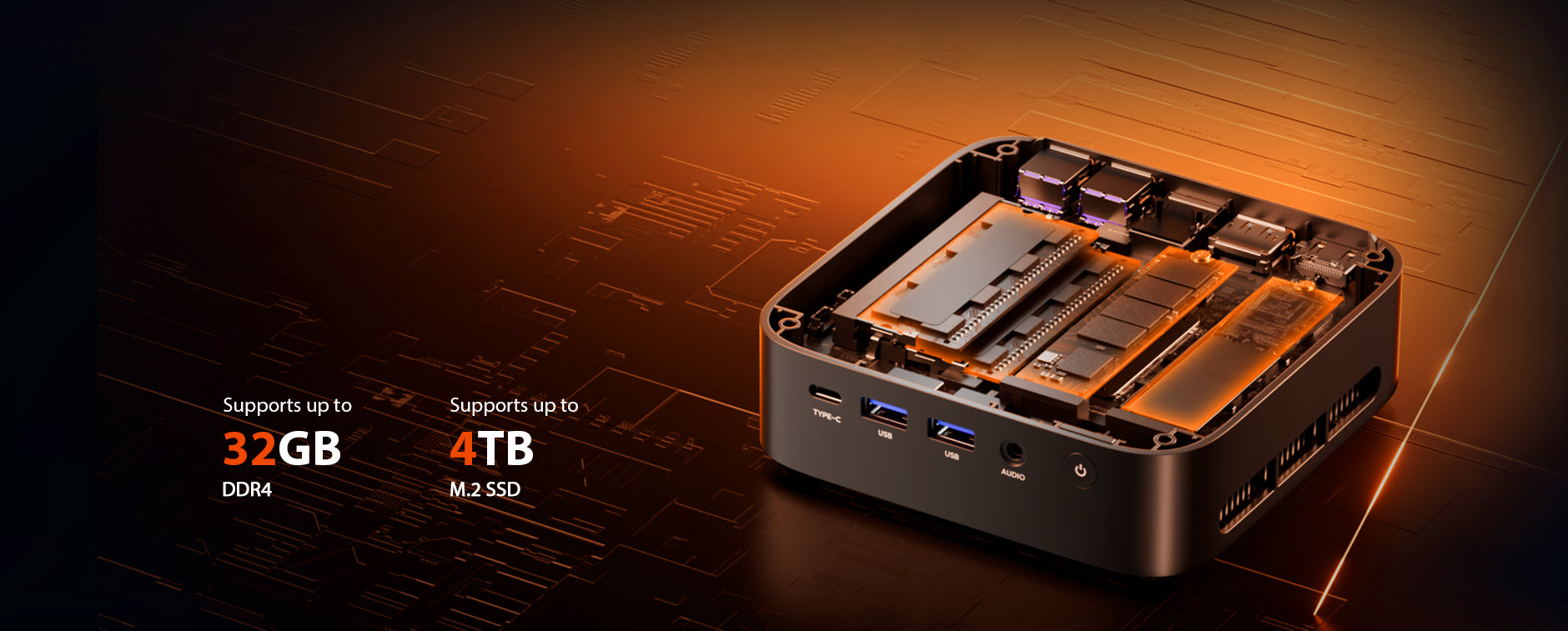

(DDR4 SO-DIMM Slots×2, up to 32GB, maximum supported memory frequency DDR4 3200MHz)
(DDR4 SO-DIMM Slots×2, up to 32GB, maximum supported memory frequency DDR4 3200MHz)
Storage
512GB M.2 2280 SATA SSD
(2x M.2 2280 slots: 1x M.2 2280 SATA&NVMe PCIe3.0×2 Slot; 1x M.2 2280 NVMe PCIe3.0×4 Slot. Maximum capacity per drive interface: 2TB)
(2x M.2 2280 slots: 1x M.2 2280 SATA&NVMe PCIe3.0×2 Slot; 1x M.2 2280 NVMe PCIe3.0×4 Slot. Maximum capacity per drive interface: 2TB)
Wireless Connectivity
WIFI 5 + BT4.2
Video Output
HDMI 2.0 (4K@60Hz) ×1
USB3.2 Gen1 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz) ×1
USB3.2 Gen1 Type-C (4K@60Hz) ×1
DP1.4 (4K@60Hz) ×1
Audio Output
3.5mm Audio Jack x1
Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×1
USB3.2 Gen1 Type-A Port×6 (5Gbps)
USB3.2 Gen1 Type-C (Data+DP1.4)
DC IN ×1
HDMI 2.0 ×1
DP1.4 ×1
3.5mm Audio Jack ×1
Power Button ×1
System
Windows 11 pro
Power Supply
DC 19V/3.42A，DC Header 5.5*2.1mm
Dimensions
128.2 × 128.2 × 41mm
ACEMAGIC Kron Mini K1
AMD Ryzen Embedded R2544
AMD Radeon™ Vega 8 Graphics

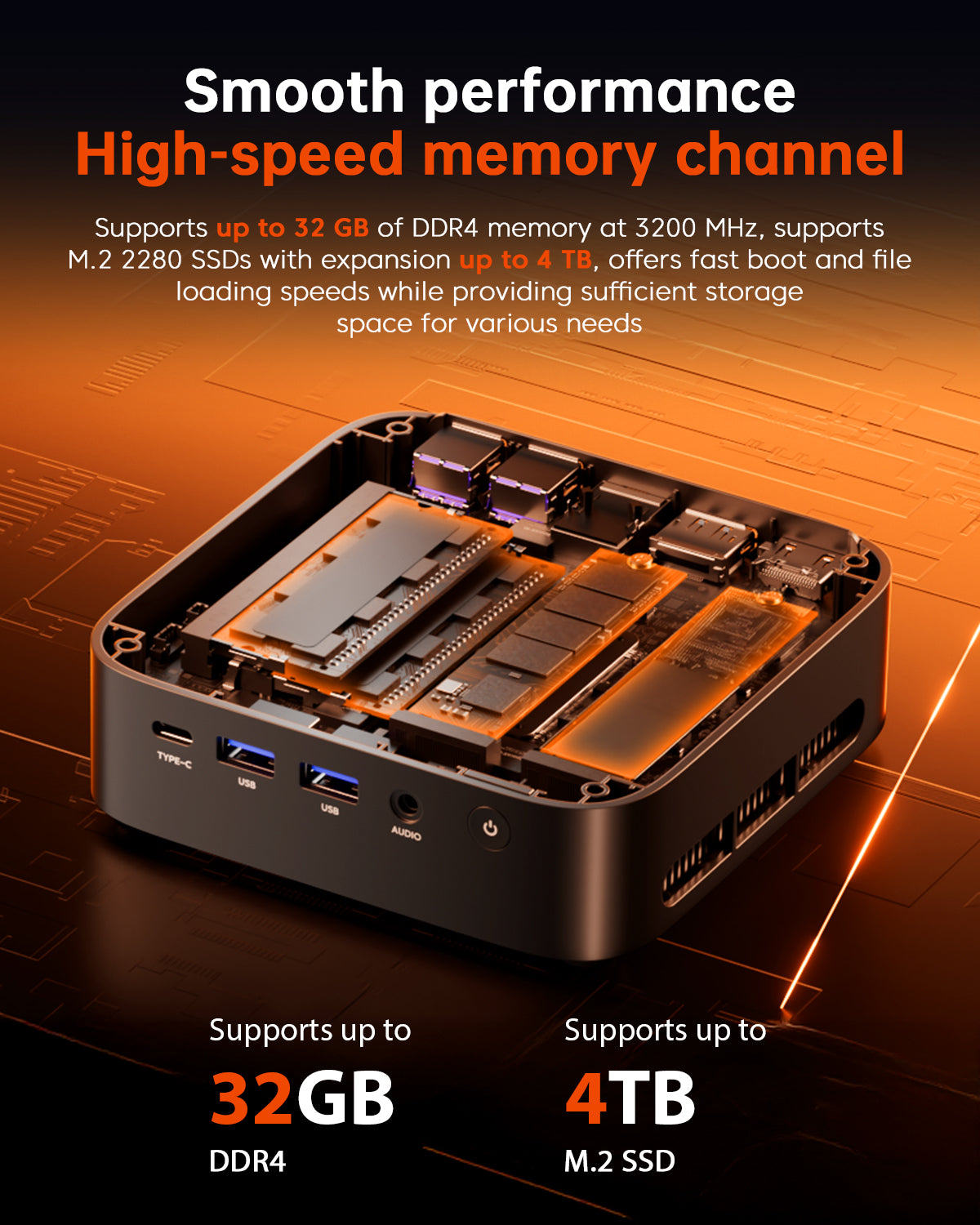

Smooth Performance High-Speed Storage Channel

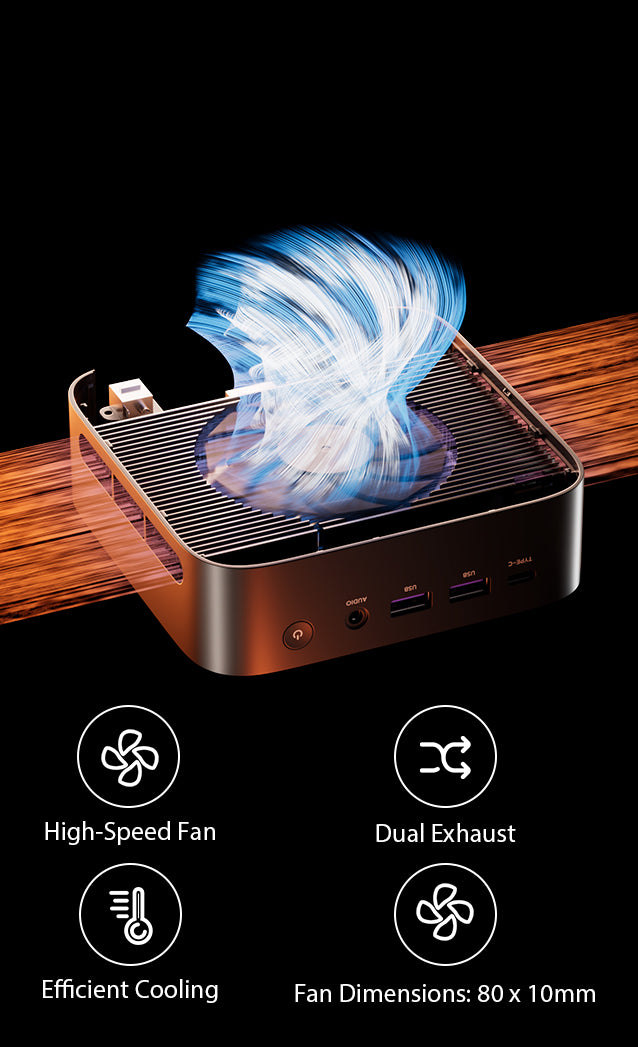

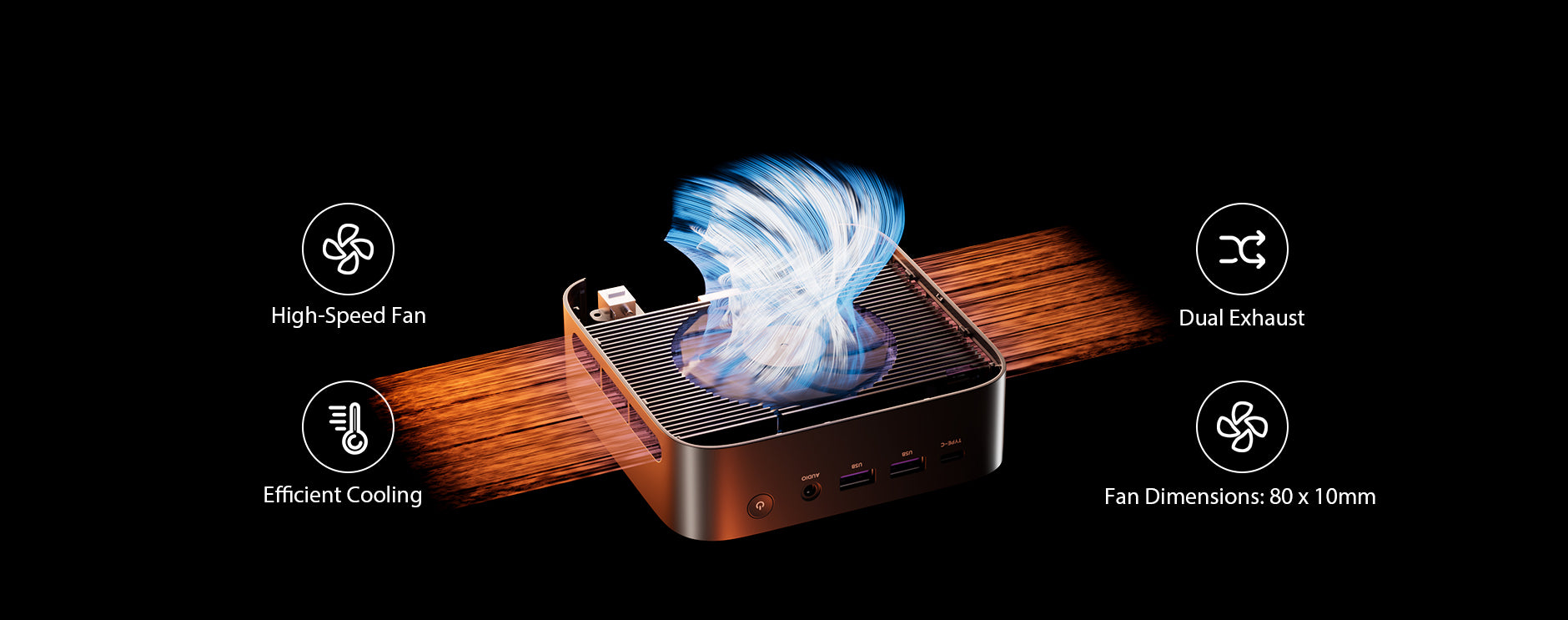

Enhanced Cooling System

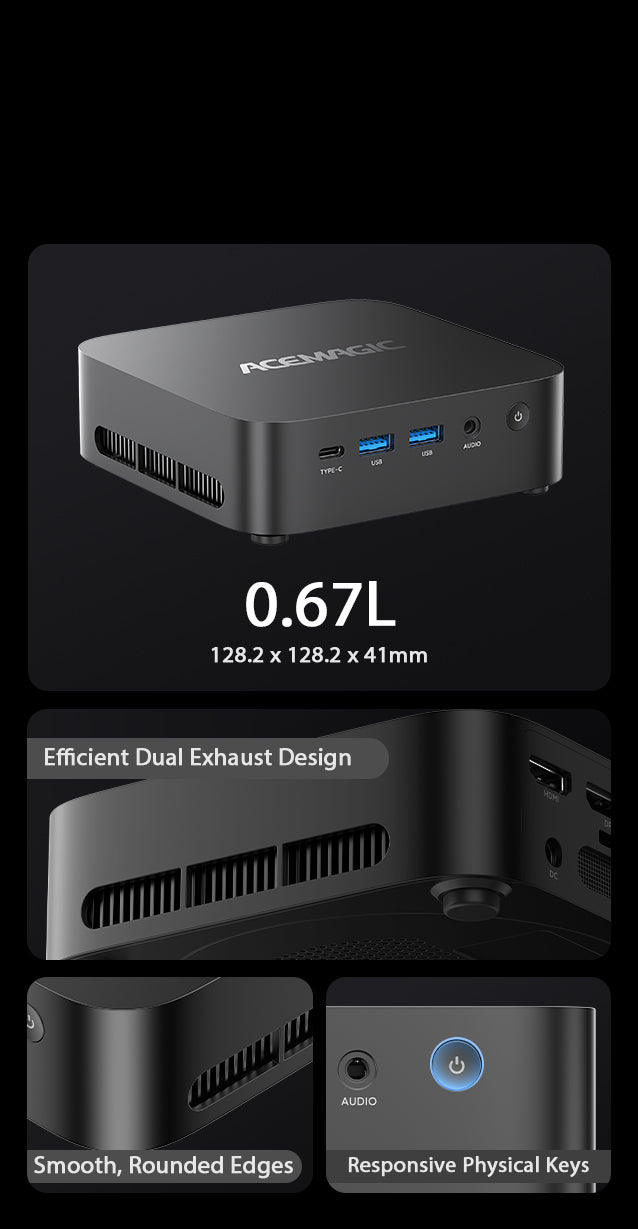

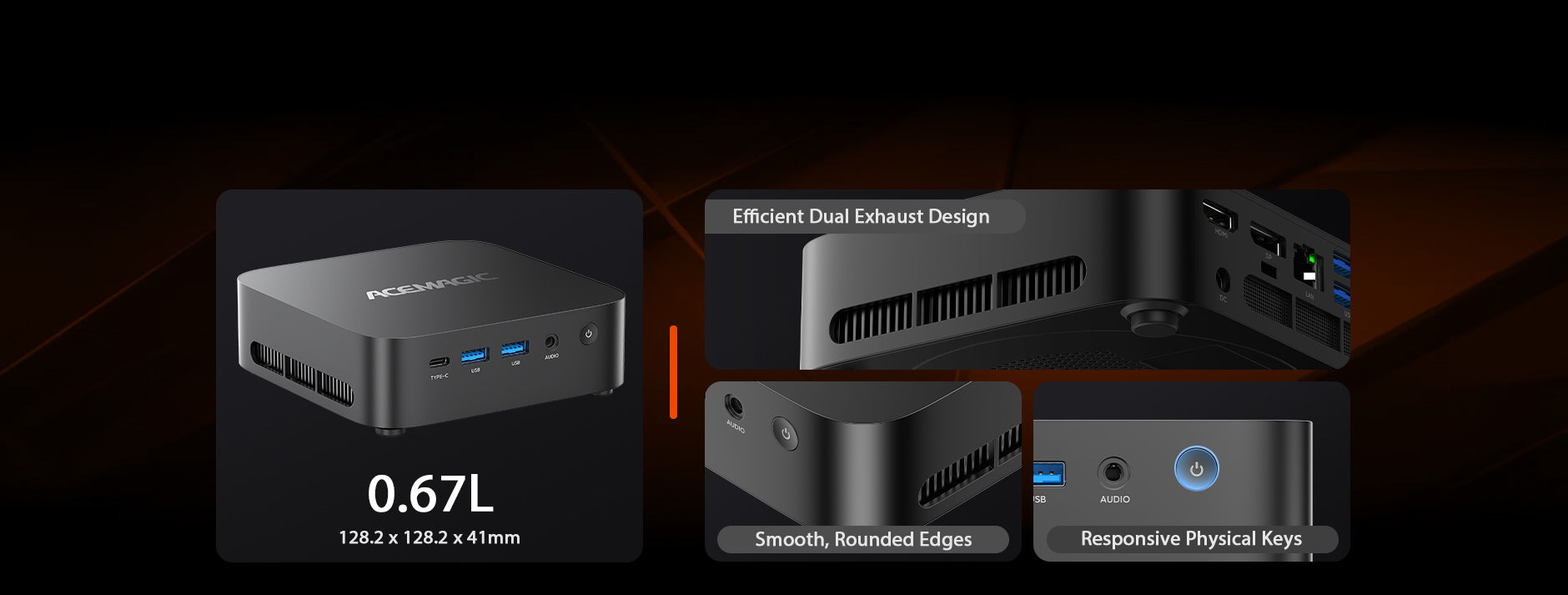

Compact Size, Space-Saving

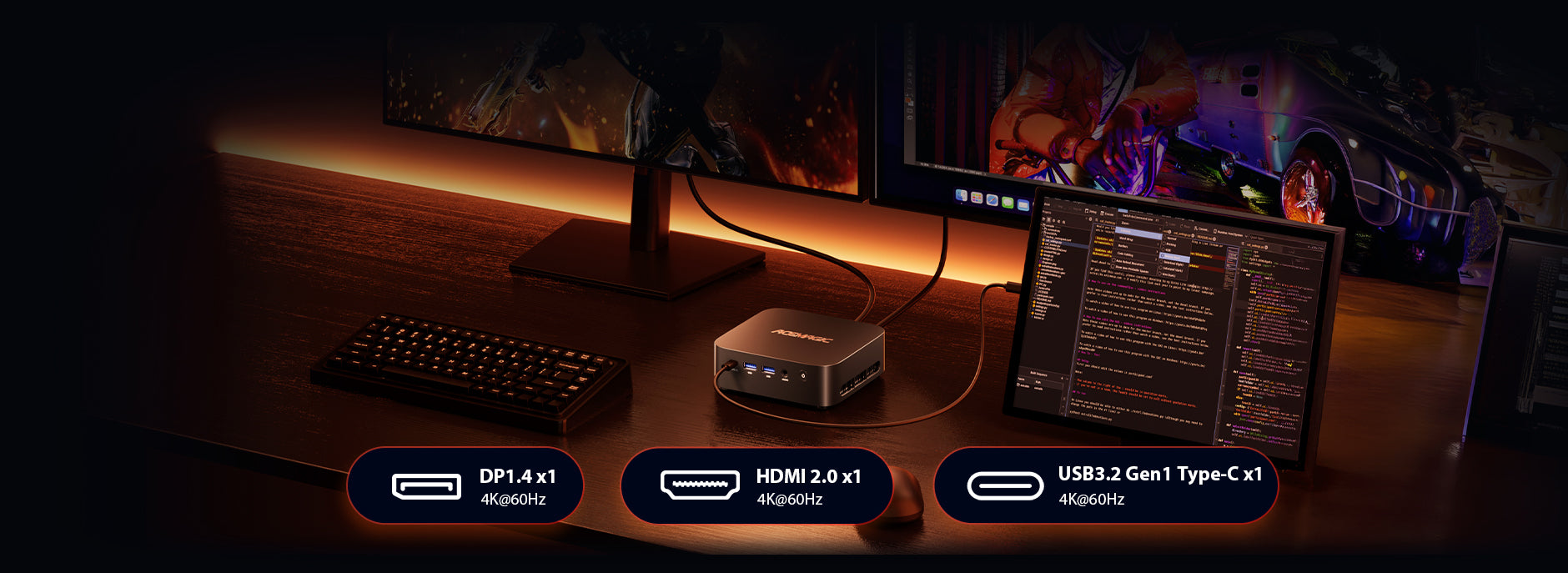

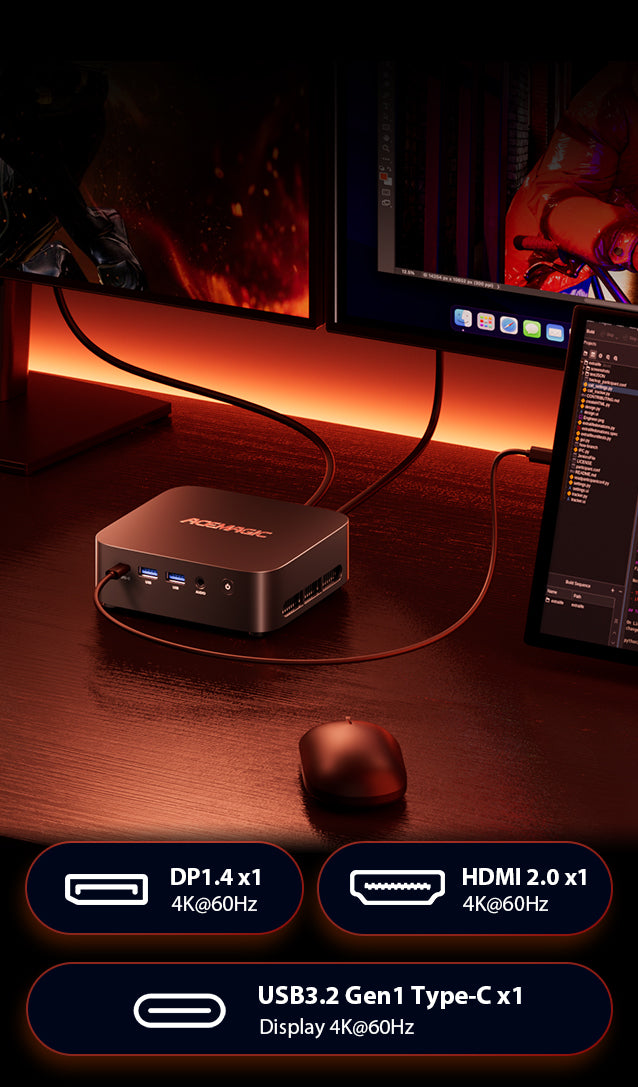

Triple 4K Display Support
High-Speed Wireless Connectivity

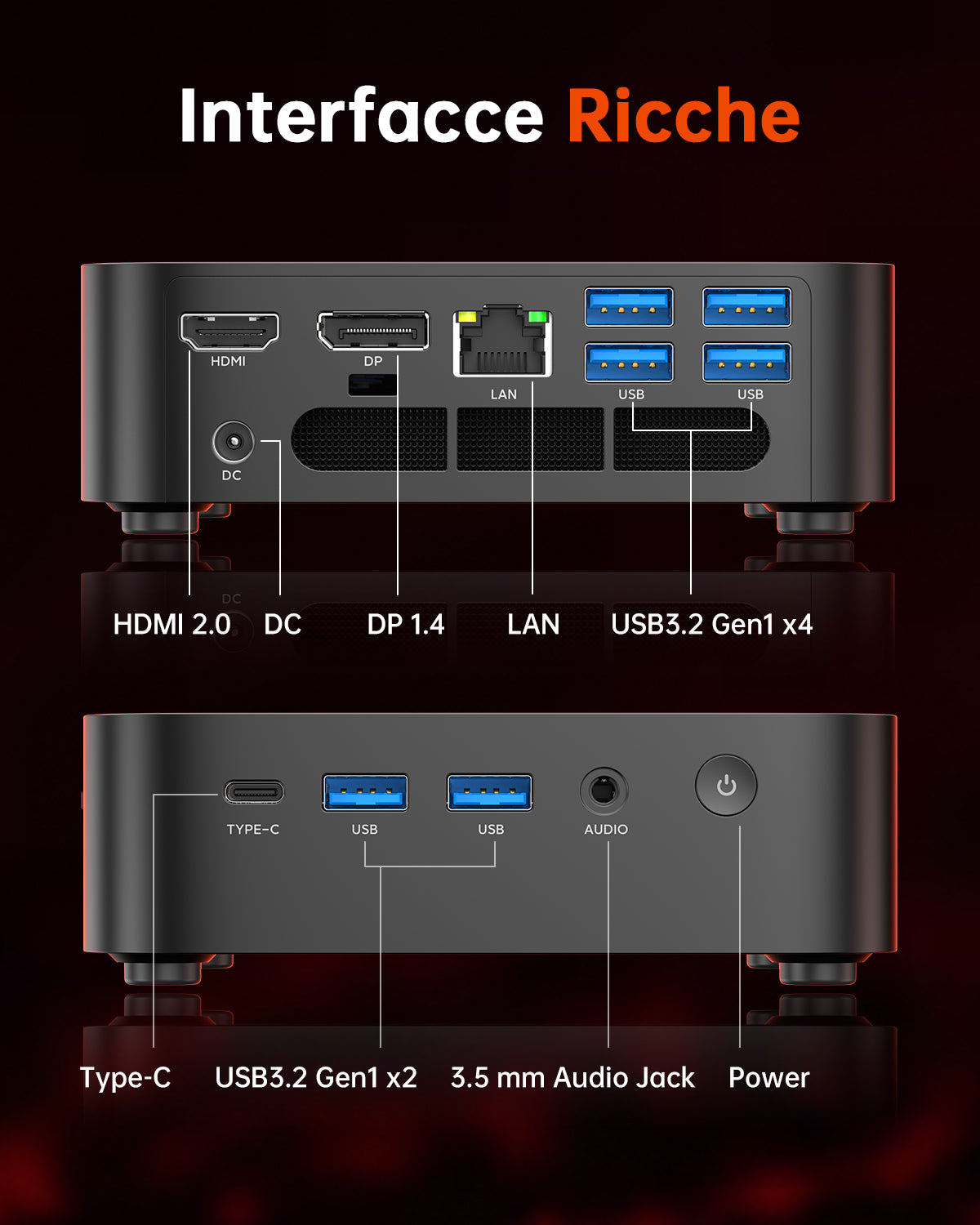

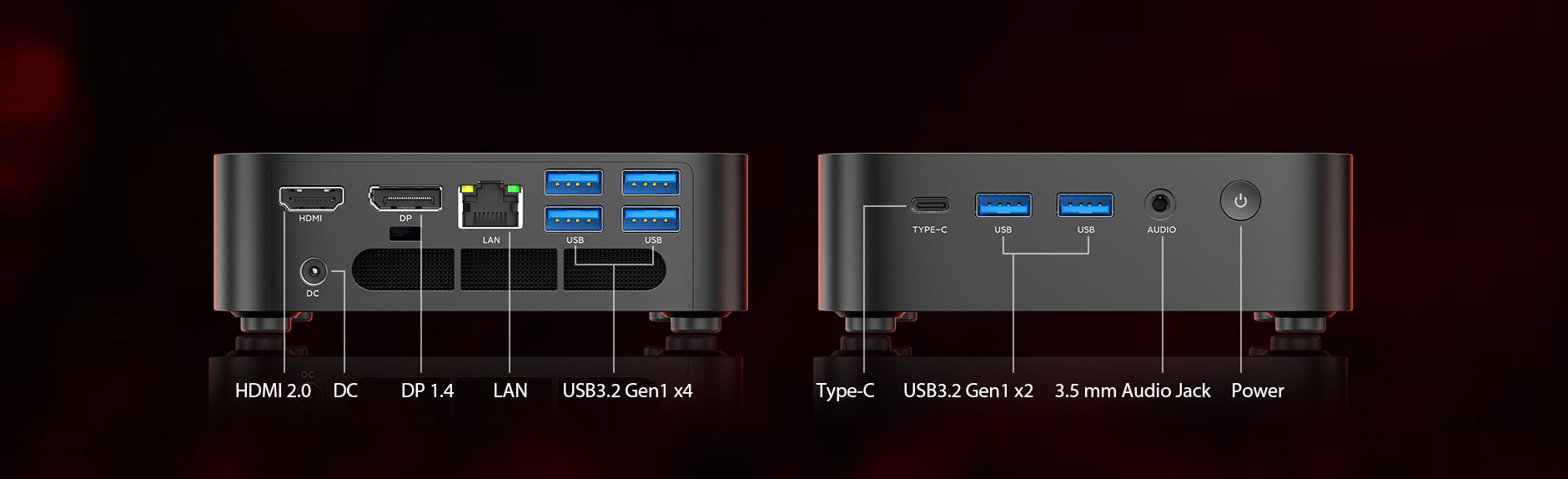

Versatile Ports
Product Structure Diagram
What's in the box?
