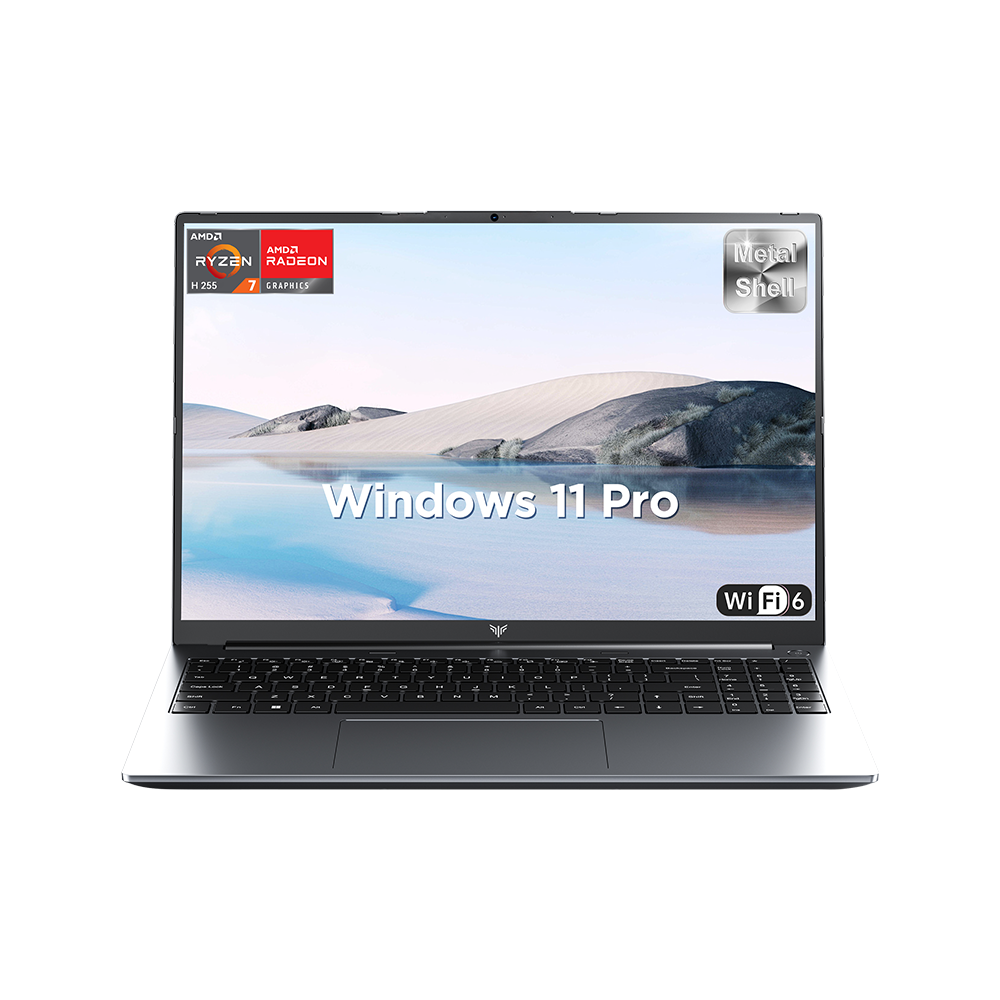

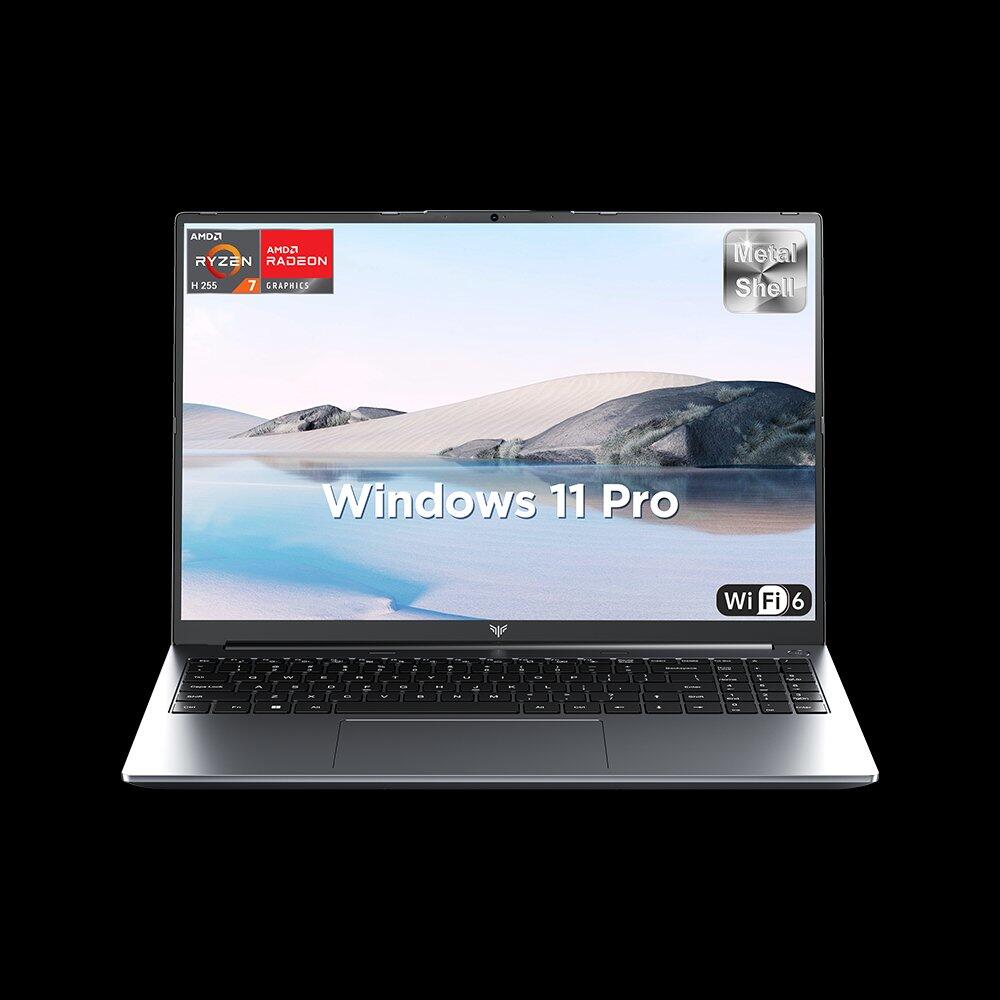

ACEMAGIC RX16
ACEMAGIC RX16
Processor
AMD Ryzen™ 7 H255 processor, 8 cores/16 threads, 3.8 GHz – 4.9 GHz, Zen 4 architecture, TSMC 4 nm FinFET process technology, 16 MB L3 cache, 45W TDP
Graphics
AMD Radeon™ 780M (Graphics Frequency 2600 MHz, Number of Graphics Cores: 12)
Memory
16GB DDR5 4800MHz
(DDR5 SO-DIMM Slots×2, up to 64GB, maximum supported memory frequency DDR5 5600MHz)

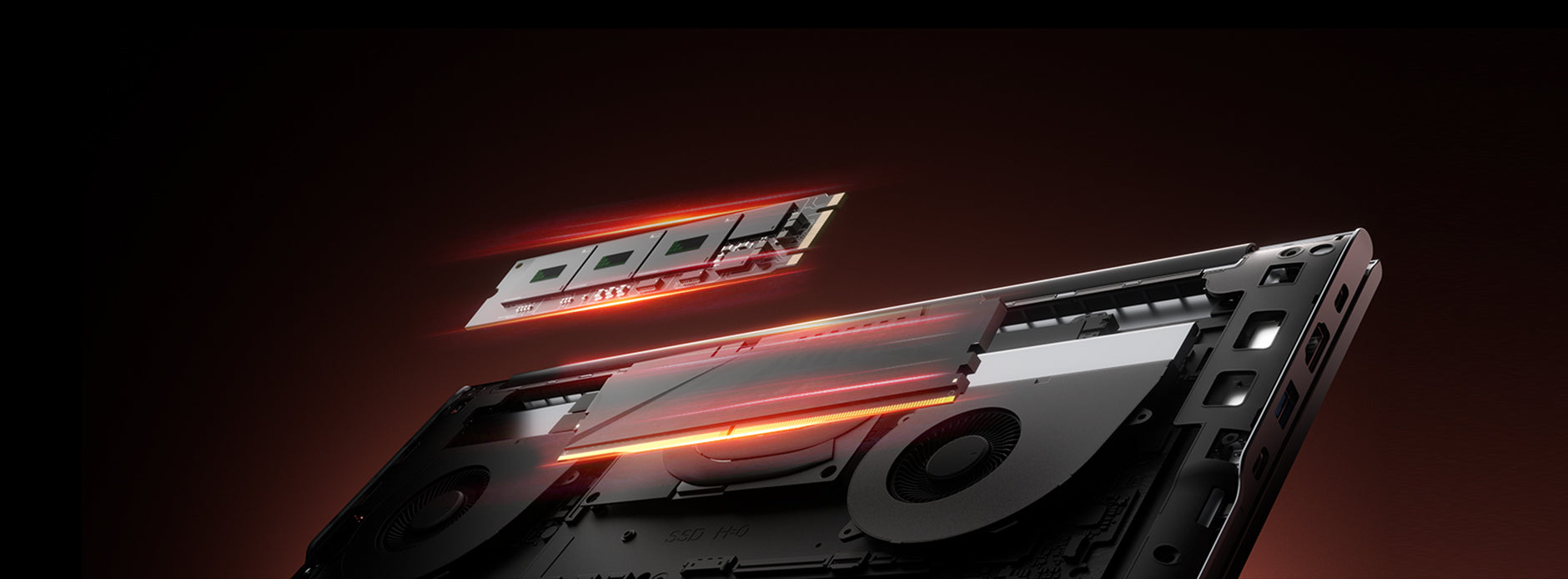

Storage
512GB M.2 2280 NVMe PCIe 3.0 SSD
(2x M.2 2280 Slots, 2 drive bays support M.2 NVMe PCIe 3.0/4.0 SSDs, does not support SATA SSDs. Maximum capacity per drive bay is 2TB, with a total system capacity of up to 4TB.)
Wireless Connectivity
WIFI 6 + BT5.2
Video Output
1*Standard HDMI 2.0

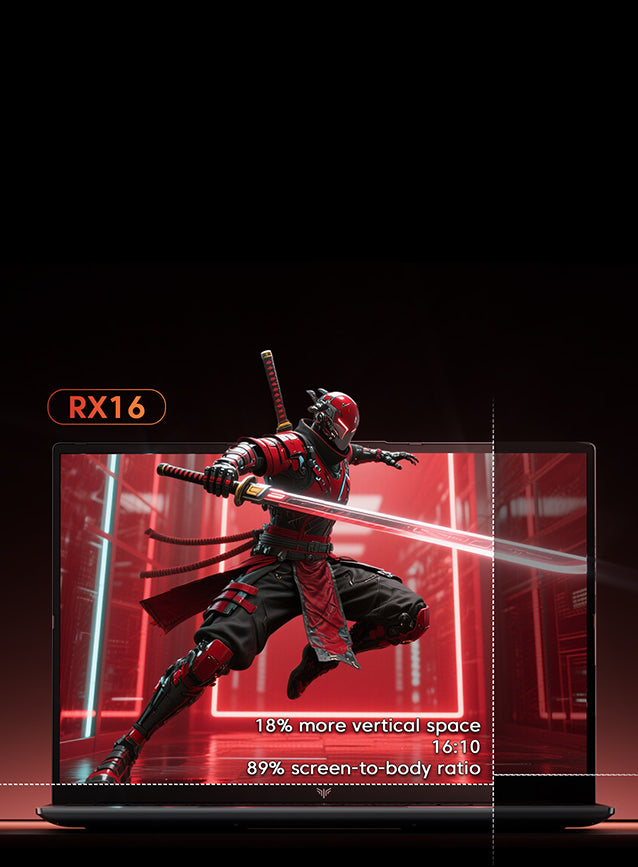

Screen Size
16" IPS 16:10
Screen Resolution
IPS1920*1200 60 Hz screen refresh
Camera
1MP (1280x720)
Battery
11.55V,4400mAh,3S1P,50.82Wh

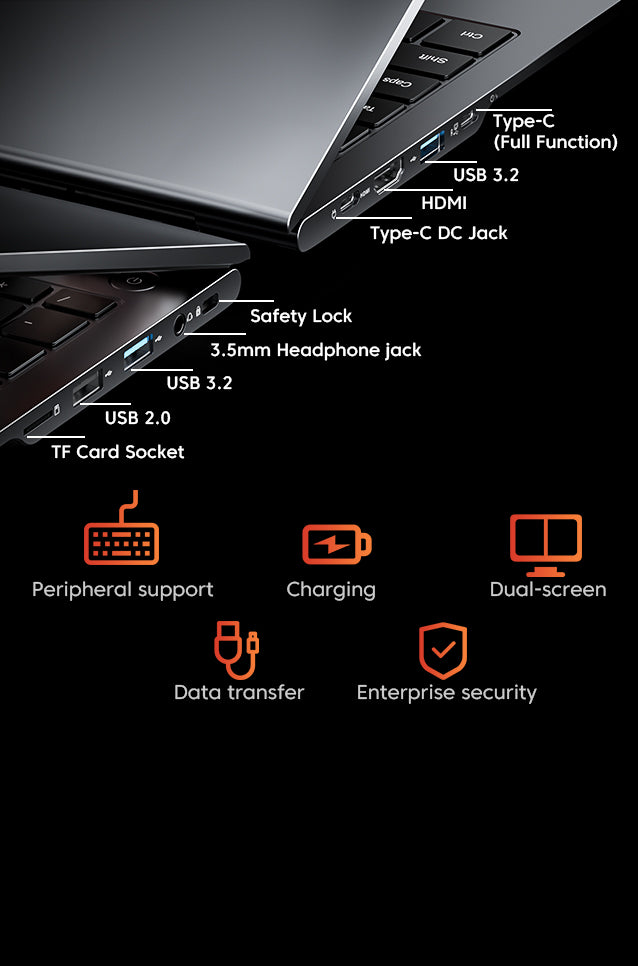

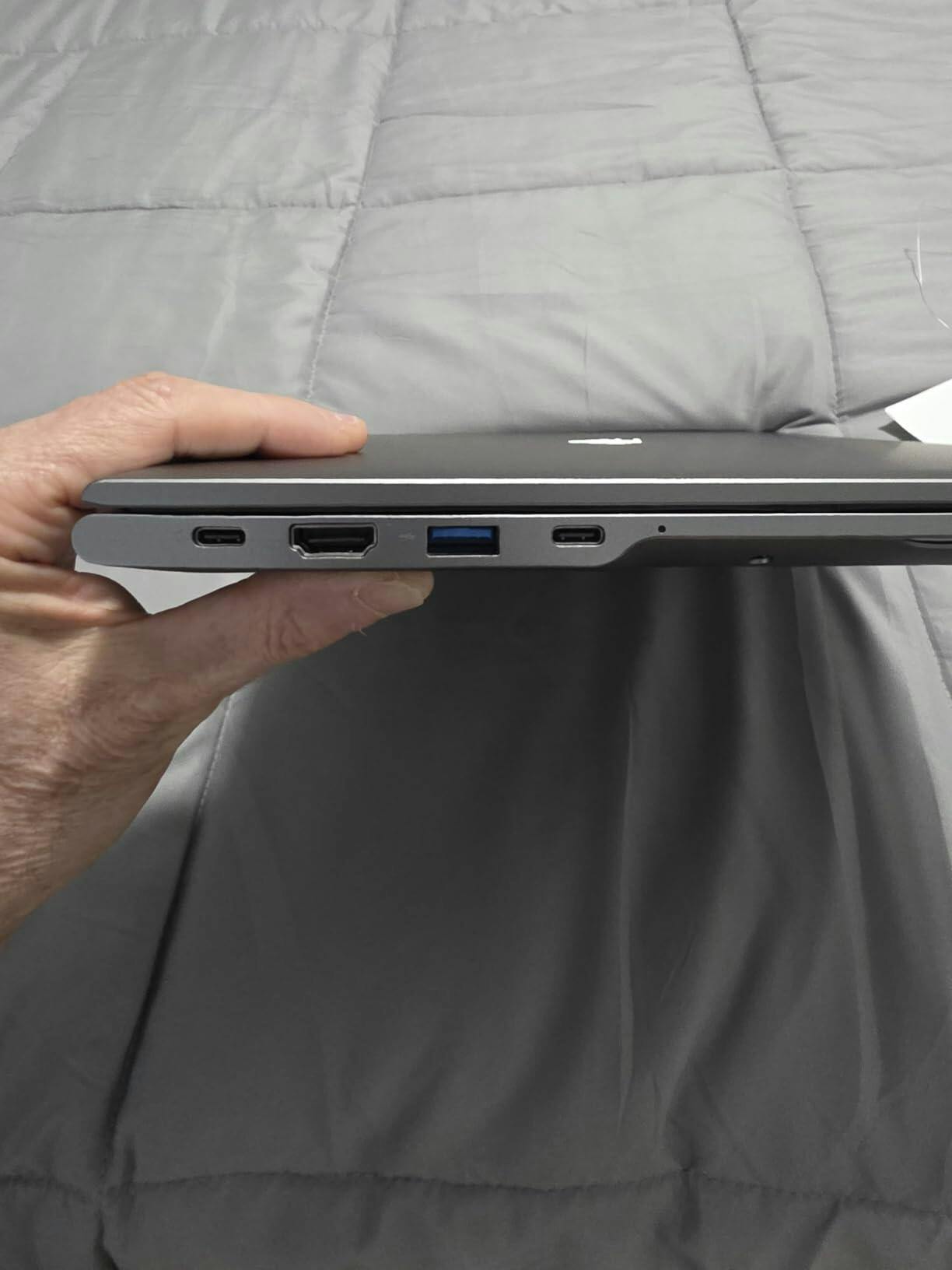

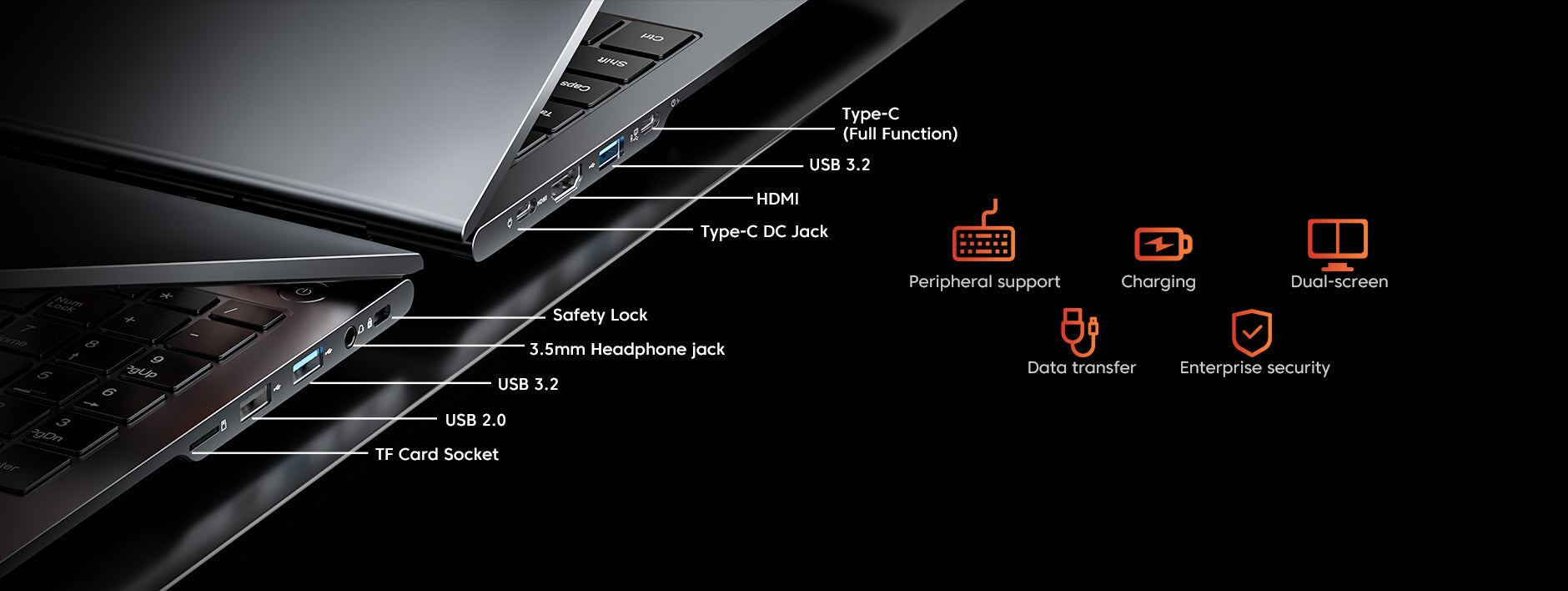

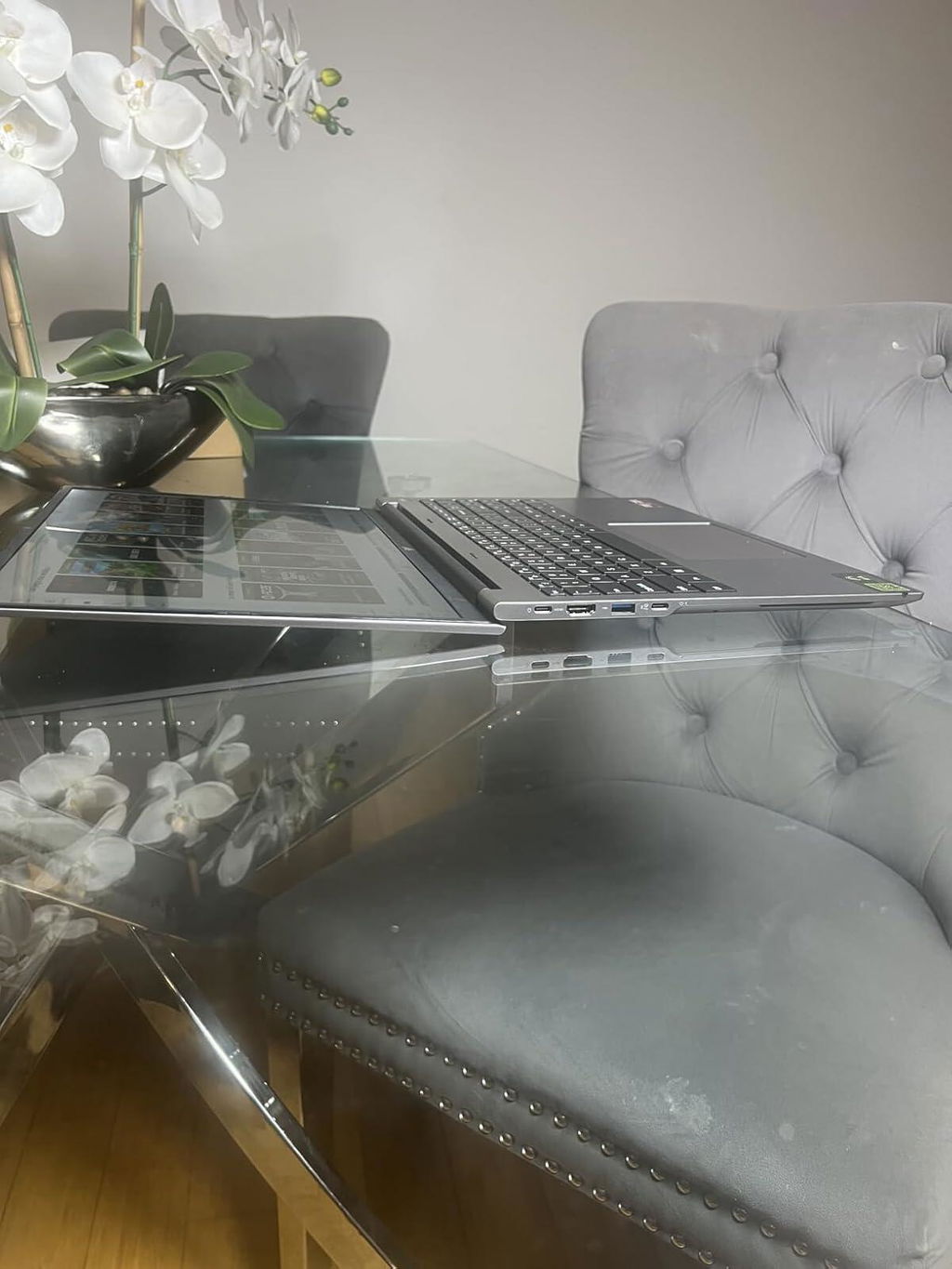

Ports & Buttons
USB 3.2*2 Gen 1
USB 2.0*1
3.5 mm headphone jack*1
HDMI 2.0*1
USB 3.2 Type-C*2, Gen 2 (PD/DP1.4 charging, 8K@60Hz/20Gbps data transfer)
TF Card Slot*1
Keyhole*1
Power
20V/5A,TYPE-C connector
System
Windows 11 Pro
Dimensions
357*247.6*19.9mm

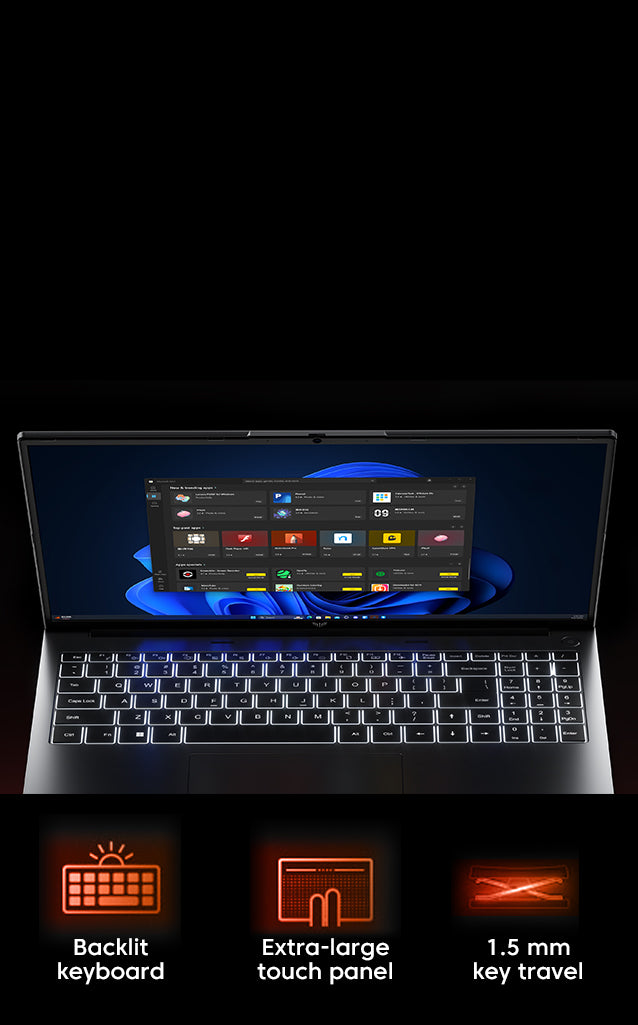

Feature

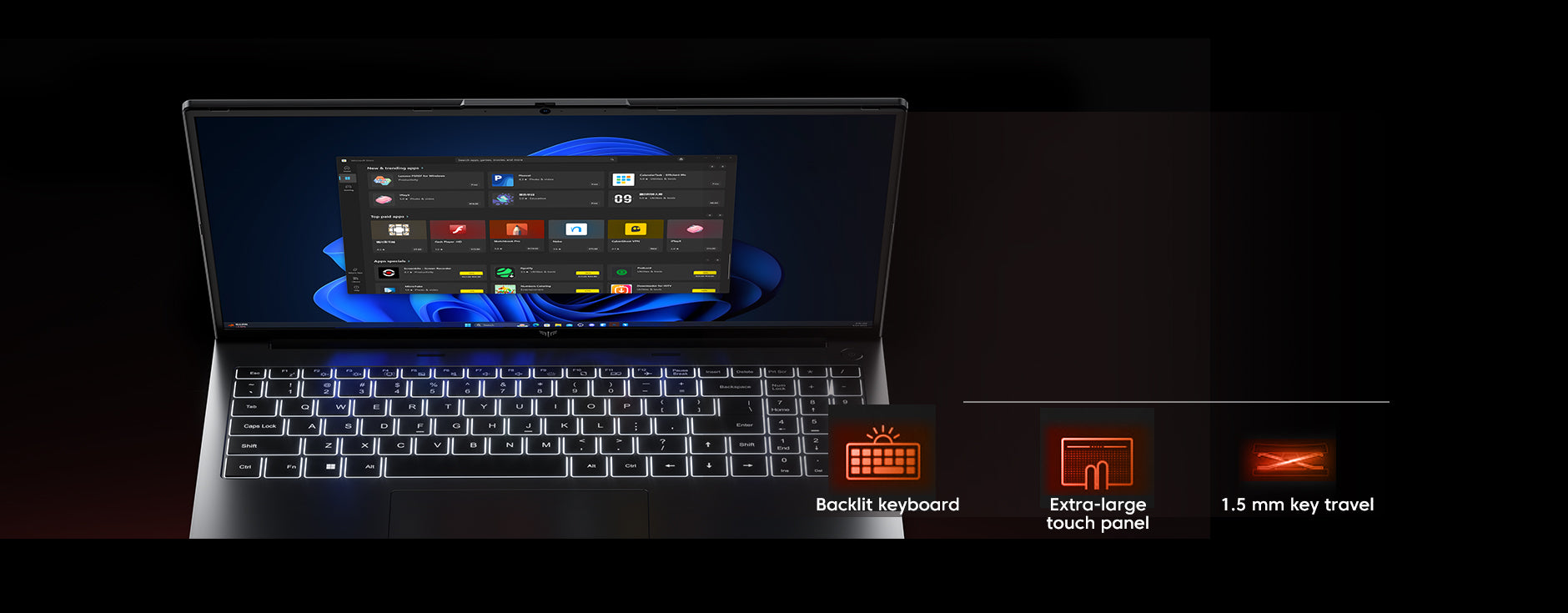

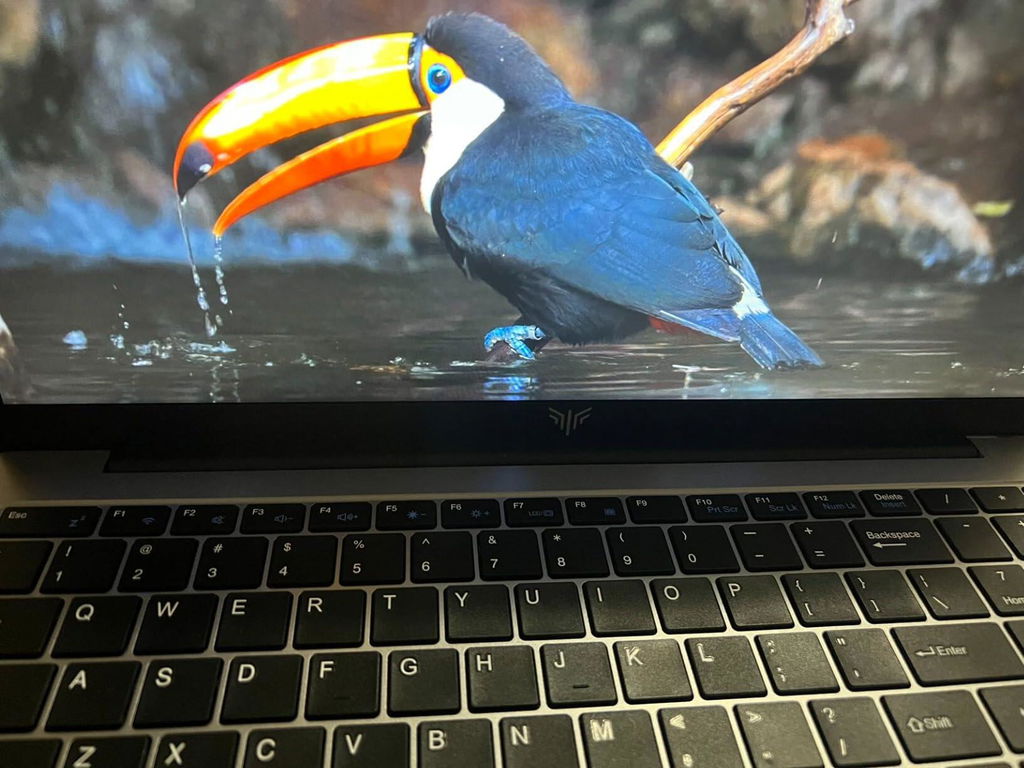

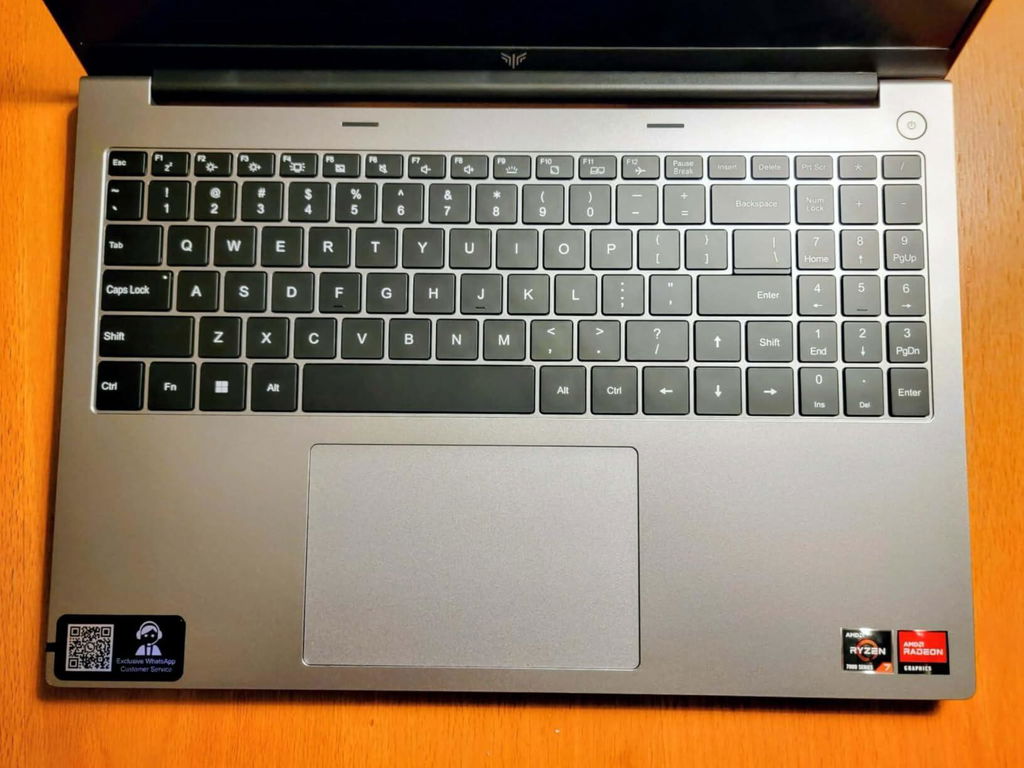

Backlit Keyboard

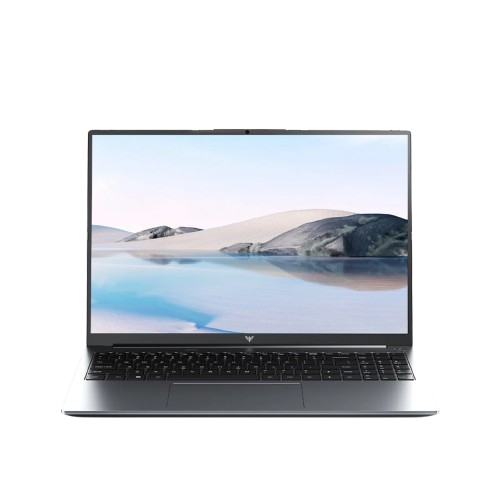

ACEMAGIC RX16
Processor
AMD Ryzen™ 7 7735HS Processor, 3.3GHZ-4.75GHZ
Graphics
AMD Radeon™ 680M, 2.4GHZ
Memory
16GB,2*DDR5 SO-DIMM, up to 64GB 4800MHz
Storage
512GB, 2*M.2 NVME 2280 PCle4.0/3.0, SATA SSDs are not supported, up to 4TB
Wireless Connectivity
WIFI 6 + BT5.2
Video Output
1*Standard HDMI 2.0
Screen Size
16" IPS 16:10
Screen Resolution
IPS1920*1200 60 Hz screen refresh
Camera
1MP (1280x720)
Battery
11.55V,4400mAh,3S1P,50.82Wh

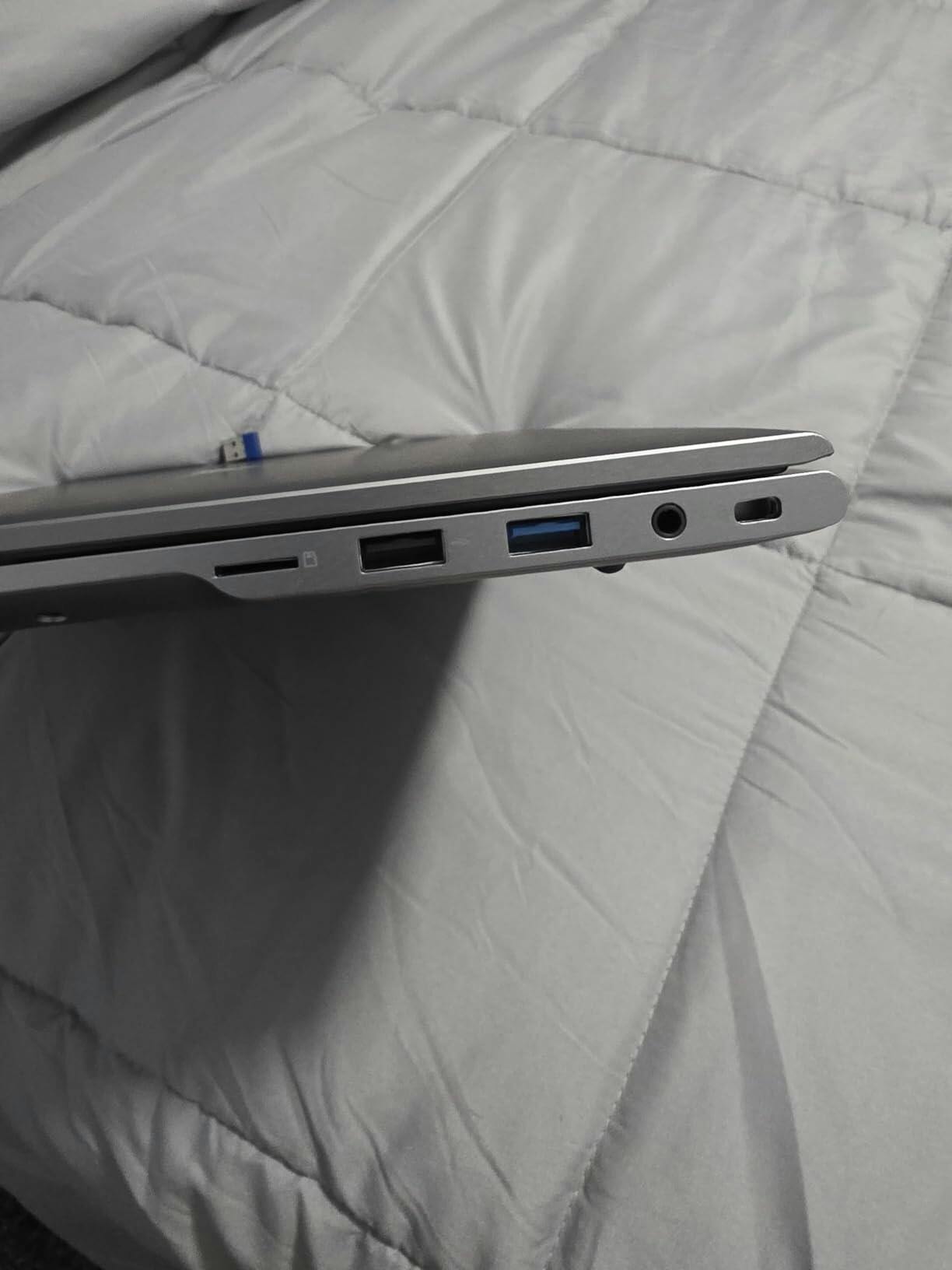

Ports & Buttons
USB 3.2X2,USB 2.0 X1
3.5mm standard headphone jack
type C power connector
1*Standard HDMI 2.0
Type C full function*2 (DP1.4, 8K@60Hz, 20Gbps data transfer, PD charging)
Power
20V/5A,TYPE C connector
System
Windows 11 Pro
Dimensions
357*247.6*19.9mm
Feature
Backlit Keyboard
The display refresh rate of RX16 is 60 Hz.
The charging time is approximately 1 hour and 40 minutes, and the usage time is 5 to 7 hours.
