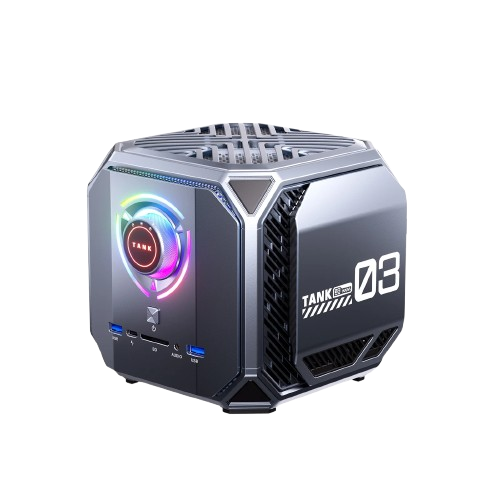

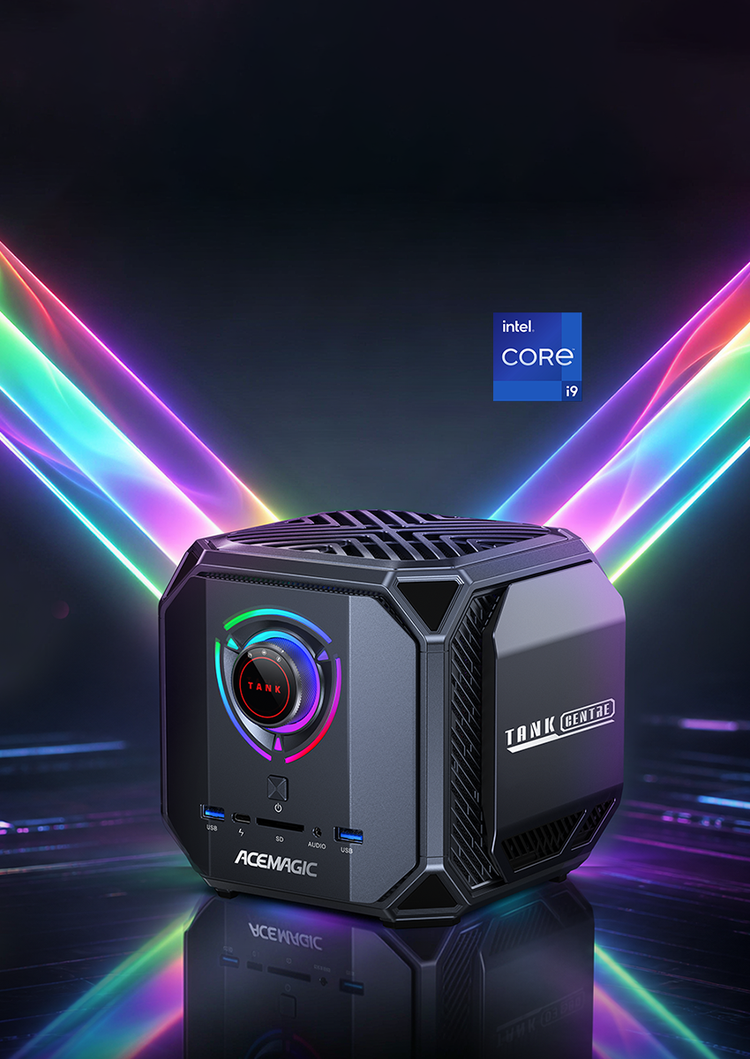

ACEMAGIC TANK03 12900H
ACEMAGIC TANK03 12900H
Processor
Intel® Core™ i9-12900H Processor, 14 Cores/20 Threads (24 MB Intel® Smart Cache, base frequency 2.5GHz, turbo frequency up to 5.0 GHz)

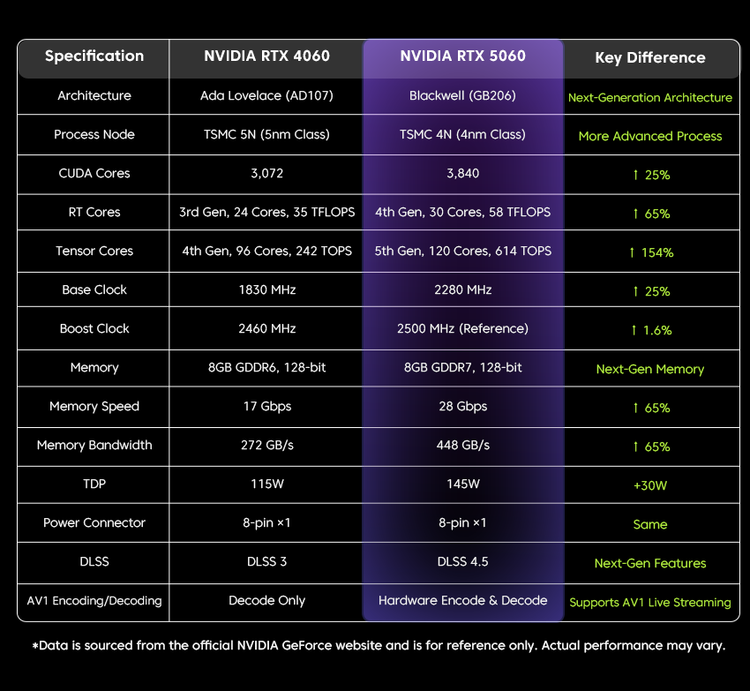

Graphics
NVIDIA GeForce RTX 4060 Latop (8GB GDDR6 memory, 115W power consumption)
AI TOPS (AI computing power): 233
NVIDIA CUDA® Core (core number): 3072
Acceleration frequency (MHz): 1470 - 2370 MHz
Memory
32GB DDR5 4800MT/s Dual channel
(DDR5 SO-DIMM Slots×2, up to 64GB)
Storage
M.2 2280 1TB PCIe3.0×4 NVMe SSD
M.2 2280 Slot x 2 (PCIe NVMe/SATA dual protocol) adaptive
Wireless Connectivity
M.2 2230 WiFi 6 Support+BT5.2
Video Output
HDMI 2.0 *2 (4K@60Hz)
USB4 TYPE-C*1 (8K@60Hz)
DP1.4 *1 (8K@60Hz)
Audio Output
HDMI 2.0 ×2
USB4 TYPE-C×1
DP1.4 ×1
Audio Jack ×2
Ports & Buttons
2.5G RJ45 Gigabit Ethernet Port ×2
USB3.2 Gen2 Type-A Port×3
USB3.2 Gen1 Type-A Port×3
USB4 TYPE-C×1
Power Button×1
5.5/2.5mm DC IN Jack x1
HDMI 2.0 ×2
DP1.4 ×1
SD Card Slot x1
3.5mm Phone Jack x2
Power
12900H+RTX4060+32+1TB: DC 19V/15.79A, DC head 5.5/2.5mm
System
Windows 11 Pro

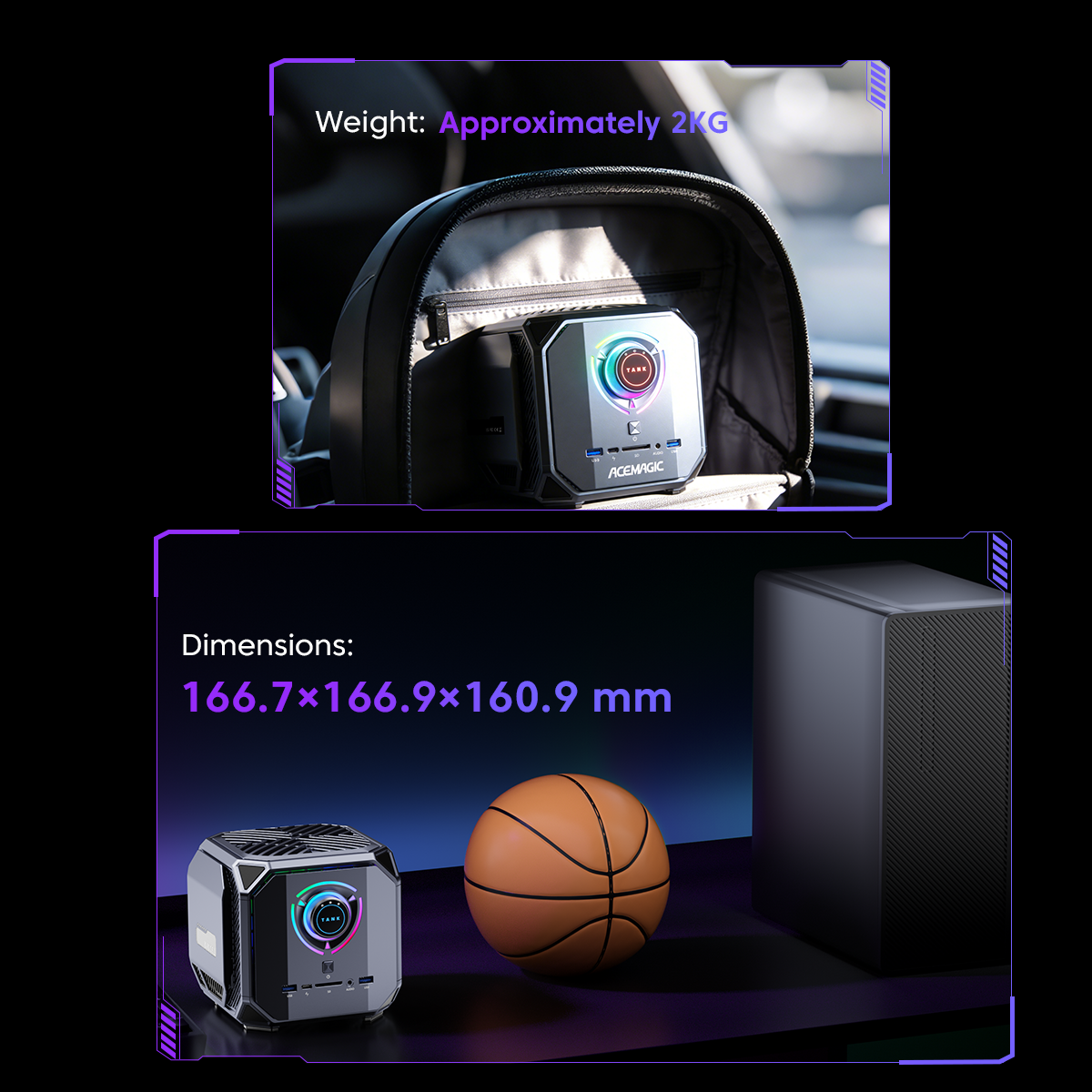

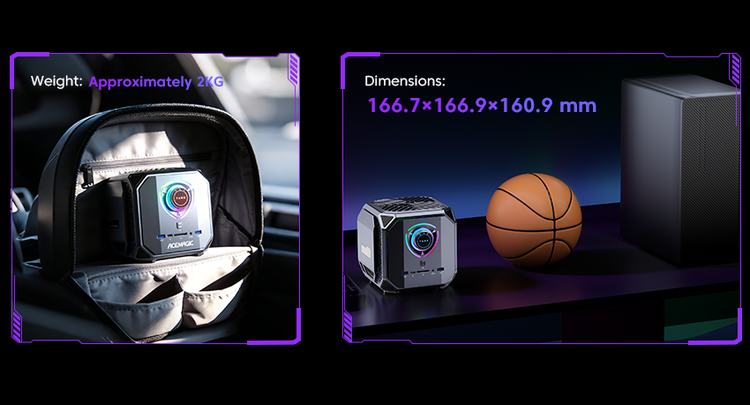

Dimensions

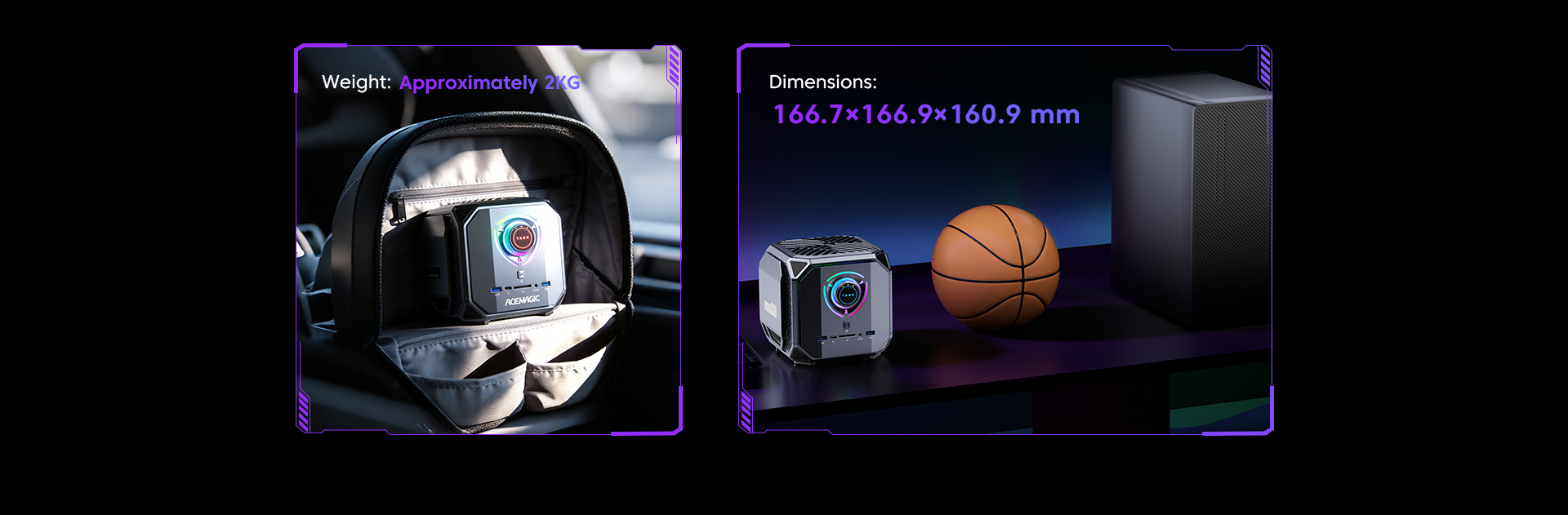

166.7mm*166.9mm*160.9mm
Except for the barebone, all other configurations are pre-installed with the Win11 system.
