Description

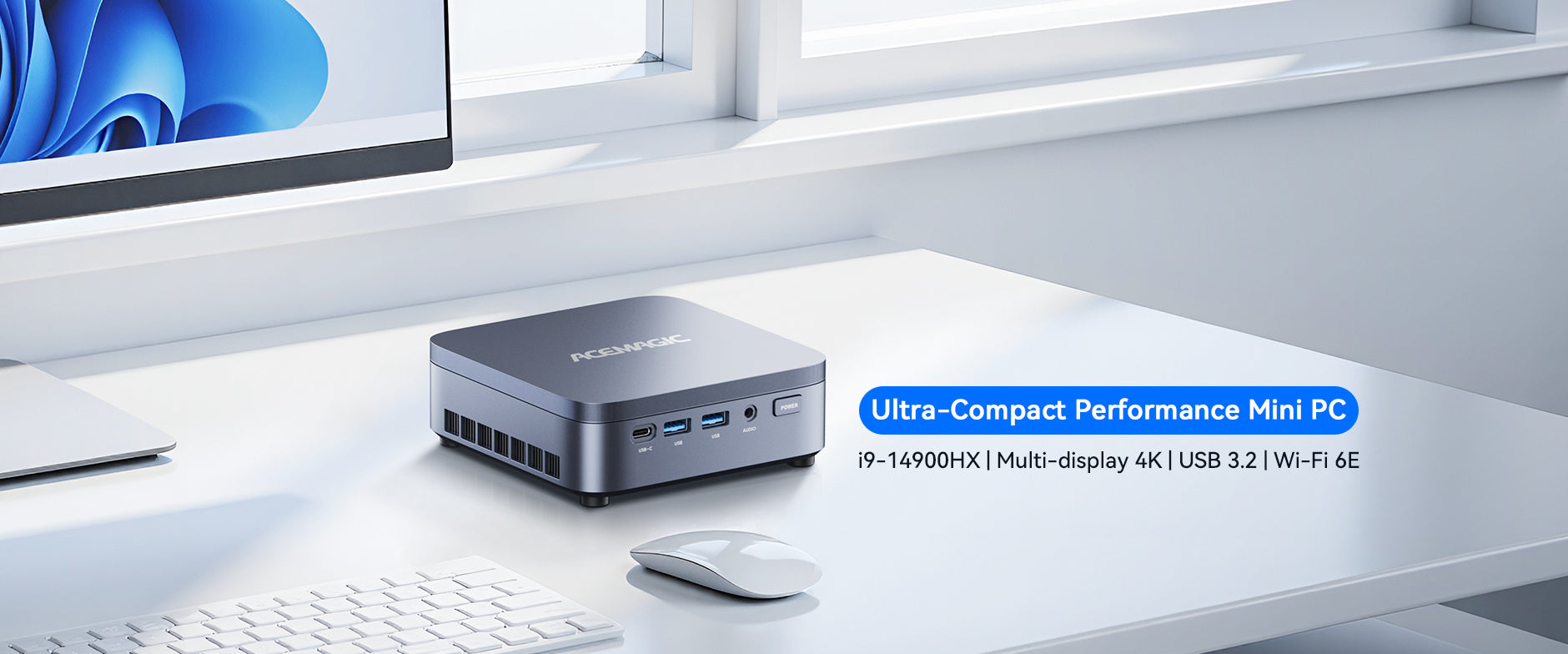

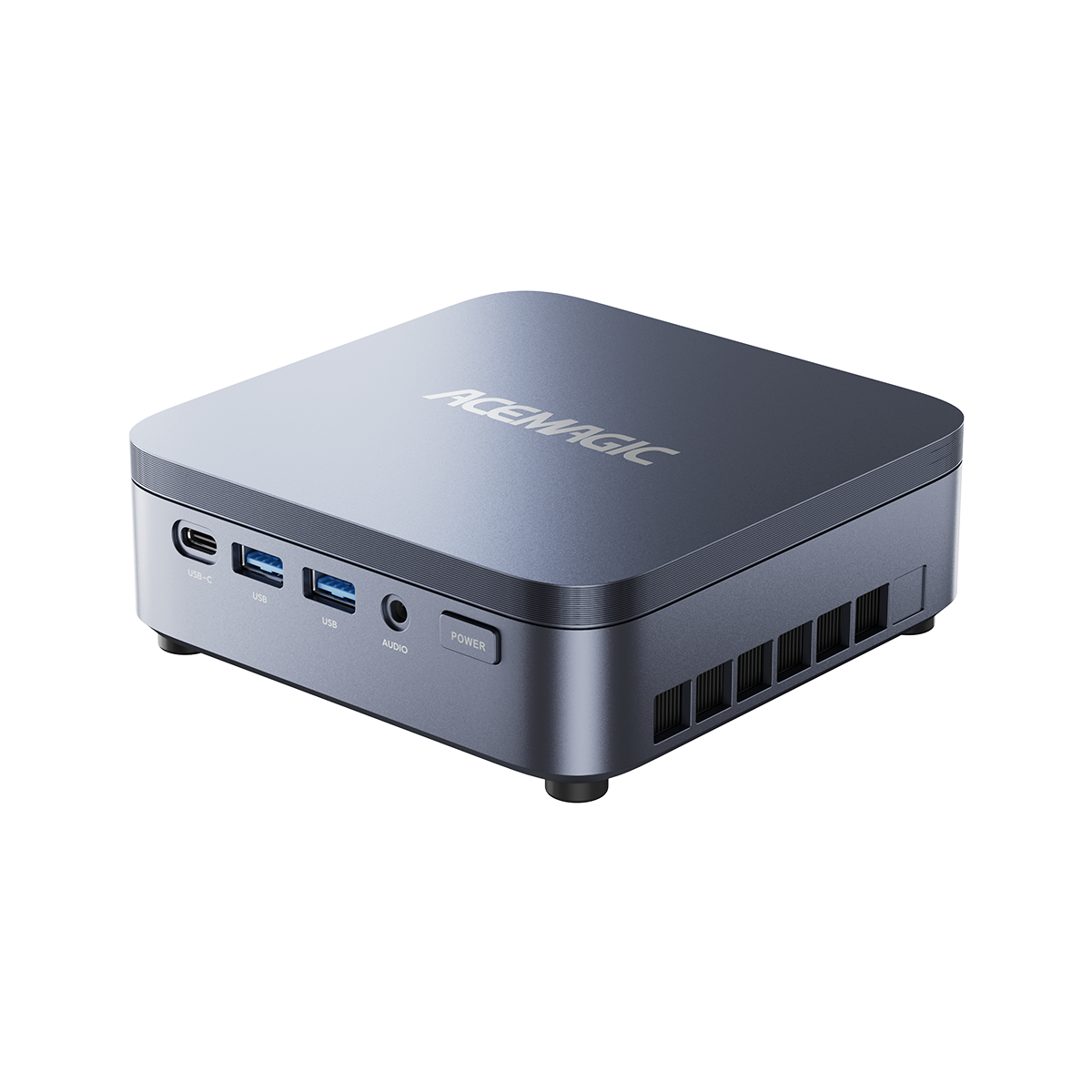

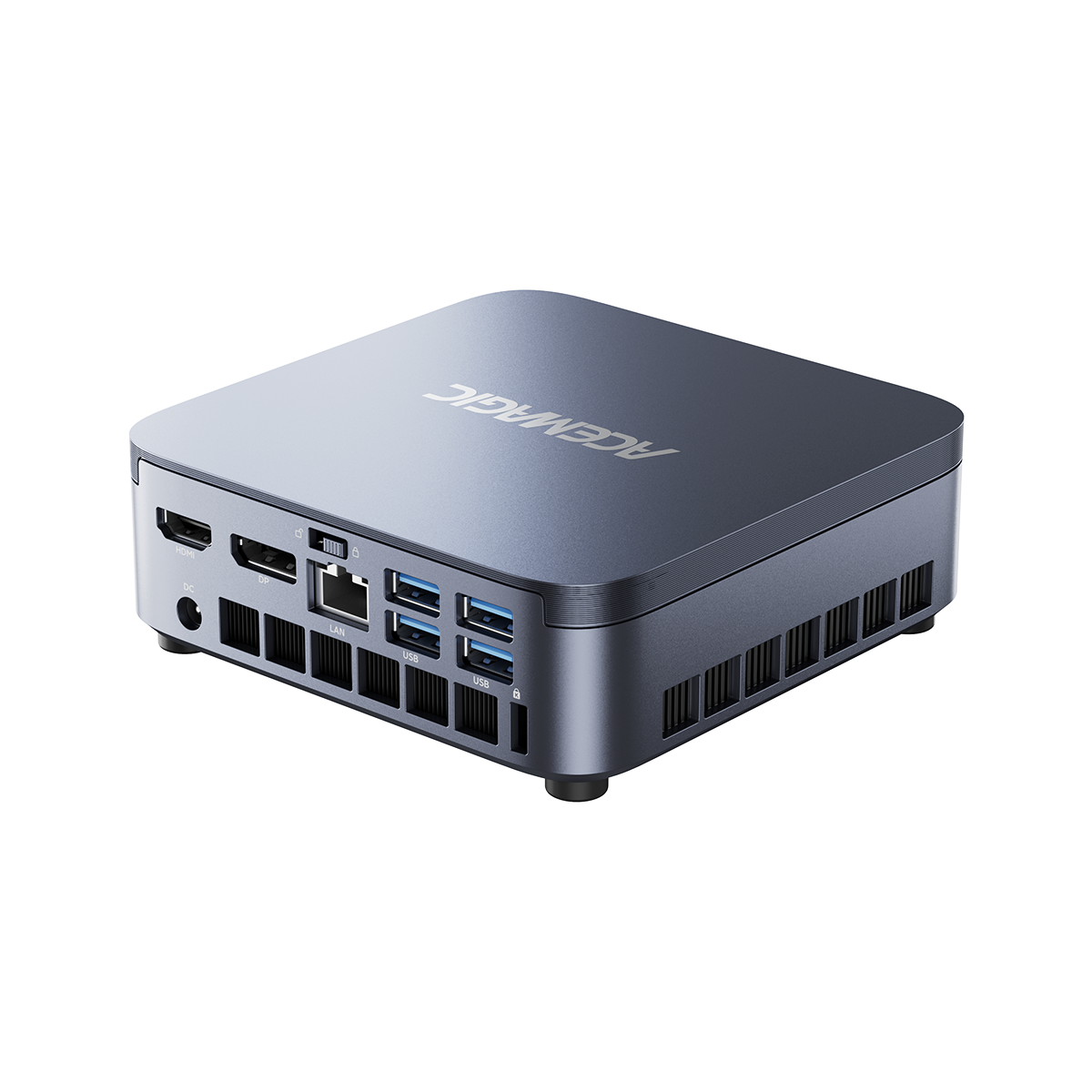

xACEMAGIC M5 mini PC is powered by the flagship 14th Gen Intel® Core™ i9-14900HX processor, delivering up to 55W of sustained performance within an ultra-compact chassis.
With a 24-core, 32-thread architecture, it handles intensive multitasking and professional workloads with ease and stability.
Measuring just 128 × 128 × 41.3 mm, the M5 features an upgraded, quiet cooling system with a full copper thermal design, ensuring consistent performance during long working sessions. Support for triple 4K displays, combined with rich I/O options, Wi-Fi 6E, and Gigabit Ethernet, creates a powerful and flexible workstation.

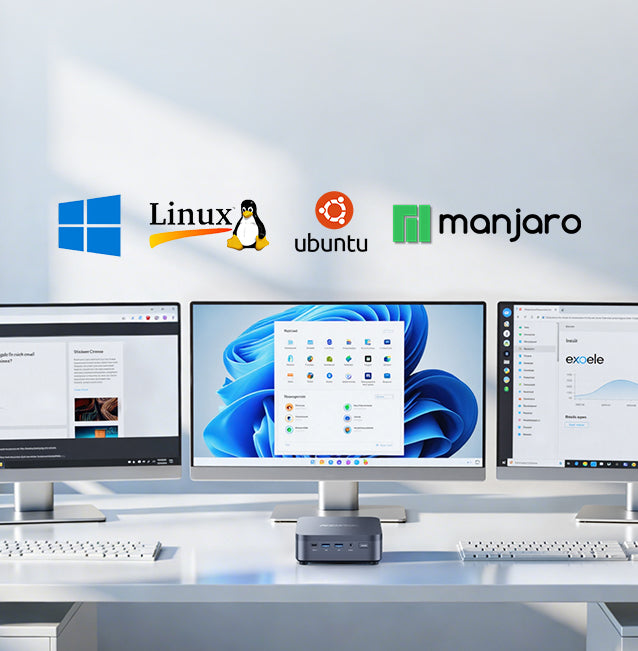

Pre-installed with Windows 11 Pro and supporting multiple operating systems such as Linux and Ubuntu, the Matrix Mini M5 also allows quick upgrades for memory and SSD.
A flagship Mini PC designed for business, remote work, and high-performance productivity.

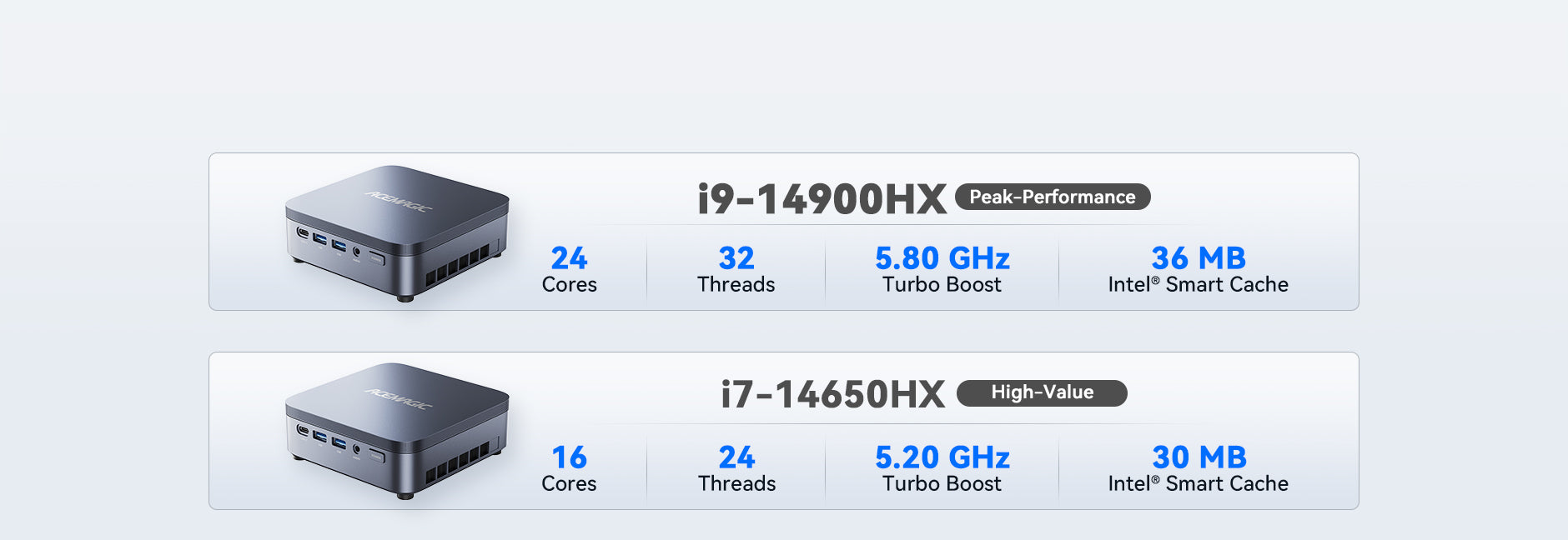

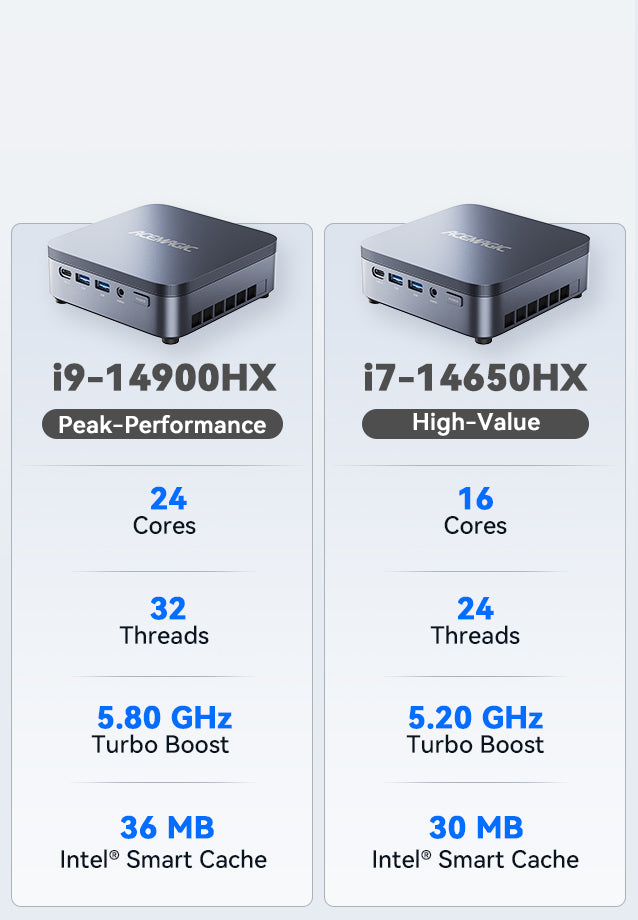

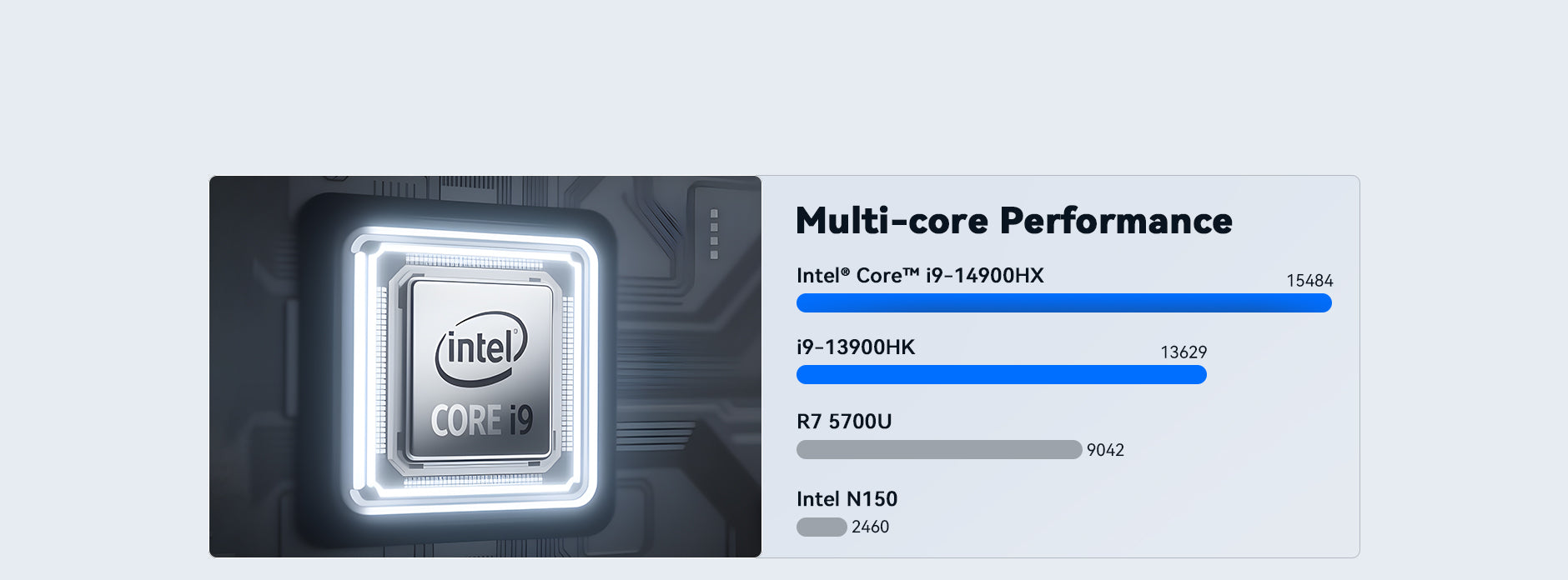

Intel® Core™ i9-14900HX
x| Processor | Intel® Core™ i9-14900HX Processor, 24 Cores / 32 Threads, Intel 7 Process Technology, 36MB Intel® Smart Cache, Base Clock Speed: 2.2GHz, Maximum Turbo Boost Frequency: 5.8GHz |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum dynamic frequency: 1.65GHz, Execution units: 32) |
| Memory | 32GB (2*16GB) DDR4 3200MHz Dual Channel DDR4 SO-DIMM Slots*2 (up to 64GB, DDR4 3200MHz) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (M.2 2280 SATA&NVMe PCIe3.0×4 Slot x1; M.2 2280 NVMe PCIe4.0×4 Slot x1; Maximum capacity of 2TB per SSD, 4TB total.) |
| Wireless Connectivity | WiFi 6E+BT5.2 |
| Video Output |
HDMI 2.0 ×1 (4K@60Hz) |
| Audio Output | 3.5mm Audio Jack *1 |
| Ports & Buttons | RJ45 Gigabit Ethernet Port (10/100/1000 Mbps, auto-negotiation) x1 USB3.2 Gen2 Type-A Port x2 USB3.2 Gen1 Type-A Port x4 USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz) DC IN *1 HDMI 2.0 *1 DP1.4b x1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A, DC Header 5.5*2.1m |
| System | Windows 11 PRO |
| Dimensions | 128 x 128 x 41,3mm |
Intel® Core™ i7-14650HX
x| Processor | Intel® Core™ i7-14650HX Processor 16 Cores/24 Threads, Intel 7 Process Technology 30MB Intel® Smart Cache, Base Clock Speed: 2.2GHz Maximum Turbo Boost Frequency: 5.2GHz |
| Graphics | Intel® UHD Graphics for 14th Gen Intel® Processors (Maximum dynamic frequency: 1.6GHz, Execution units: 16) |
| Memory | 32GB (2*16GB) DDR4 3200MHz Dual Channel DDR4 SO-DIMM Slots*2 (up to 64GB, DDR4 3200MHz) |
| Storage | 1TB M.2 2280 NVMe PCIe4.0×4 SSD (M.2 2280 SATA&NVMe PCIe3.0×4 Slot x1; M.2 2280 NVMe PCIe4.0×4 Slot x1; Maximum capacity of 2TB per SSD, 4TB total.) |
| Wireless Connectivity | WiFi 6E+BT5.2 |
| Video Output |
HDMI 2.0 ×1 (4K@60Hz) |
| Audio Output | 3.5mm Audio Jack *1 |
| Ports & Buttons | RJ45 Gigabit Ethernet Port (10/100/1000 Mbps, auto-negotiation) x1 USB3.2 Gen2 Type-A Port x2 USB3.2 Gen1 Type-A Port x4 USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz) DC IN *1 HDMI 2.0 *1 DP1.4b x1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A, DC Header 5.5x2.1m |
| System | Windows 11 PRO |
| Dimensions | 128 x 128 x 41,3mm |
Matrix Mini M5

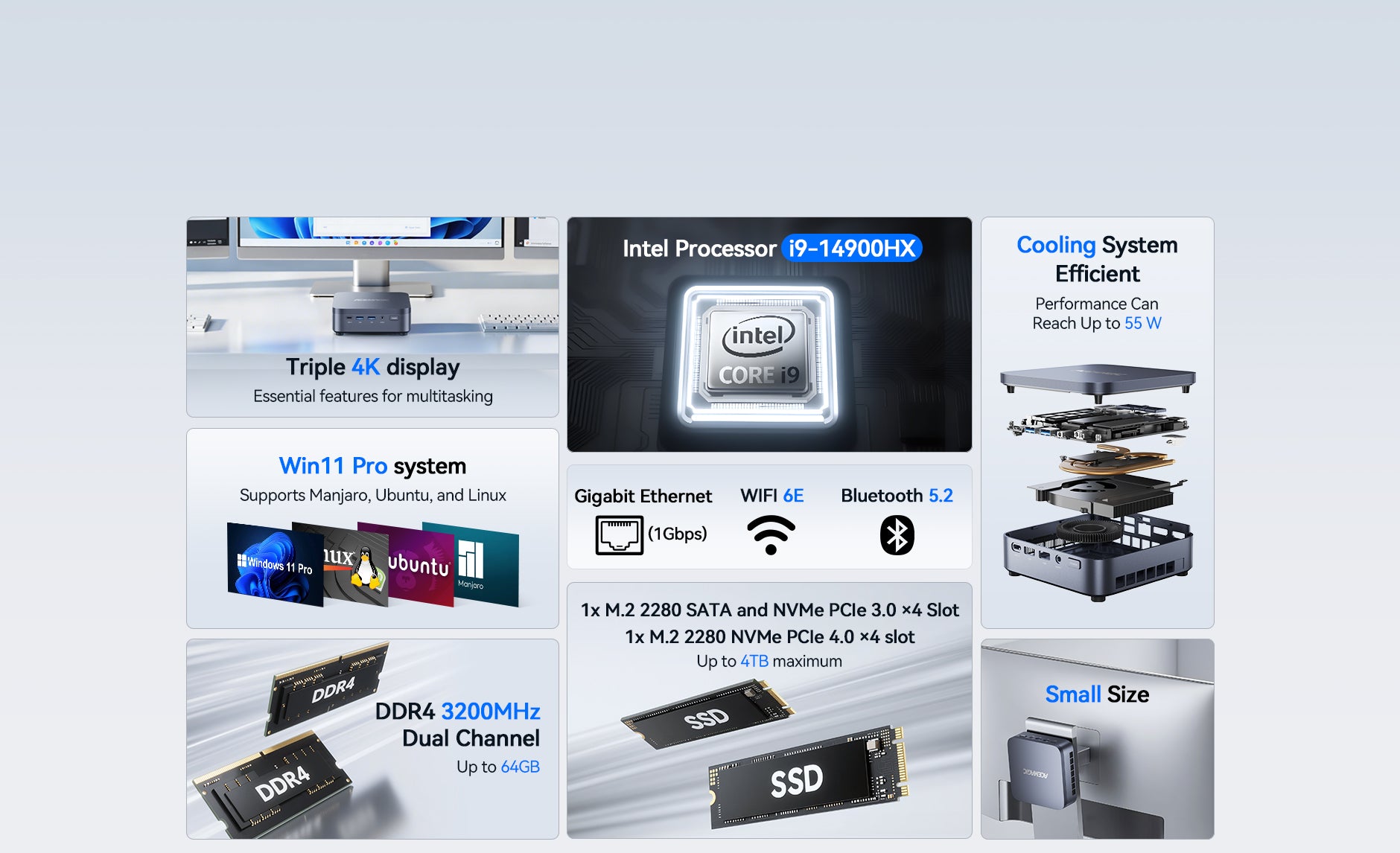

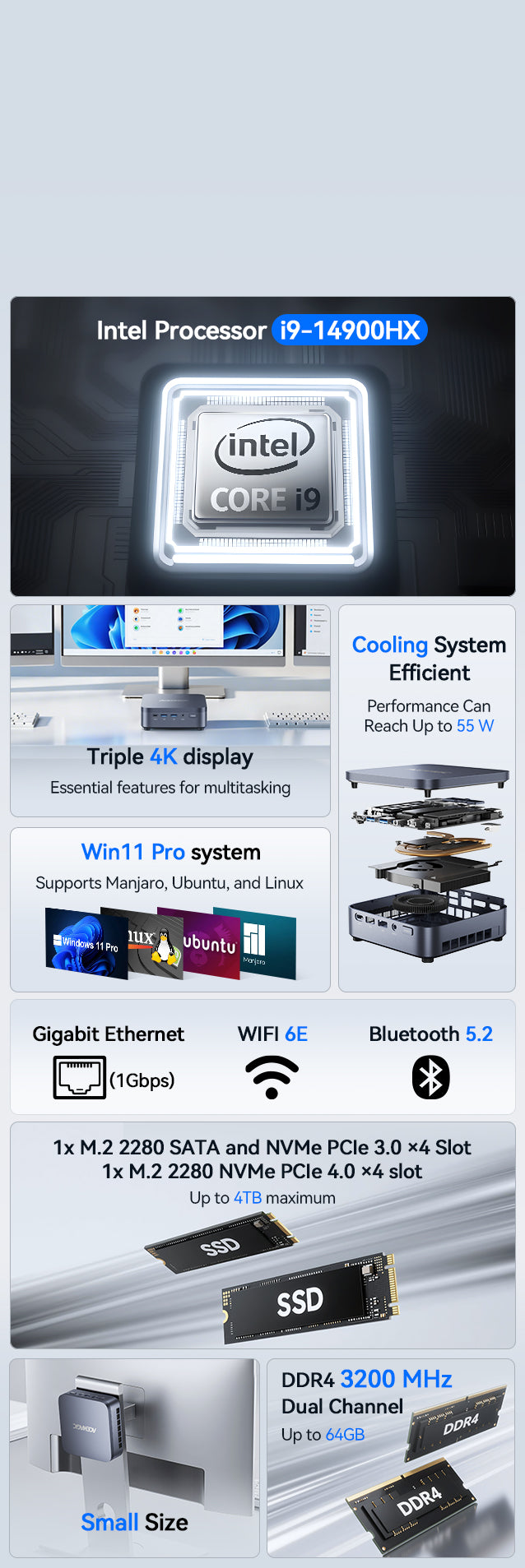

Why is the Mini PC M5 the ideal choice for creative work and office tasks?

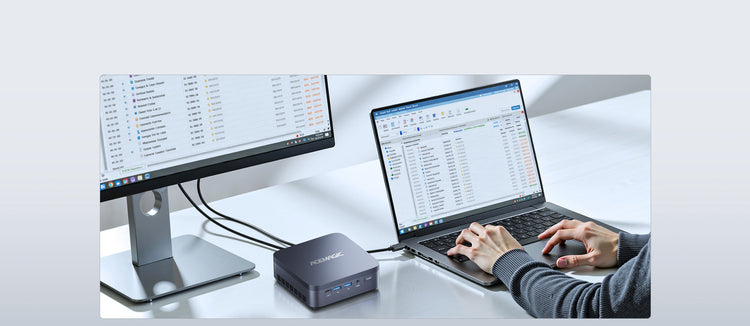

Flexible options designed for everyday office tasks and professional creative workflows

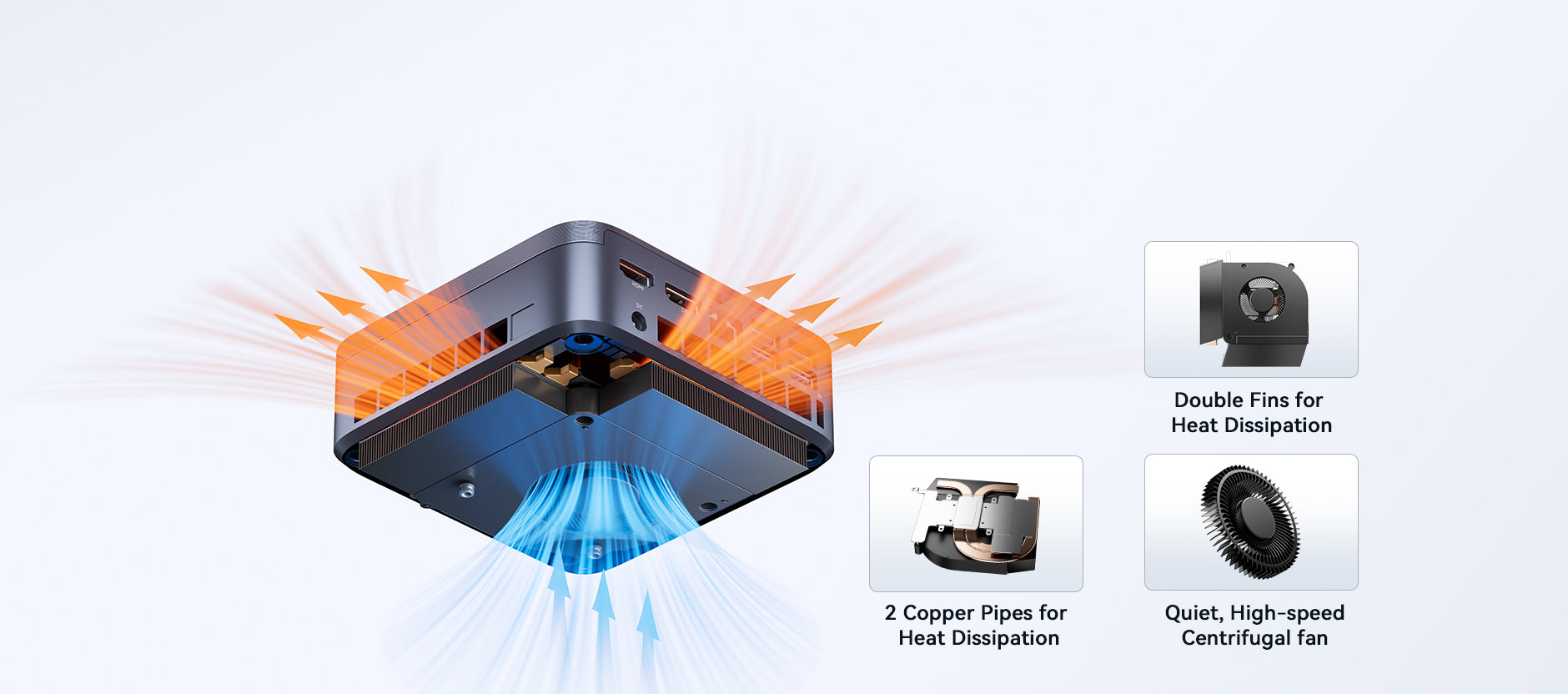

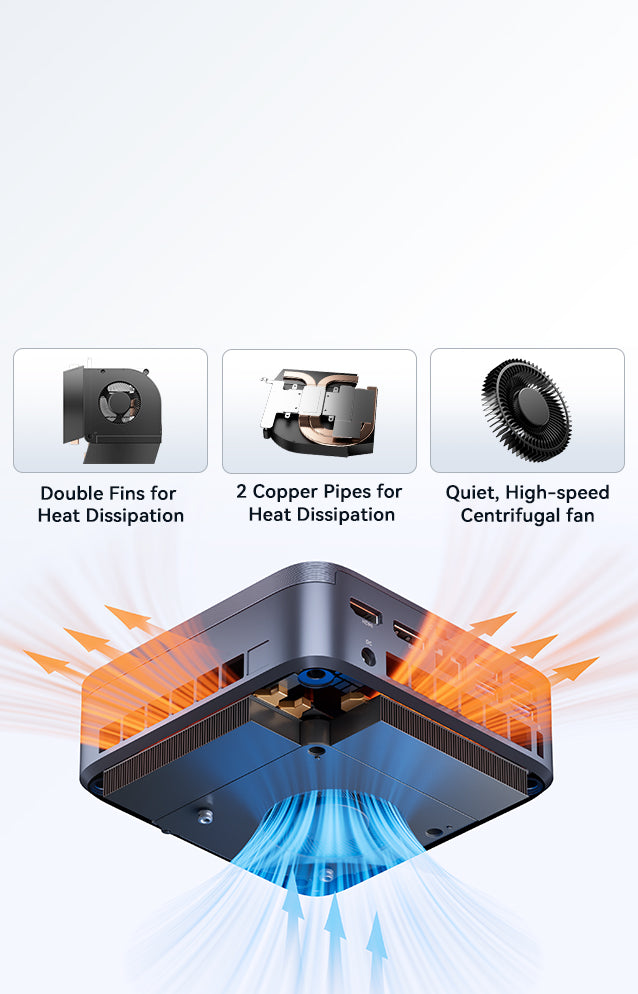

Advanced cooling for sustained performance

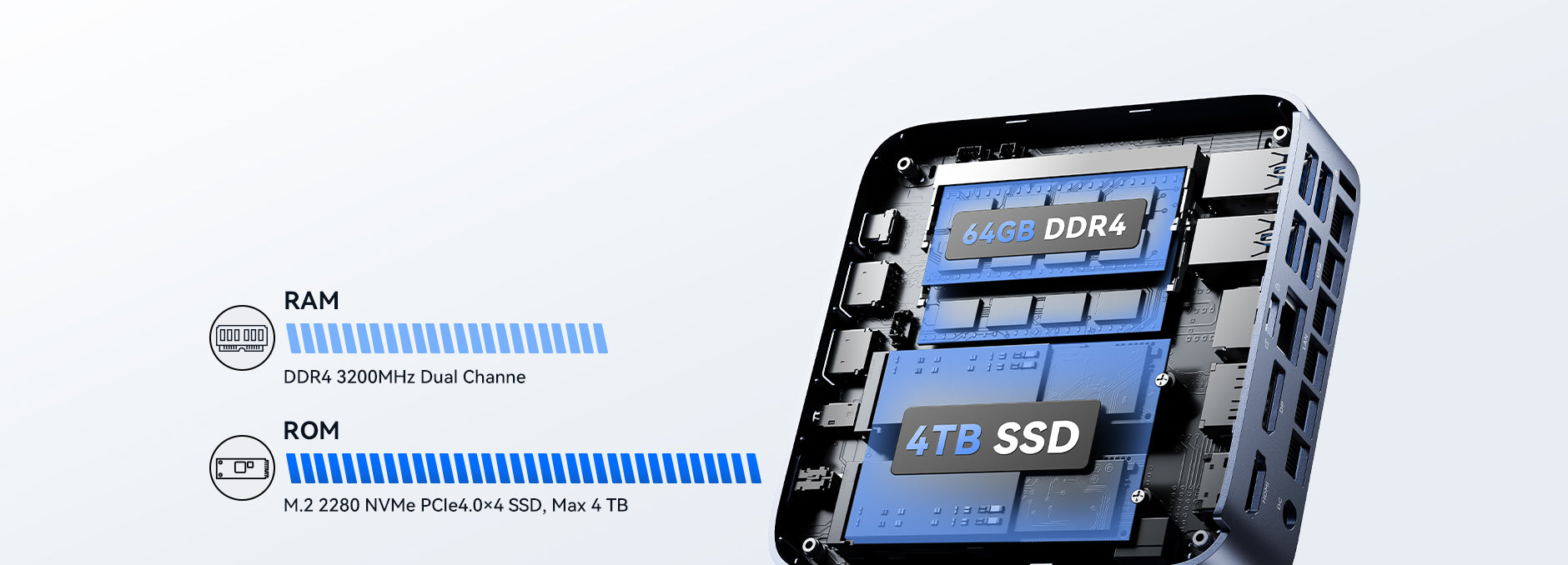

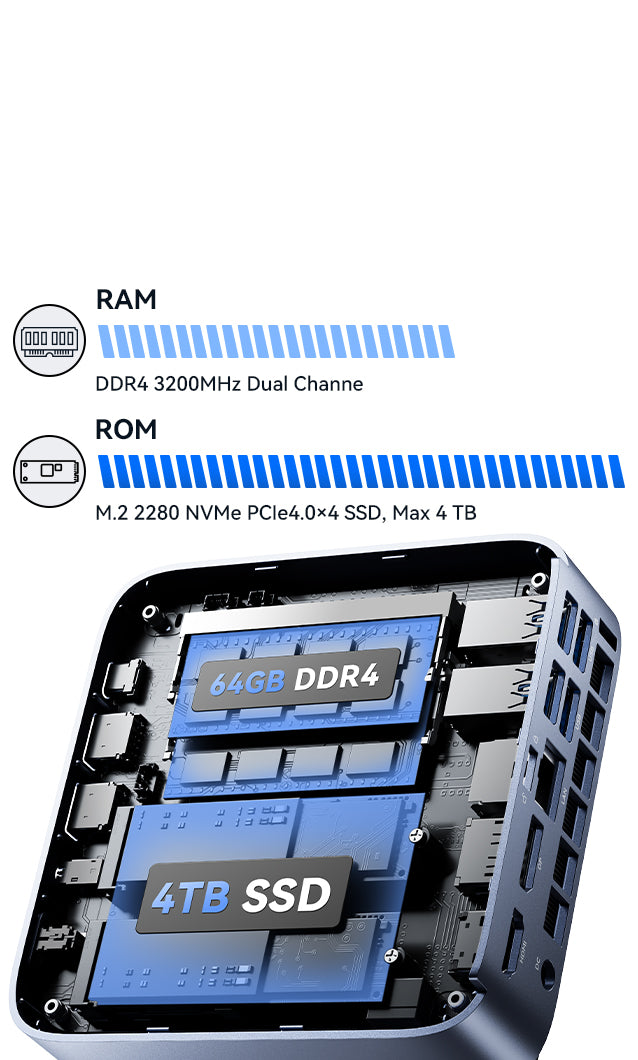

Flexible memory & storage options

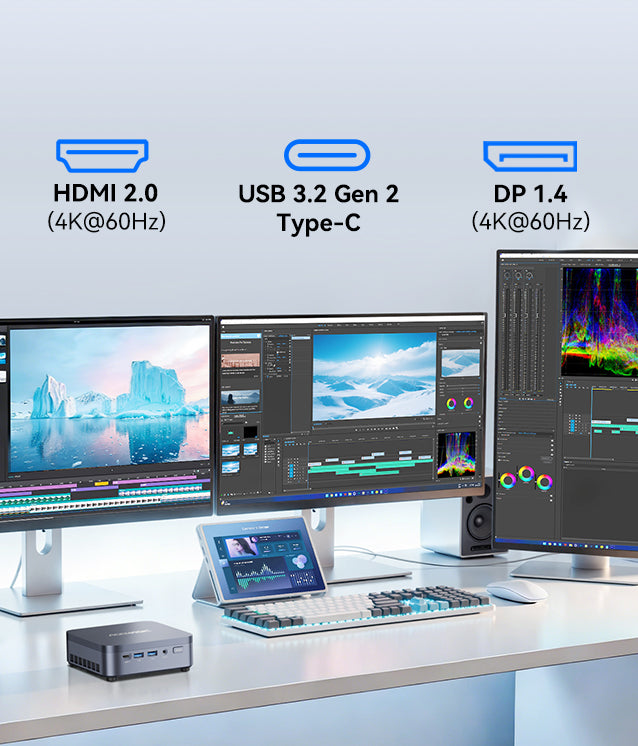

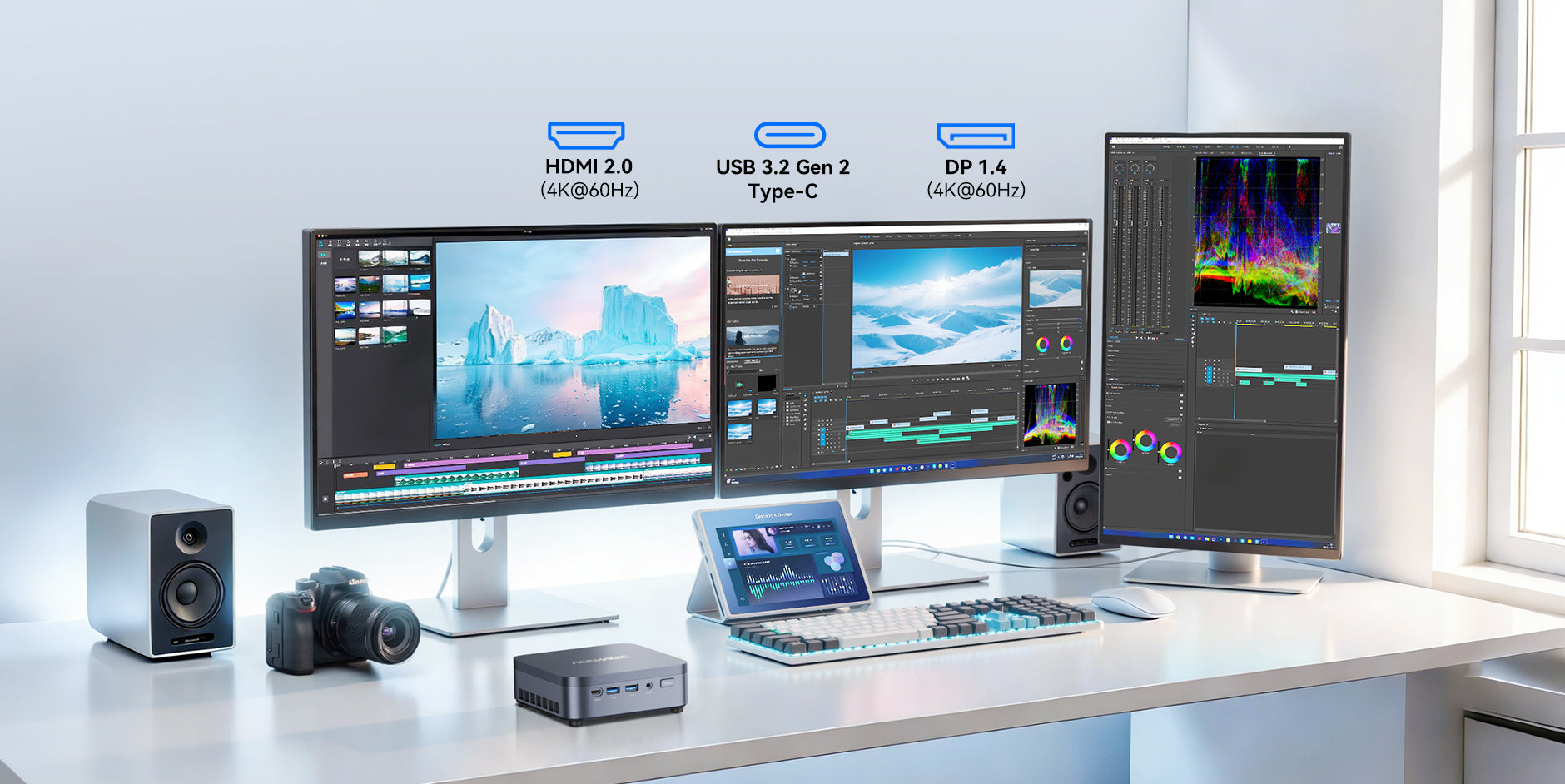

Three 4K displays for greater work efficiency
Provide users with the right to make different choices

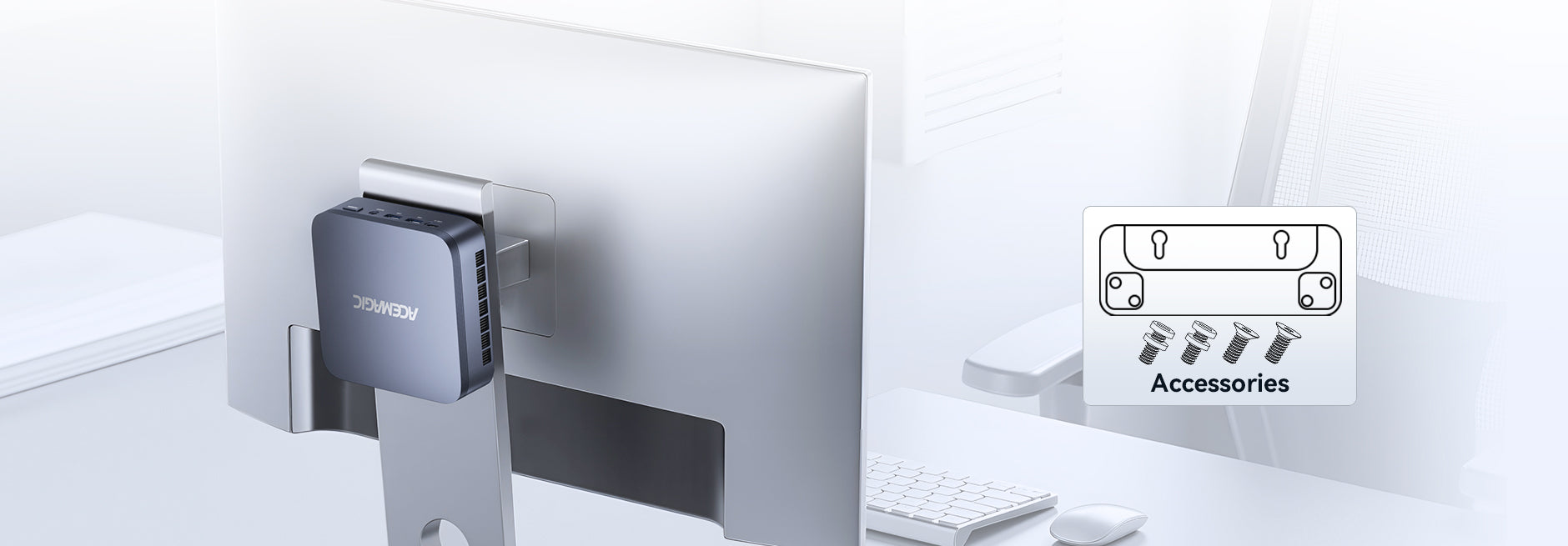

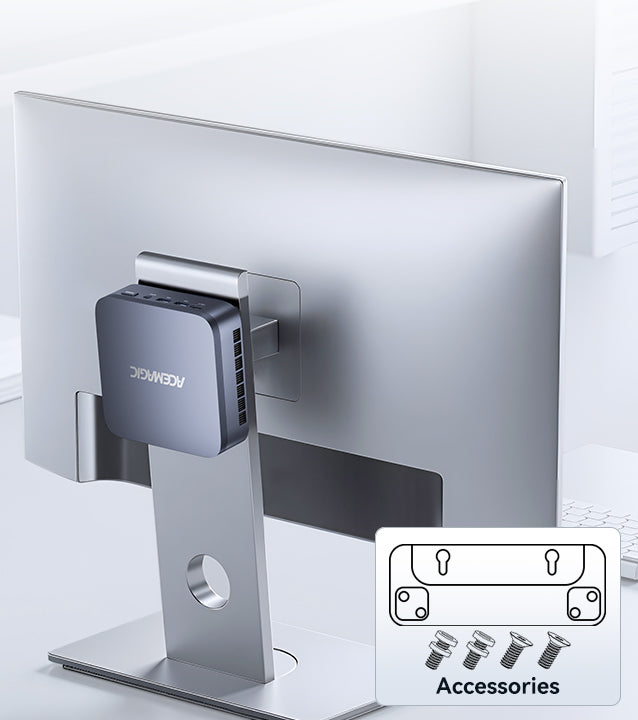

Simple and versatile, wall-mounted design

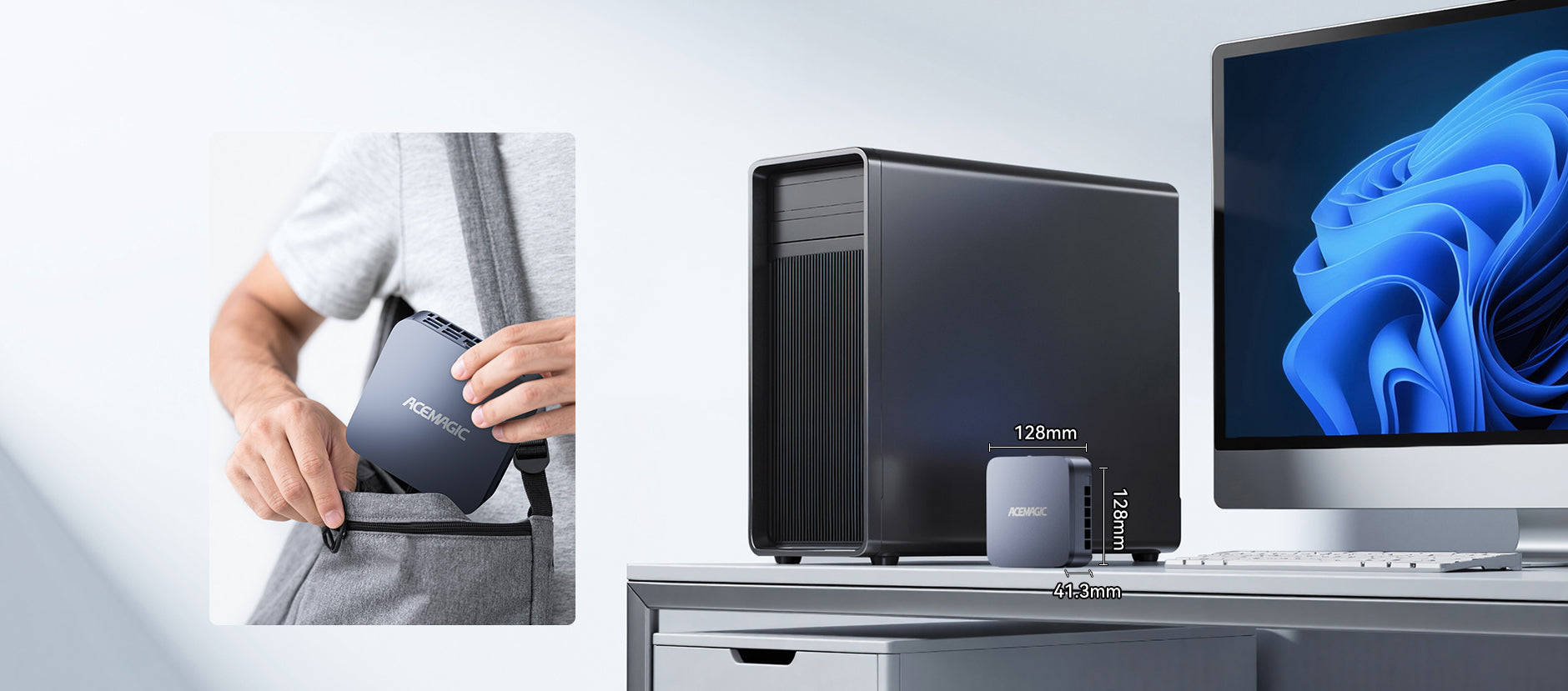

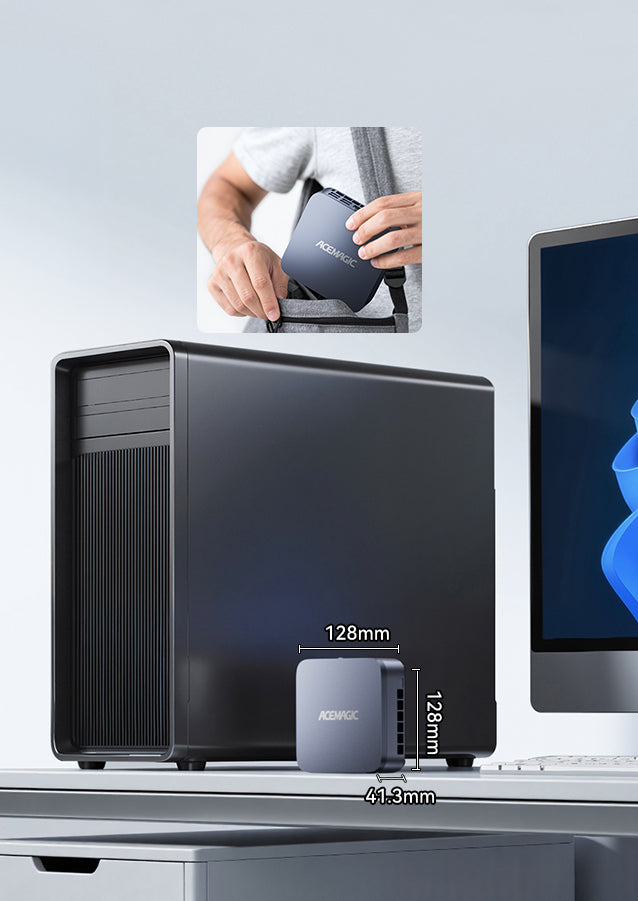

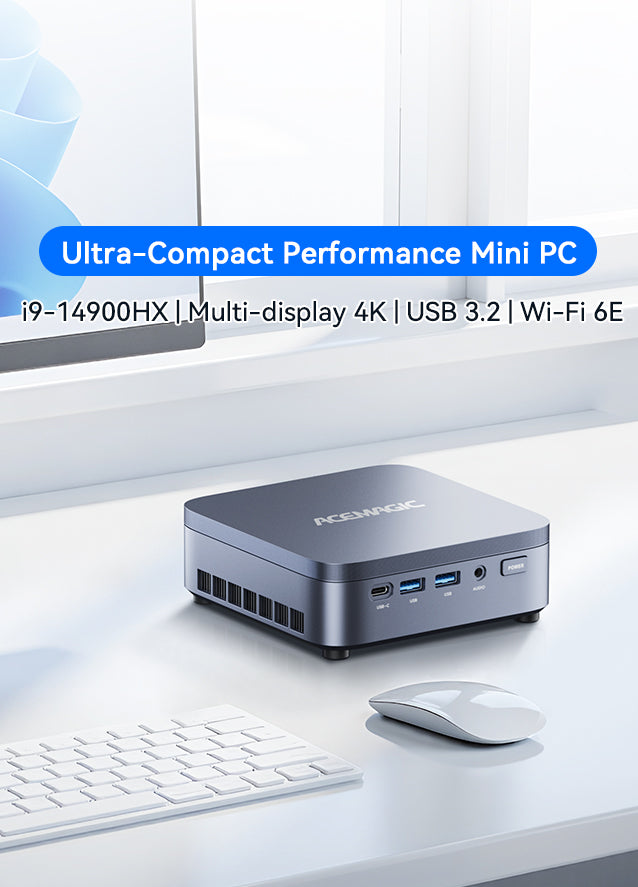

Compact design, without compromising performance
2-year warranty

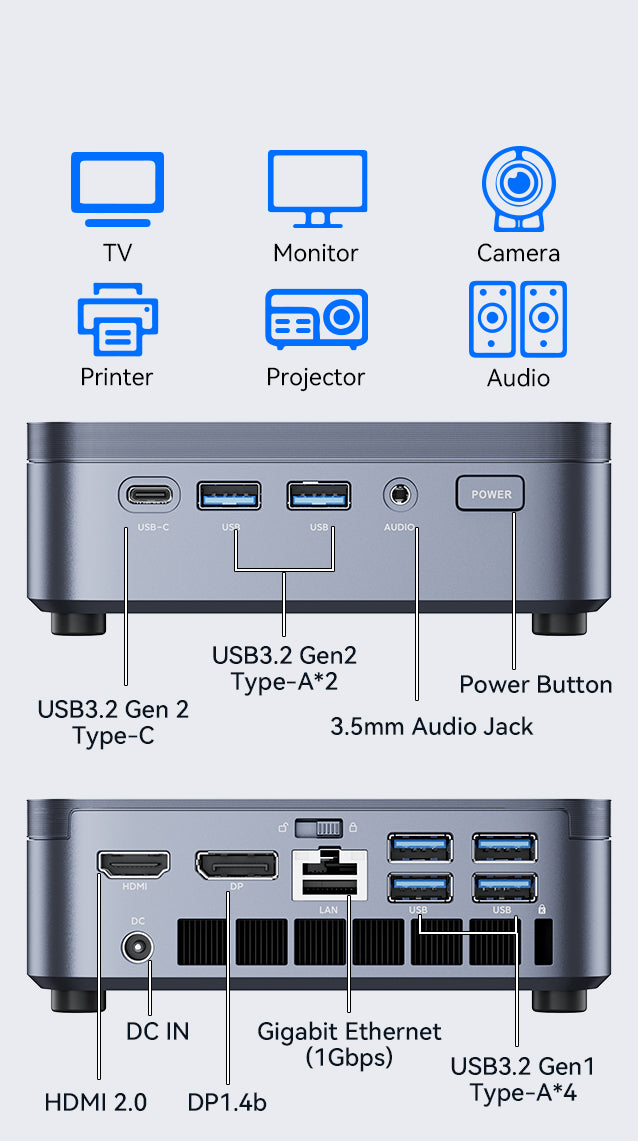

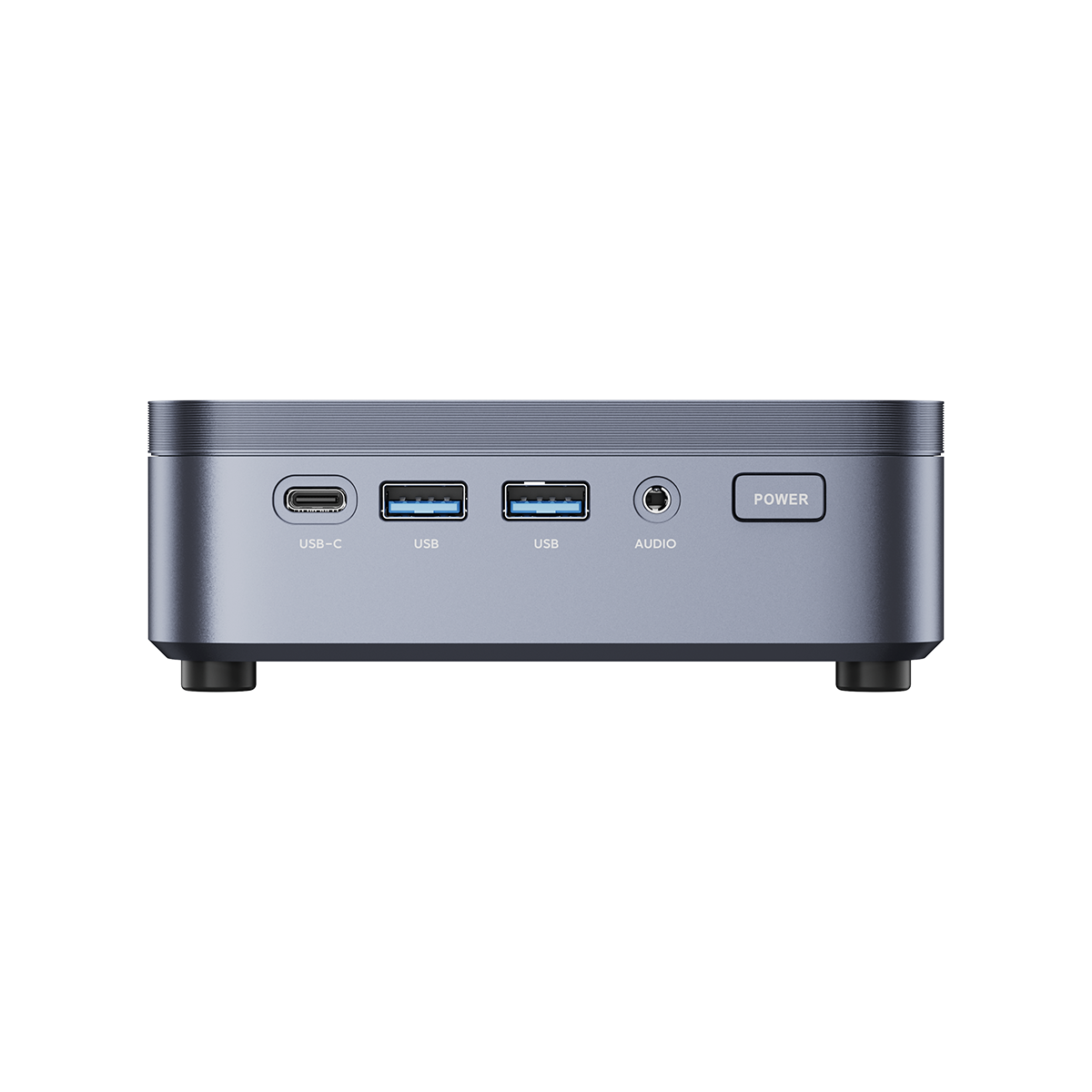

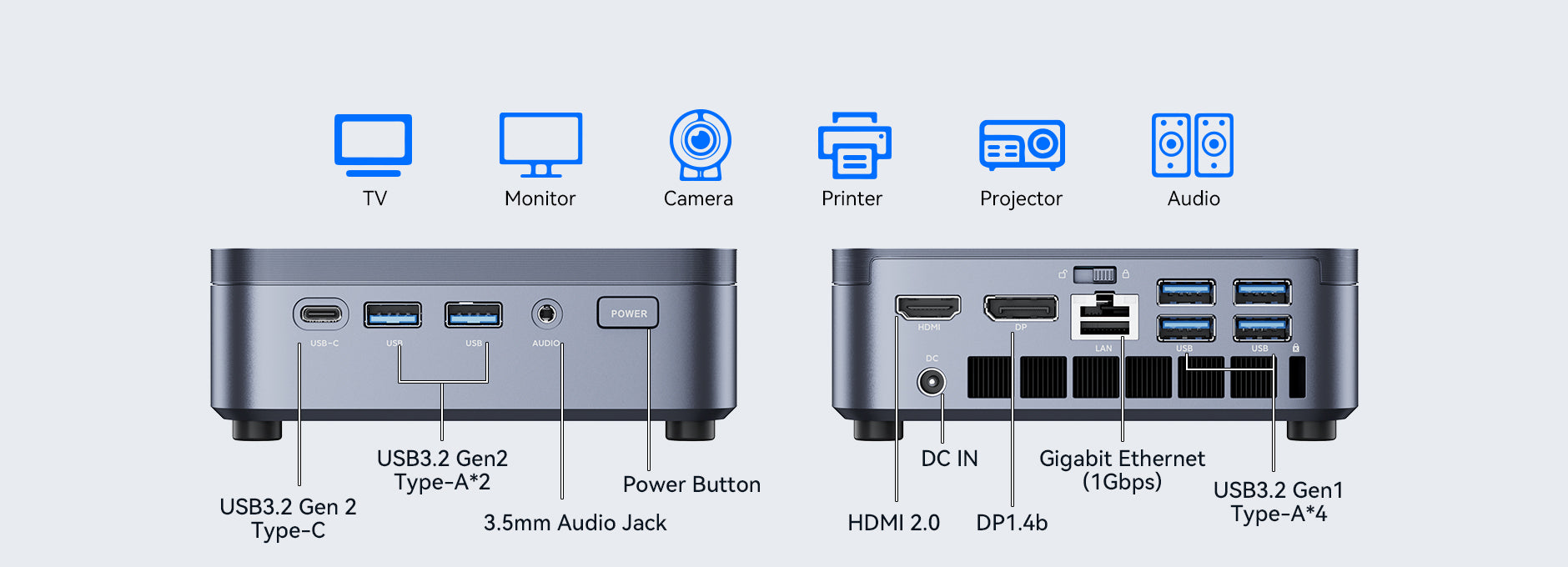

Rich interfaces, easy to expand

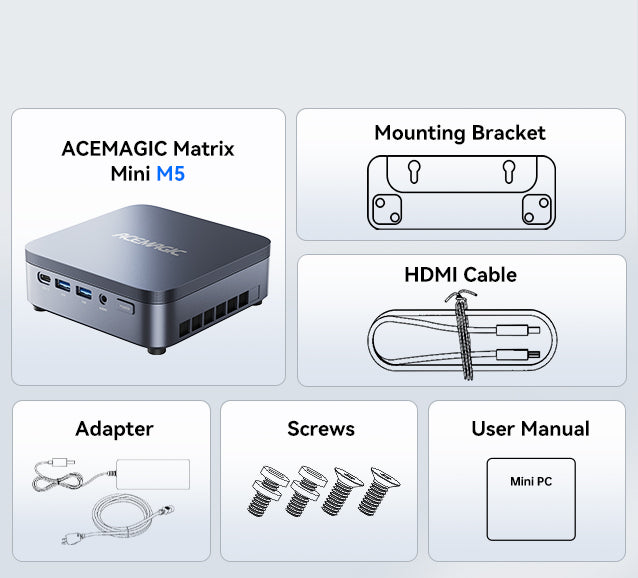

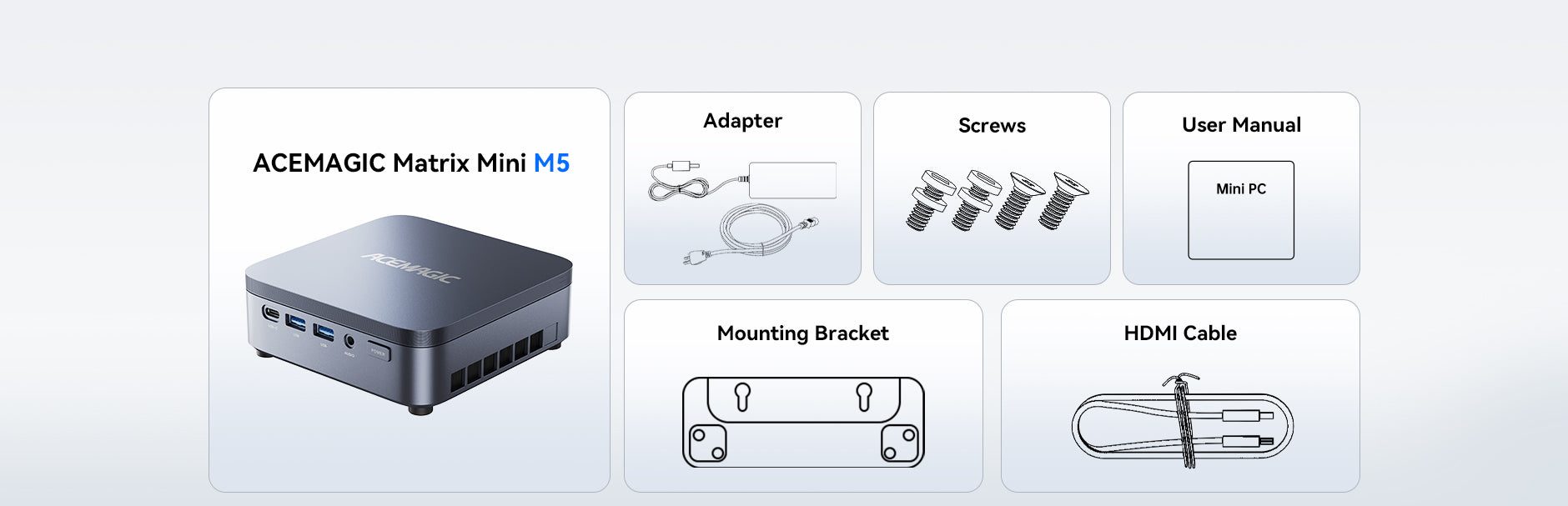

What's in the box?
