Description
xAMD Ryzen™ 7 H 255
x|
Processor |
AMD Ryzen™ 7 H 255, 8 Cores/16 Threads, 3.8 GHz–4.9 GHz, Zen 4 Architecture, TSMC 4nm FinFET Process Technology, 16 MB L3 Cache, TDP: 65W |
| Graphics | AMD Radeon™ 780M (Graphics Clock Speed: 2700 MHz, Number of Graphics Cores: 12) |
| Memory | 24GB (12GB × 2) LPDDR5 6400MT/s, Not Expandable or Upgradeable |
| Storage |
1TB M.2 2280 NVMe PCIe 4.0 x4 SSD 3x M.2 2280 Slots, 3 Drive Slots Support M.2 NVMe PCIe 4.0 x4 SSDs, Up to 6 TB Does Not Support SATA SSDs |
|
Wireless Connectivity |
WiFi 6E Bluetooth 5.2 |
| Video Output | HDMI 2.1 x1 (8K@60Hz） USB4 Type-C x2 DP2.1 x1 (8K@60Hz) |
| Audio Output | 3.5 mm Audio Jack ×1 |

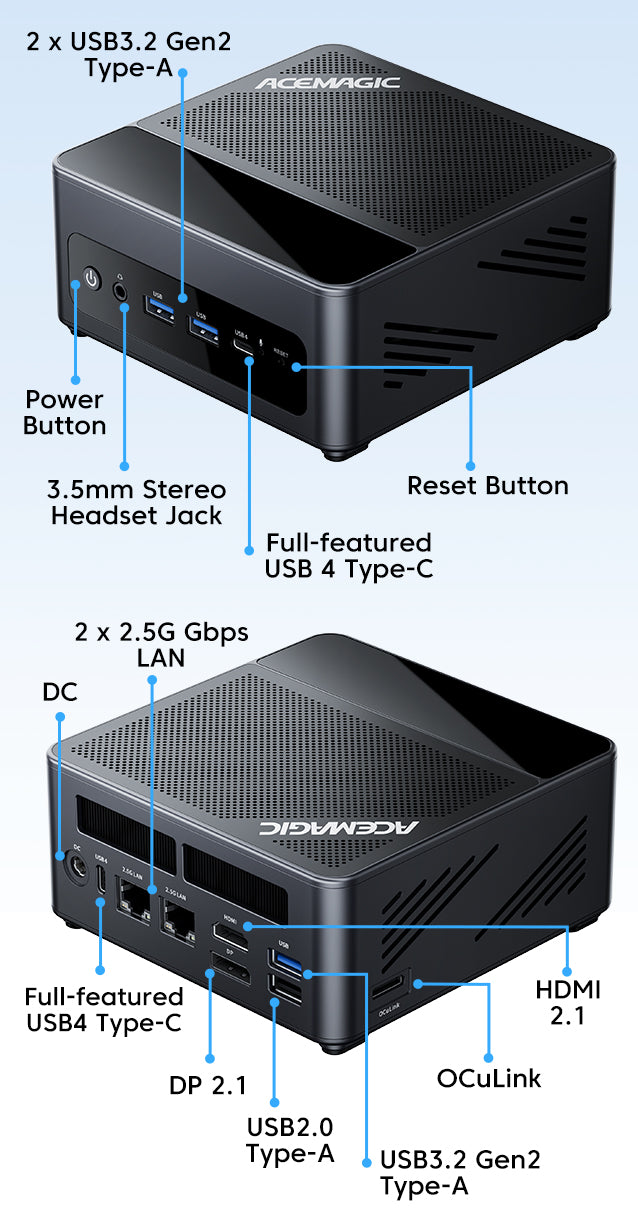

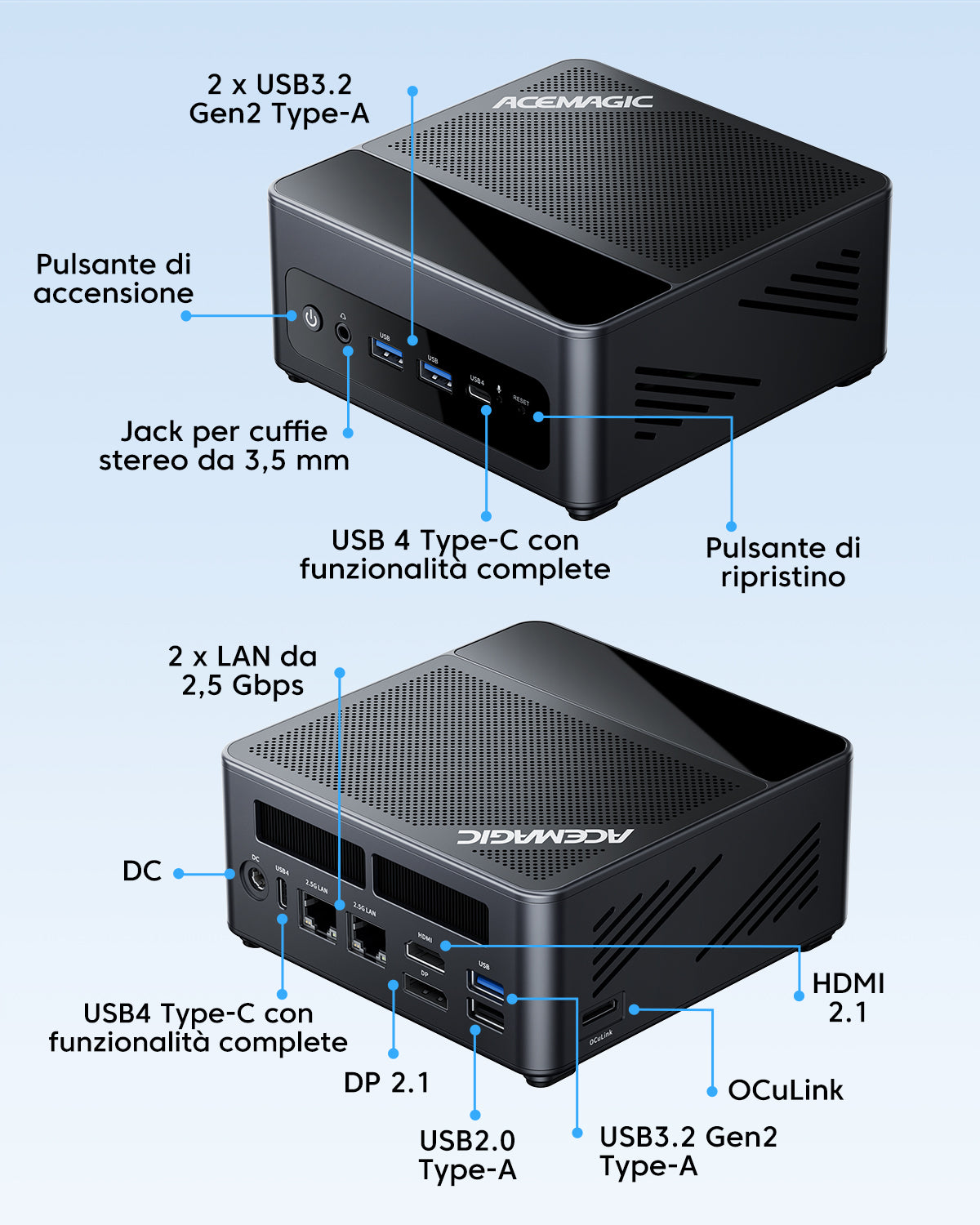

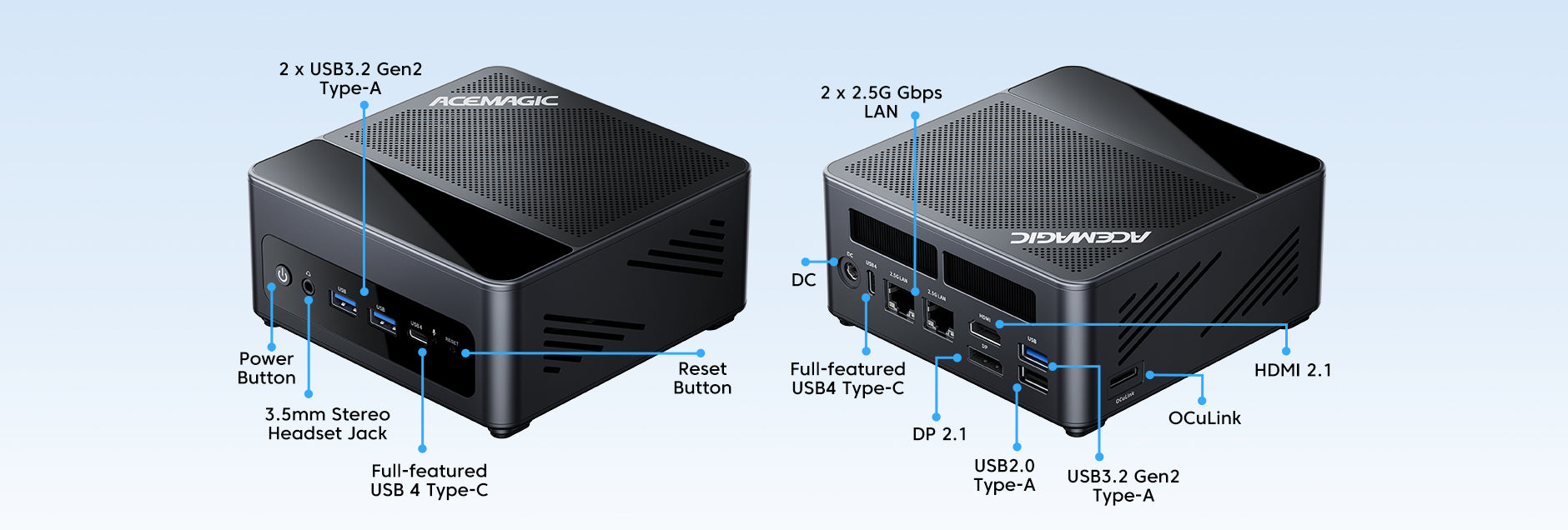

| Ports & Buttons | 2 x 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports 2 x USB 3.2 Gen 2 Type-A Ports (10 Gbps) – Front Panel 1 x USB 3.2 Gen 2 Type-A Port (10 Gbps) – Rear Panel 1 x USB 2.0 Type-A Port – Rear Panel 2 x USB4 Type-C (Supports DP 1.4, 4K@60Hz, Up to 40Gbps Data Transfer, PD Output) 1 x DC IN 1 x HDMI 2.1 1 x DP 2.1 1 x 3.5mm Audio Jack 1 x Power Button 1 x OCuLink Port (Supports External Discrete Graphics) |
| Power Supply | DC 19 V-6,3 A, 5.5 x 2.5 mm DC Connector |
| System | Windows 11 Pro |
| Dimensione | 130 × 132 × 62mm |
| Cooling System | Dual Fans (CPU Fan + System Fan) + Uniform Heat Dissipation Plate (VC), Maximum Power of 65 W |
| Feature | 1. OCuLink interface, with support for independent external graphics cards 2. Dual fans 3. Removable base for easy SSD upgrades 4. Support for 4 displays 5. Integrated high-performance AMD Ryzen 7 200 Series CPU 6. Dual 2.5 Gbps Ethernet ports 7. Dual USB4 Type-C Ports |

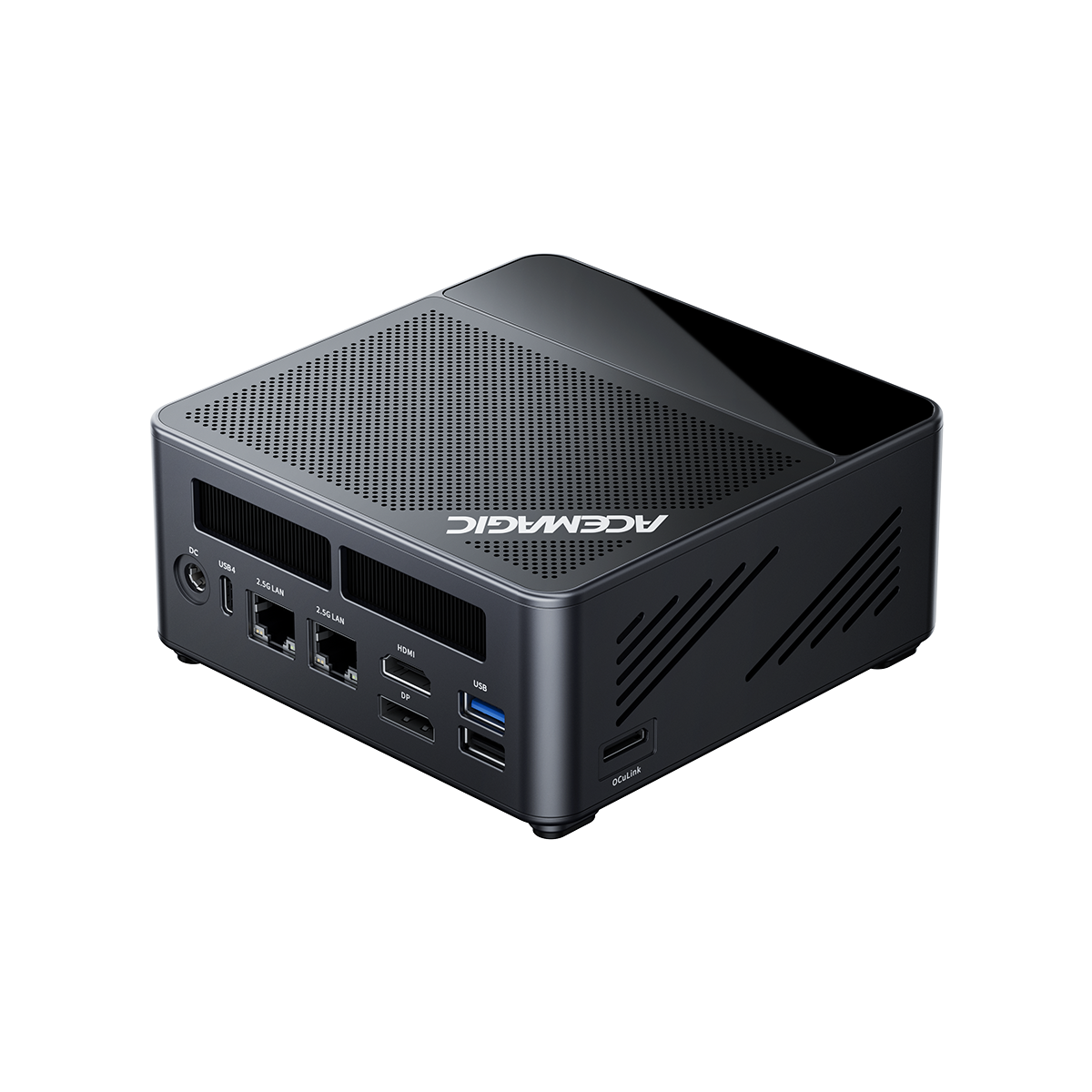

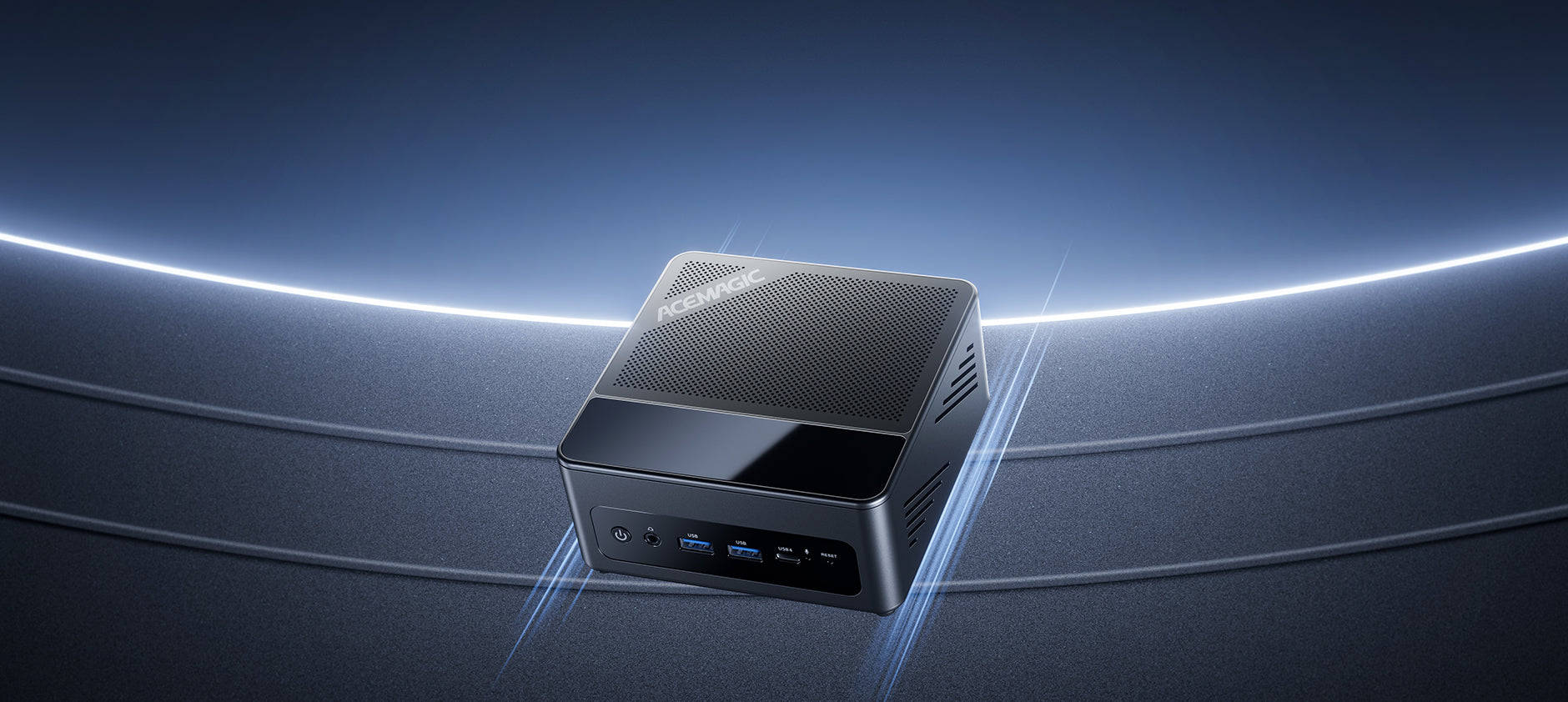

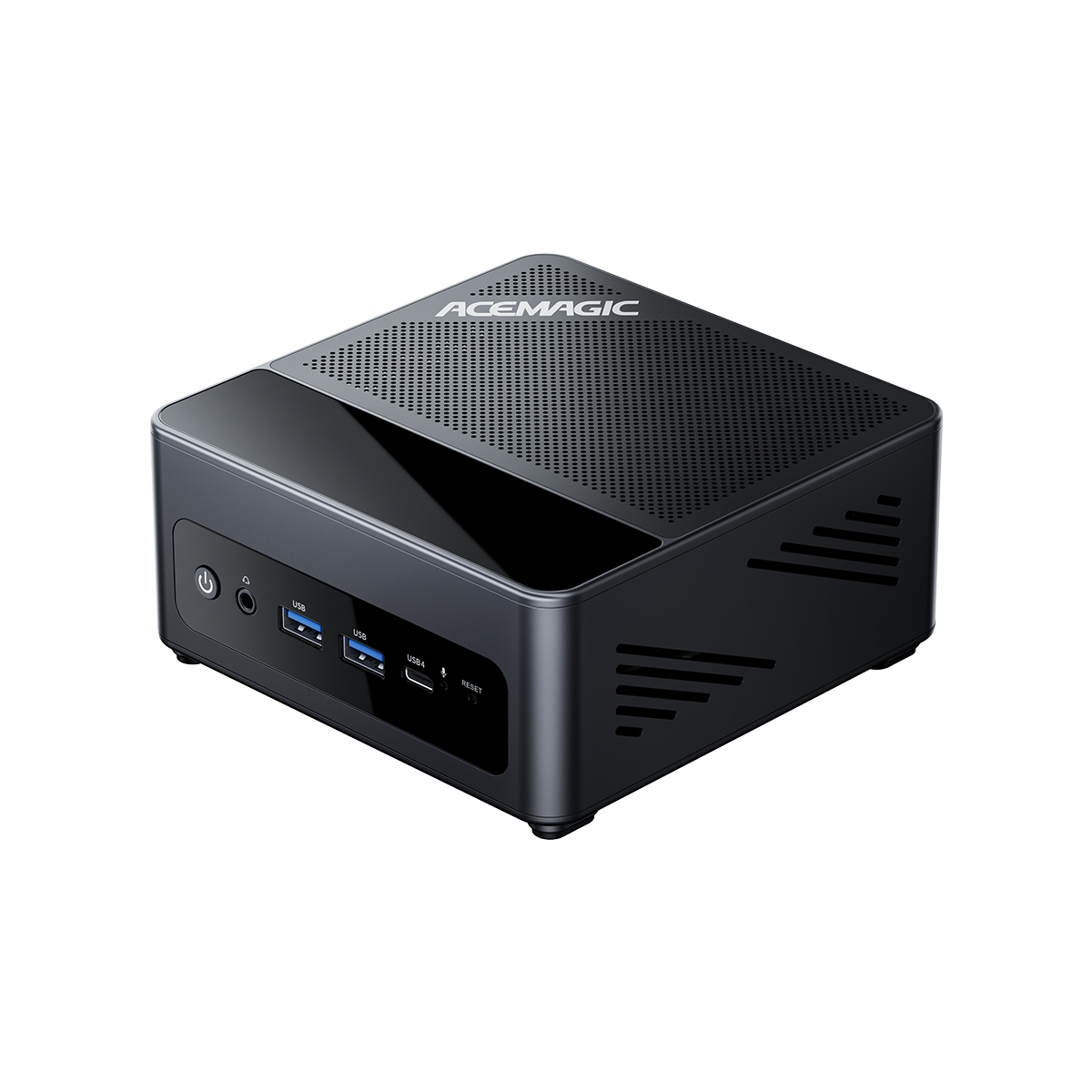

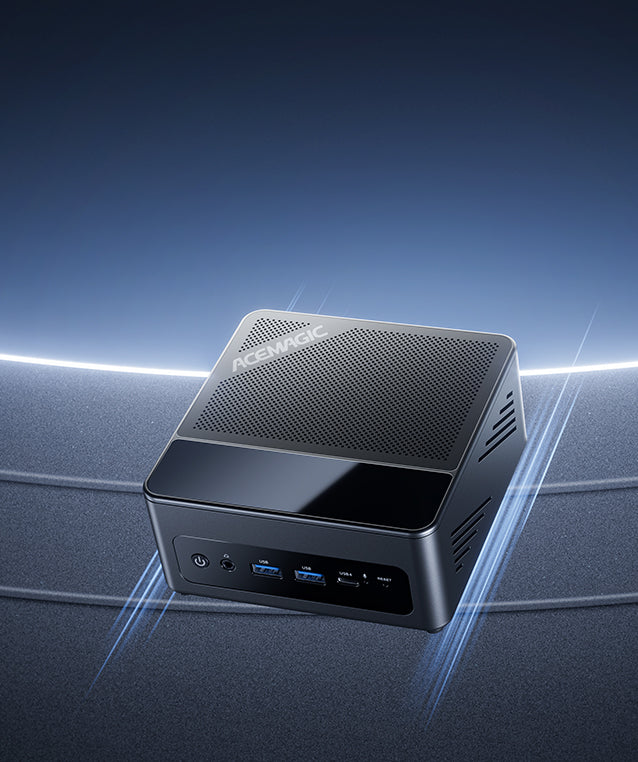

F5A H 255 MINI PC

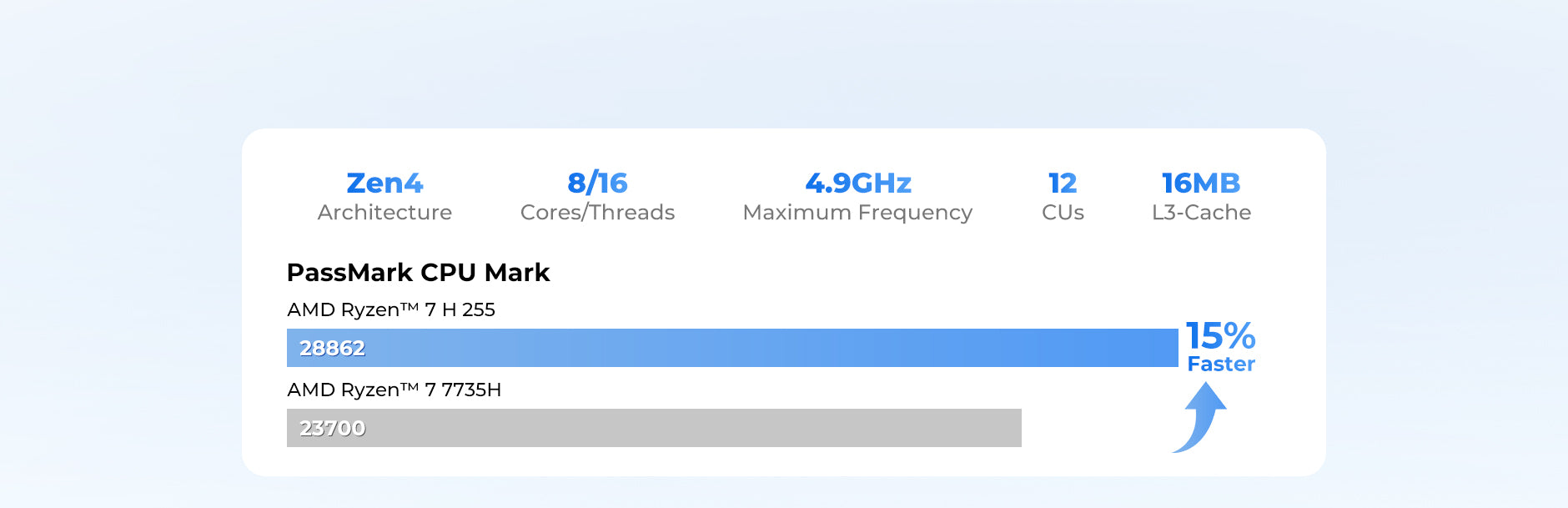

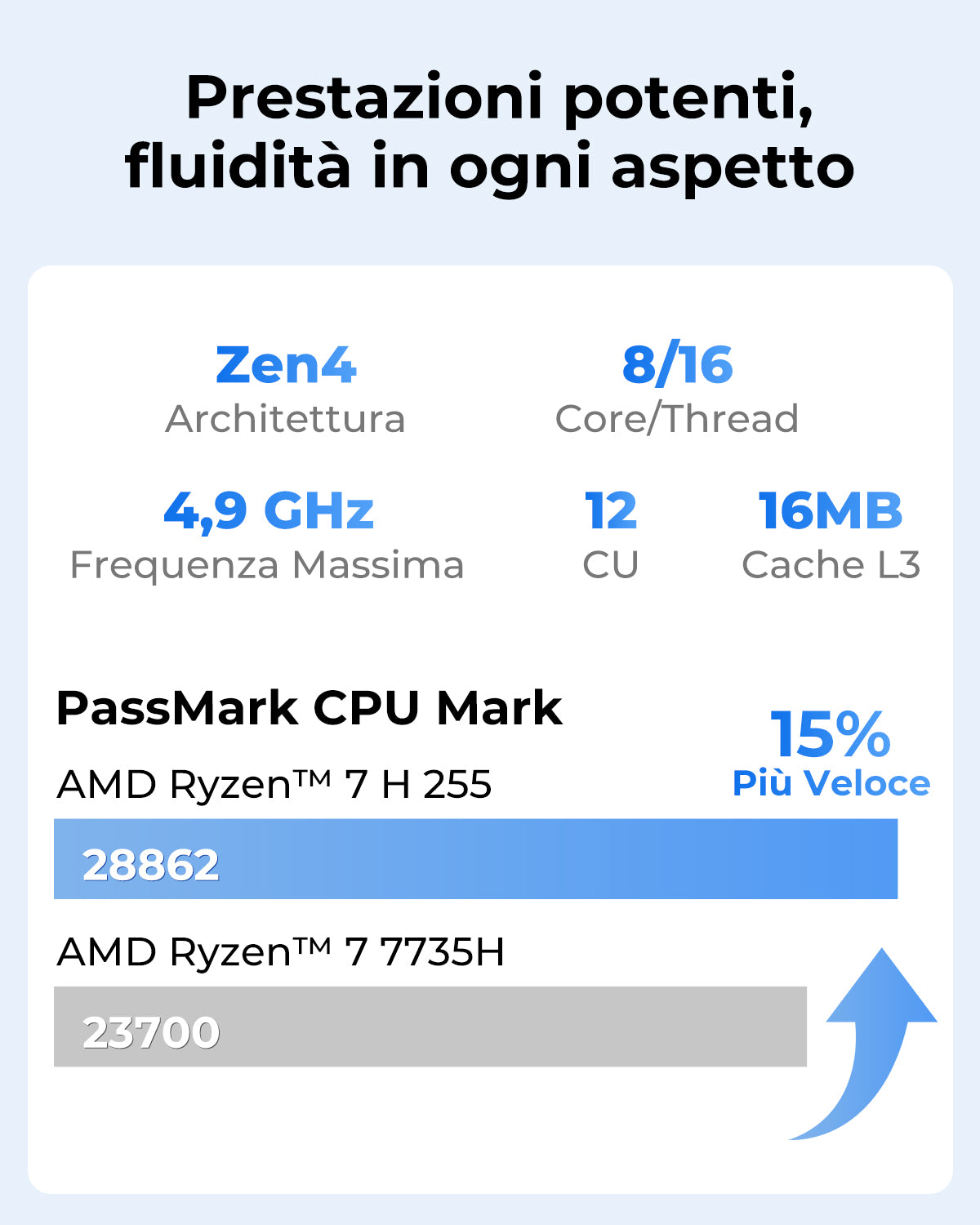

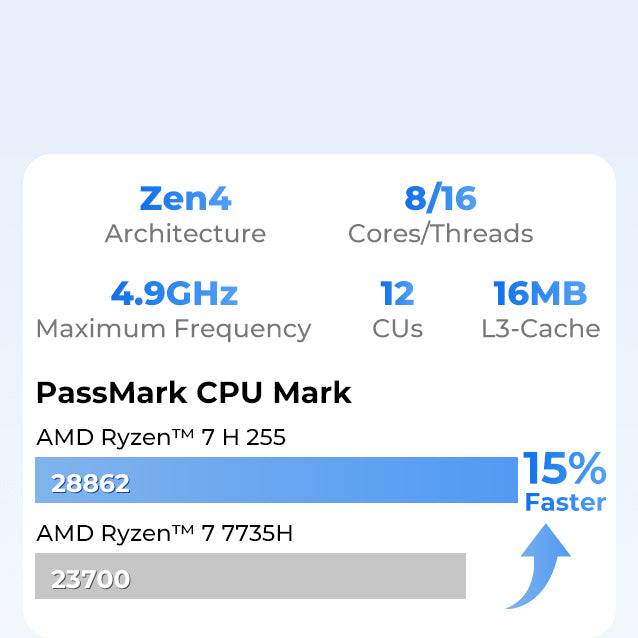

Powerful Performance, Smooth in Every Way

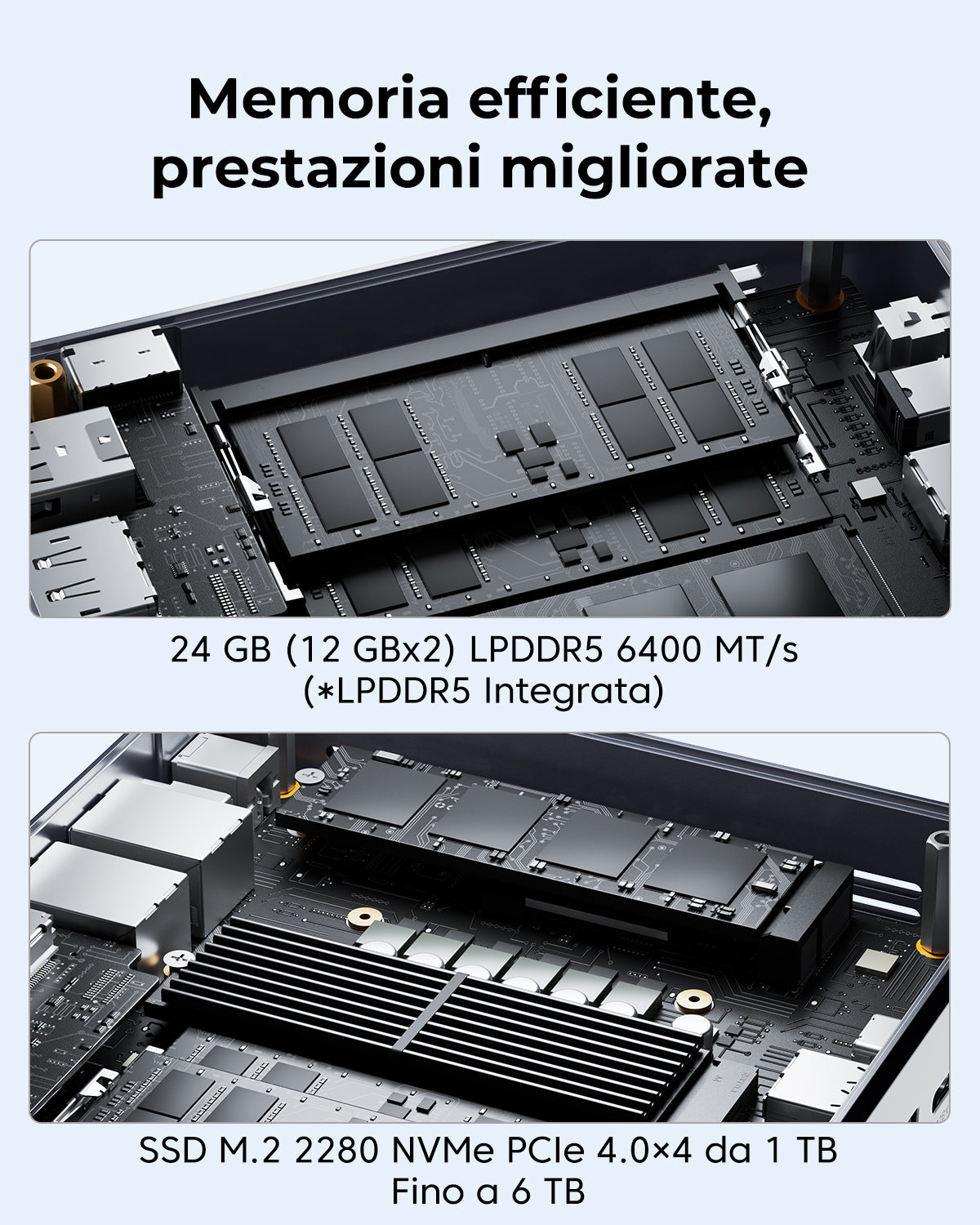

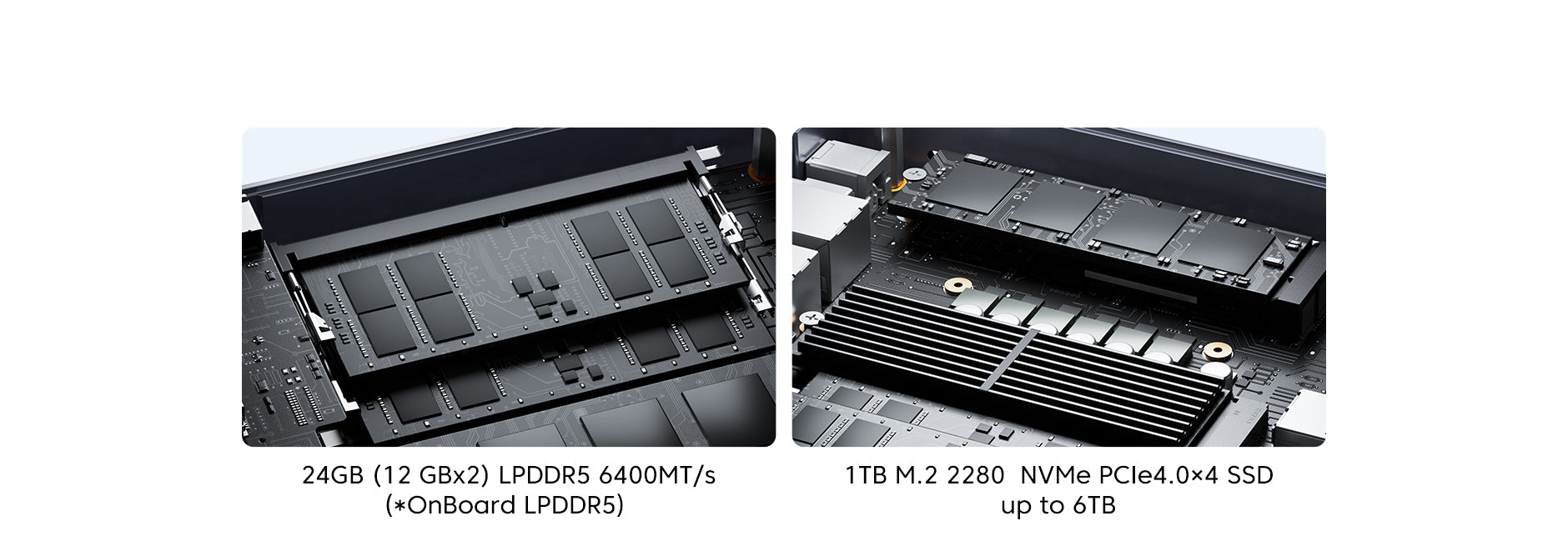

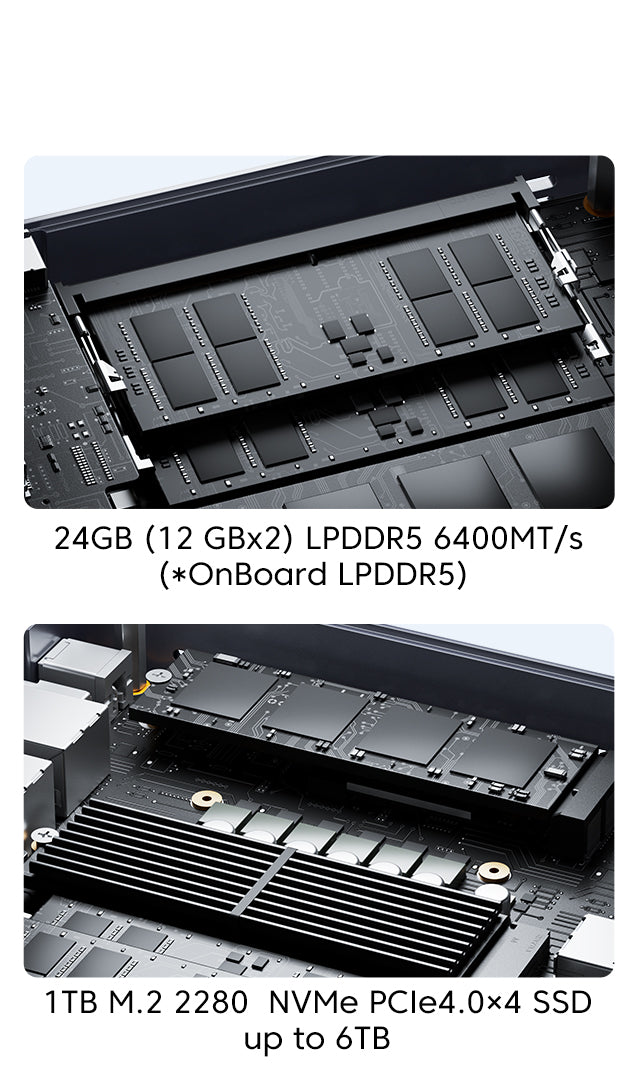

Efficient Memory, Upgraded Performance

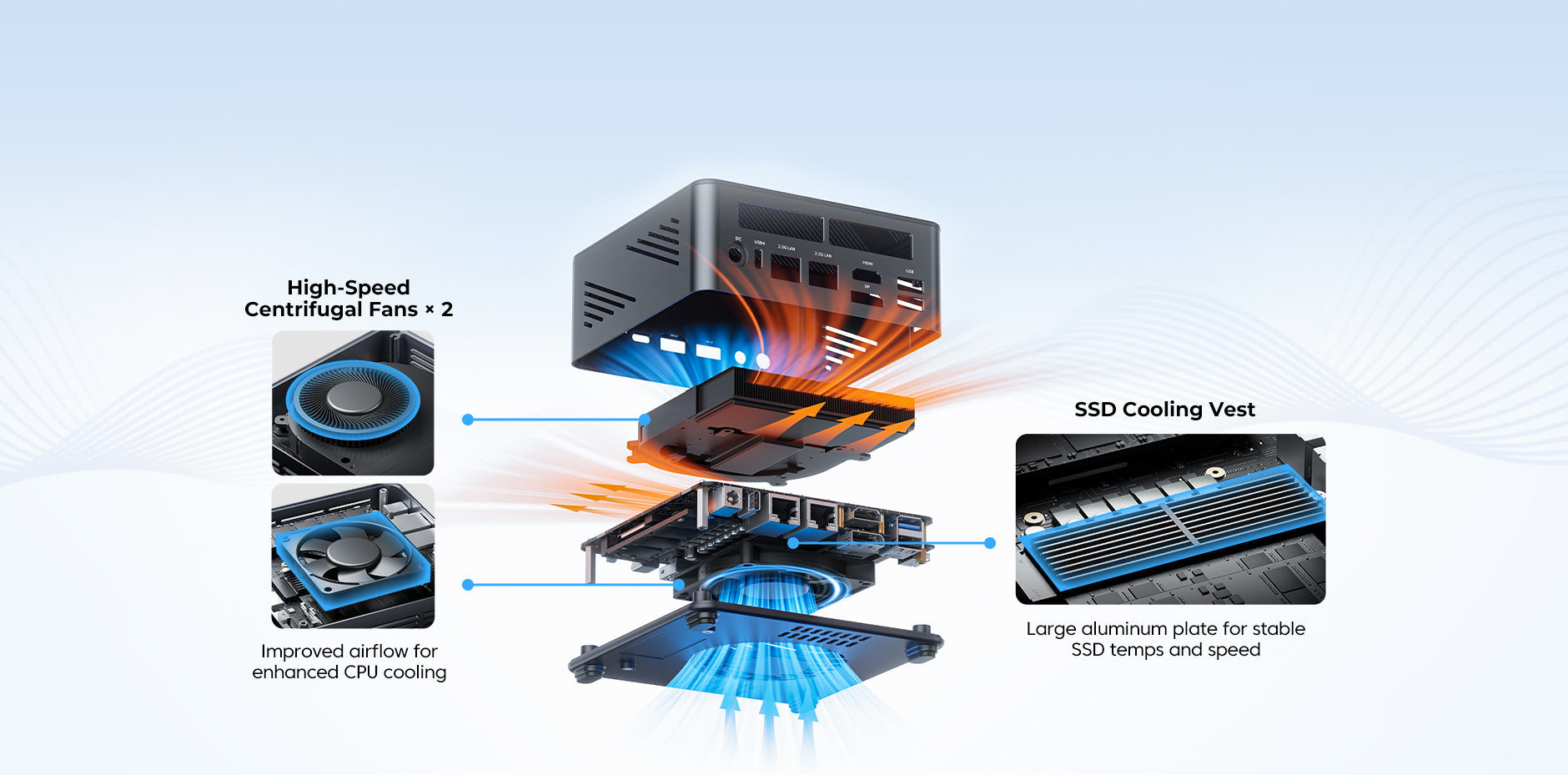

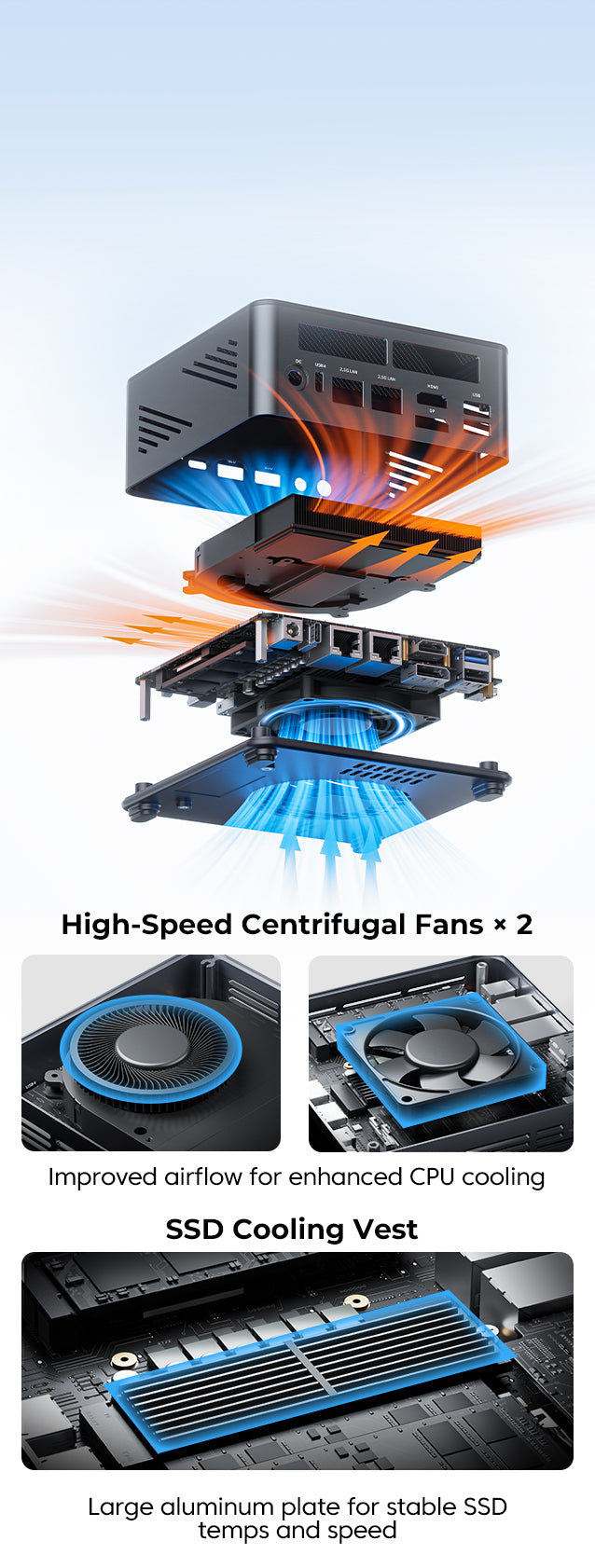

Efficient Cooling System

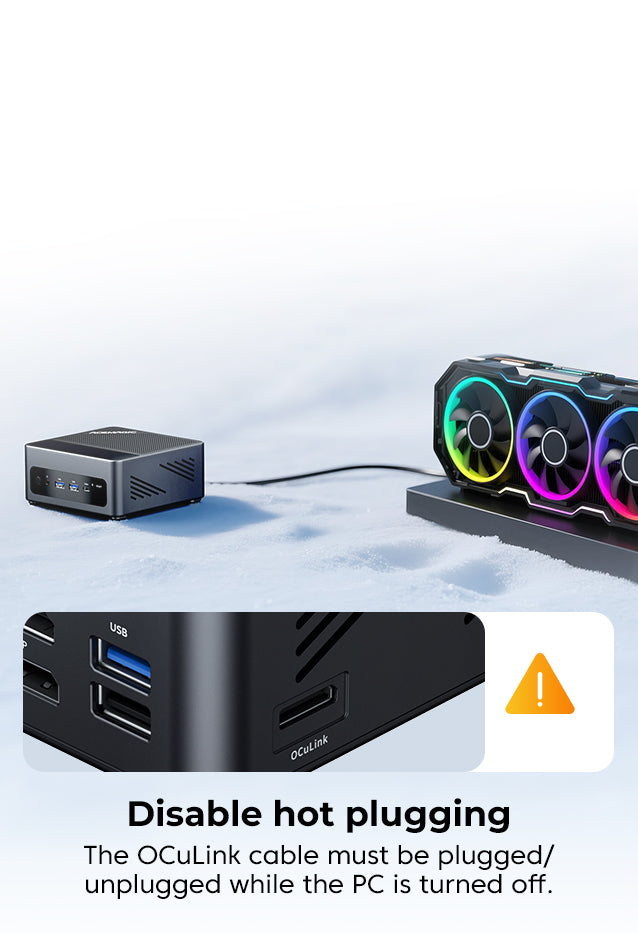

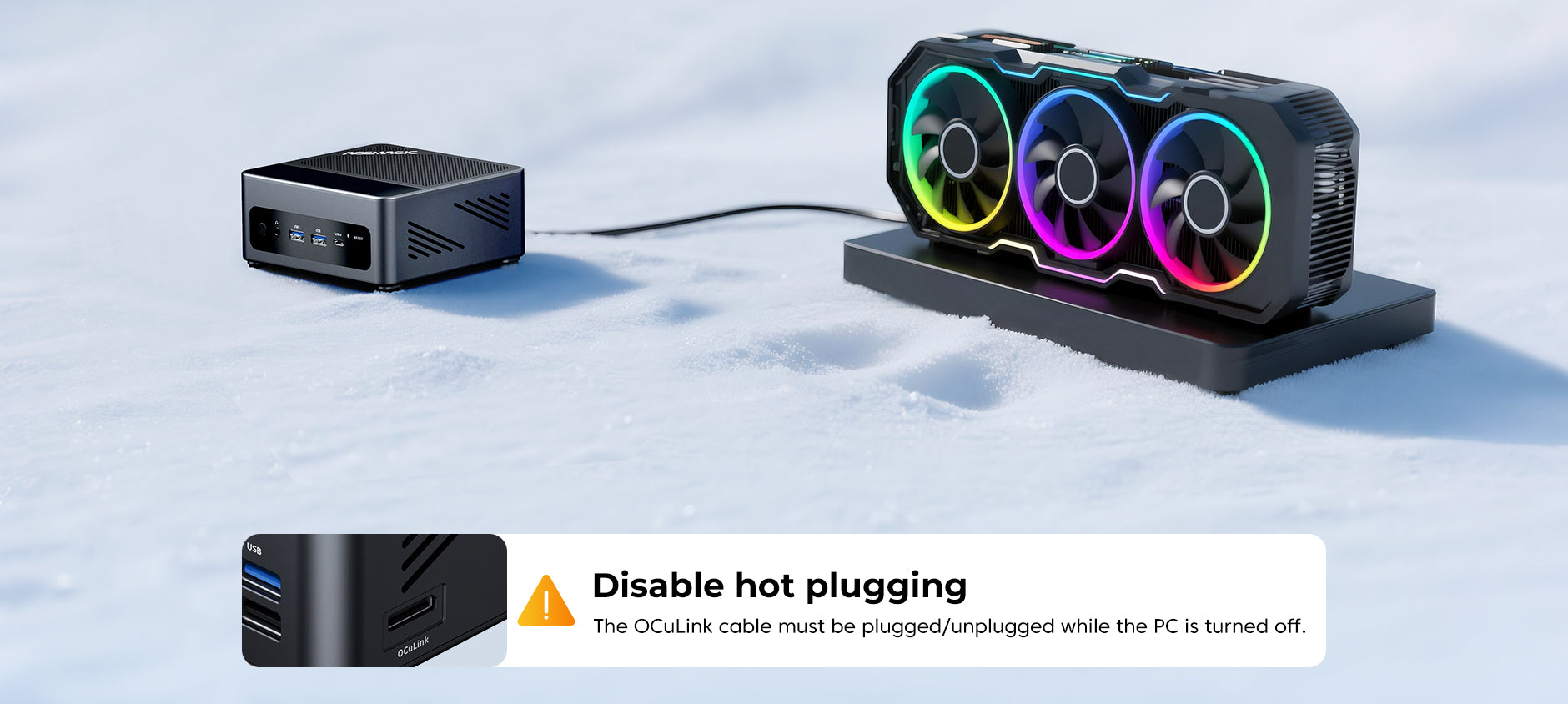

OCuLink

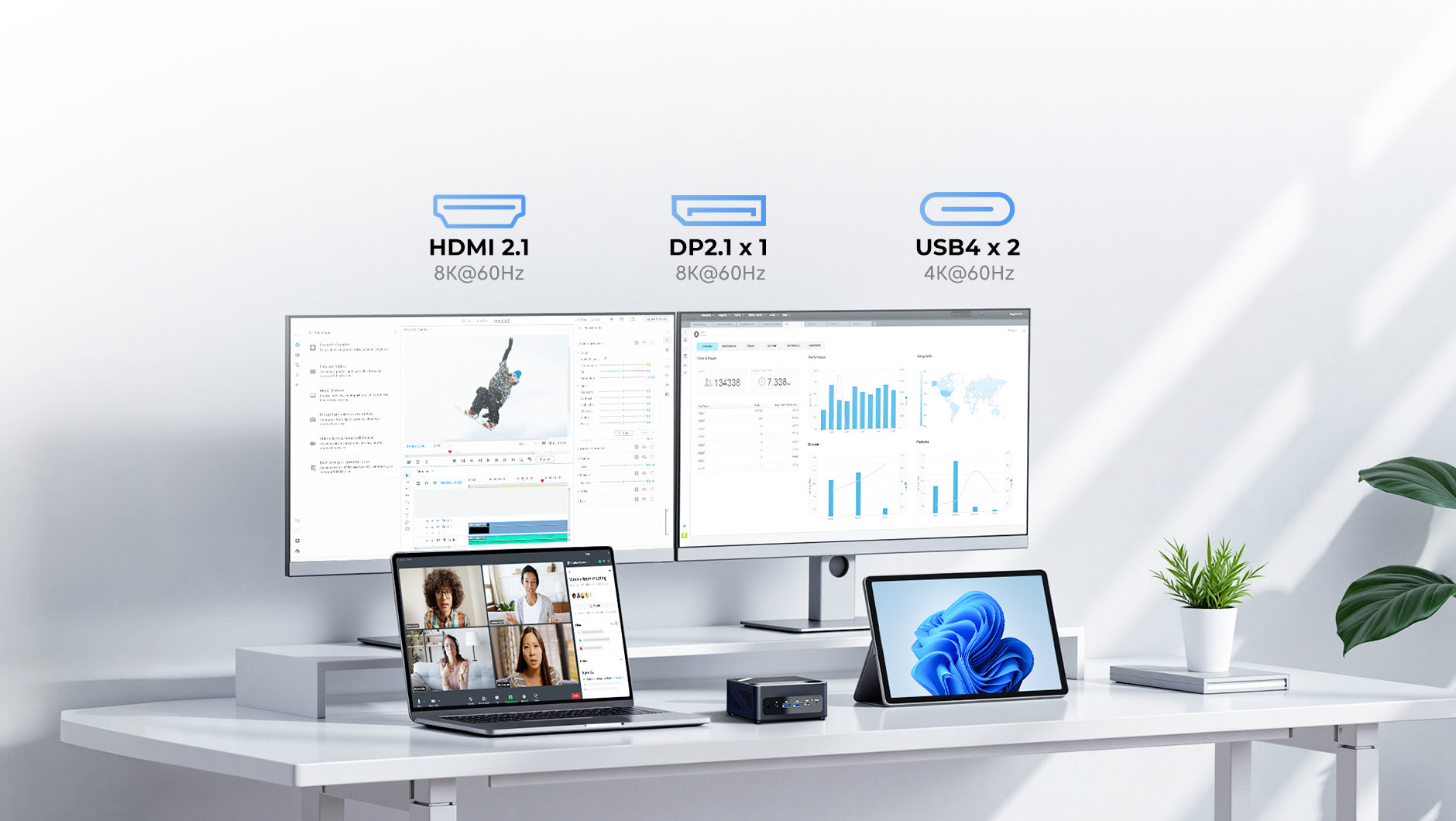

4-screen Display, Efficient Work
2-years Warranty

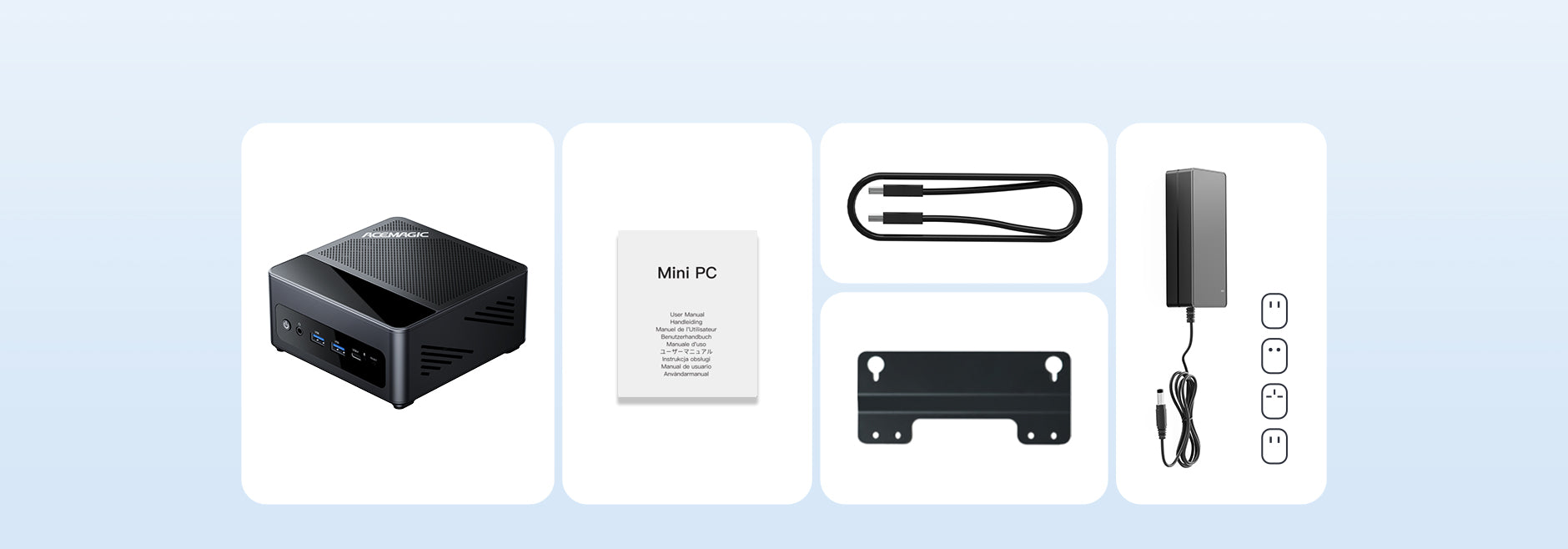

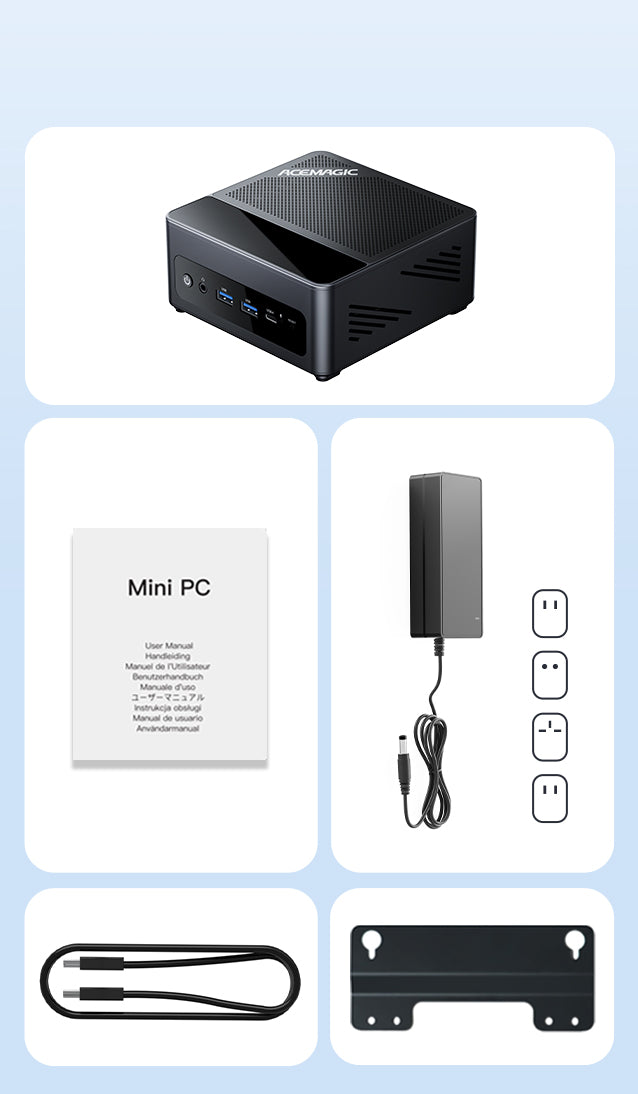

What's in The Box?
N

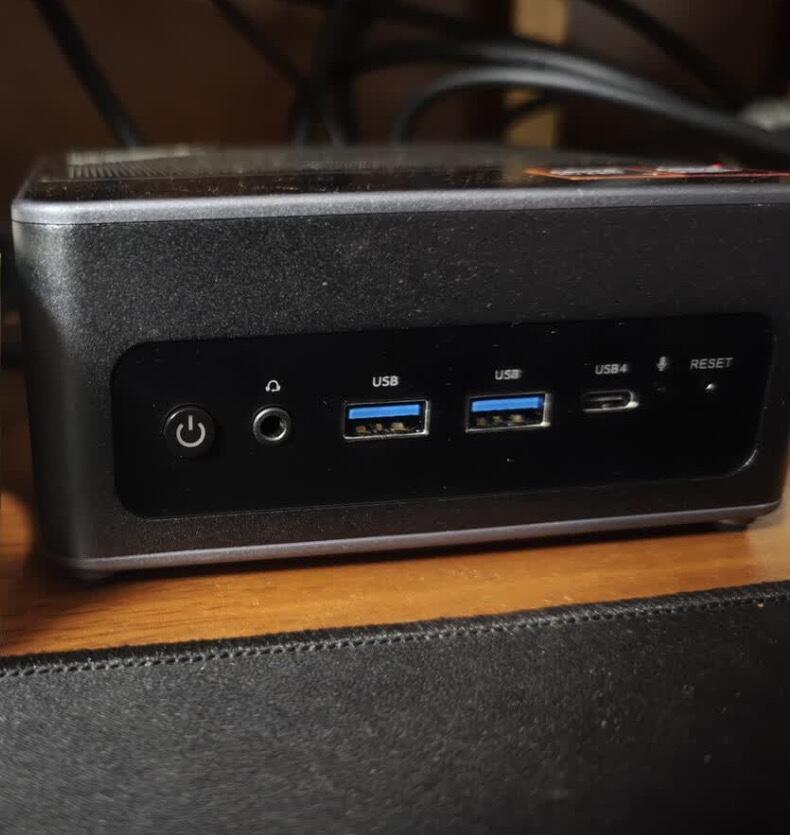

This is a powerful little computer that handles multitasking and graphics-intensive applications like FreeCAD and GIMP with ease. I never even booted into Windows—instead, I installed Linux Mint right away, and it runs flawlessly.Some peripheral support software requires a bit of terminal configuration under Linux, but I don't expect that would be an issue on Windows.Overall, I'm very impressed with this little machine. It's fast, reliable, and has exceeded my expectations.
M
AMD Ryzen™ 7 H 255 / 24GB LPDDR5 + 1TB SSD
I installed SteamOS, assigned 8 gig of RAM to the iGPU and it runs like a dream, also it runs my fav 3d slicers for my resin and FDM printers.
It's quiet, has lots of ports and looks good.
Recommended.
w
Very nice mini computer. Worked flawlessly since I been bought it. Quiet and takes up very little desk space.
A
I am not a computer expert by any means. I am your average user that needs basic functionality, reliability, and something that endure the ever changing world of technology. So far, it has been an exceptional purchase for the price, value, and functionality. It's small footprint makes it easy to place anywhere, including travel with. It has enough ports to support my needs. And the price for the money was unbeatable in comparison to a laptop or desktop. The only thing I recommend is to use a good quality HDMI cable and to go directly to the AMD Graphics website to ensure everything is up to date. Great buy for the price!
n
So much more powerful then I expected, plays Overwatch and some AAA games extremely well! I use this for music production aswell and its perfectly capable. Able to run multiple tracks with heavy vsts, not many clipping and lesser latency then expected. One thing to know before buying: fans gets a little loud, i would place it on the back of your desk otherwise perfectly capable pc, strong hardware, worth it 100%
D
my be a rubbish question but does the mini pc come with a power cable
Thank you for contacting ACEMAGIC,
yes,the mini pc come with Main unit, power adapter, HDMI® cable, VESA mount (with screws), user manual.
J
If I hooked up a9060 xt 8gb you to the ace magic f5a what psi would I need for the four
hello， Mini PCs have limited space, and adding a mid-range discrete graphics card significantly increases heat generation. Conventional case fans typically have an air pressure of 0.05–0.15 PSI. When adding a discrete graphics card, it is recommended to use an ultra-thin fan with an air pressure of ≥0.12 PSI to match the F5A's compact chassis airflow. thanks
