Description
xAMD Ryzen™ AI 9 HX 470
x|
Processor |
AMD Ryzen™ AI 9 HX 470, 12 Cores/24 Threads, 2 – 5.2 GHz, Architecture: 4x Zen 5 + 8x Zen 5c , TSMC 4nm FinFET Process Technology, Cache: 12MB L2 + 24MB L3 |
| Graphics | AMD Radeon™ 890M Graphics (RDNA 3.5 Architecture, Graphics Clock Speed: 3.1 GHz, Number of Graphics Cores: 16) |
| NPU | AMD Ryzen AI Engine (XDNA2 Architecture) Up to 55 TOPS NPU AI Performance Total AI Performance (CPU+GPU+NPU): Up to 86 TOPS |
| Memory | 32GB LPDDR5X 8000MT/s (Onboard) Non-upgradable |
| Storage |
Pre-installed 1TB M.2 2280 NVMe PCIe 4.0 x4 SSD 3x M.2 2280 NVMe Slots （1x PCIe4.0x4 Slot，2x PCIe4.0x2 Slots） Supports PCIe 4.0x4 NVMe SSD, SATA M.2 SSD Not Supported, Up to 4TB per Slot (12TB Total) |
|
Wireless Connectivity |
WiFi 7 Bluetooth 5.4 |
| Video Output | 1x HDMI 2.1 (8K@60Hz） 2x USB4 Type-C Ports, Supporting Data Transfer Speeds of up to 40 Gbps / DisplayPort 1.4 (8K@60 Hz) / Supports 100 W Power Delivery Input and 15 W Power Delivery Output 1x DP2.1 (8K@60Hz) |
| Audio Output | 3.5 mm Audio Jack ×1 |

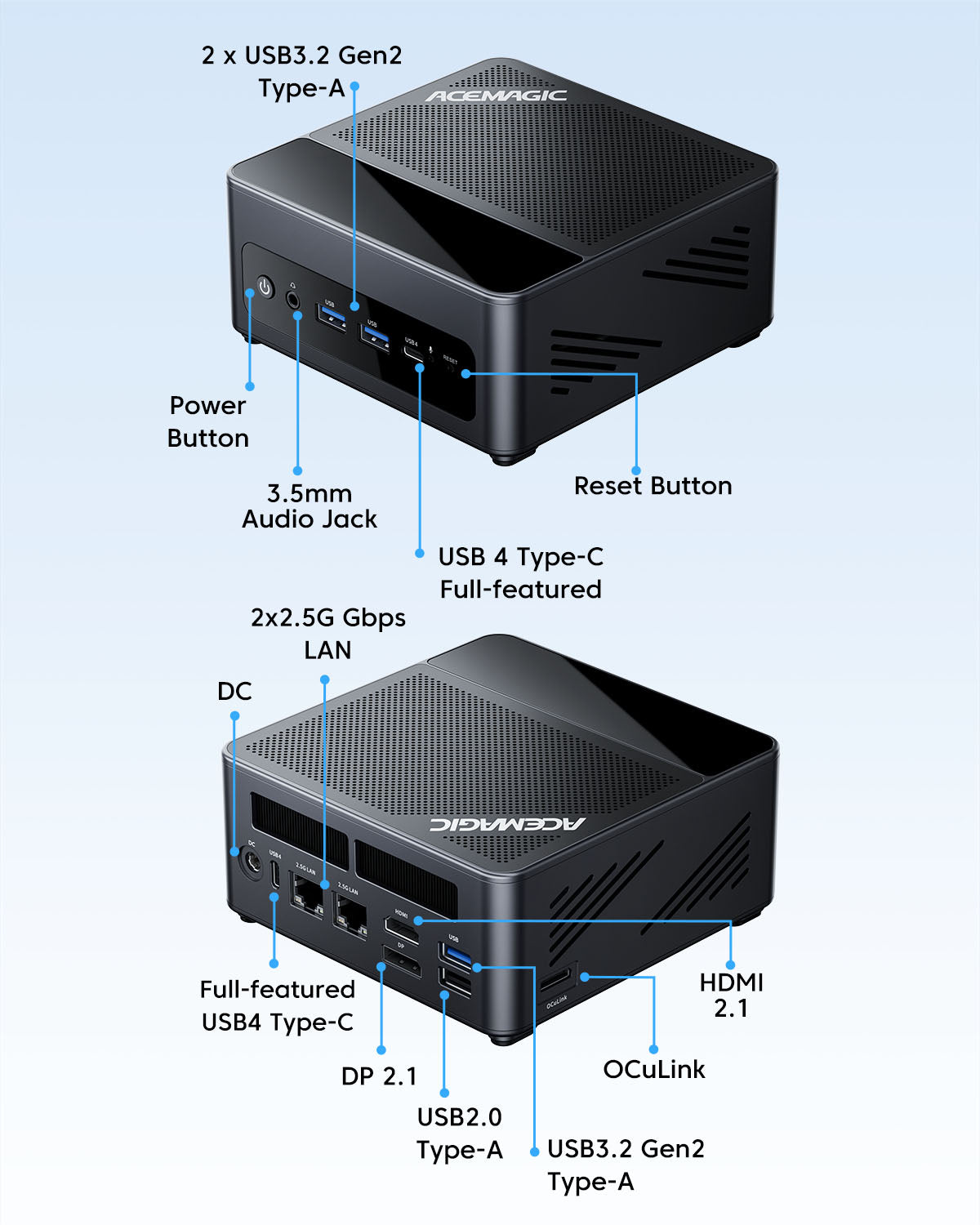

| Ports & Buttons | 2 x 10/100/1000 Mbps/2.5 Gbps Auto-negotiating RJ45 Gigabit Ethernet Ports 2 x USB 3.2 Gen 2 Type-A Ports (10 Gbps) – Front Panel 1 x USB 3.2 Gen 2 Type-A Port (10 Gbps) – Rear Panel 1 x USB 2.0 Type-A Port – Rear Panel 2 x USB4 Type-C (Supports DP 1.4, 8K@60Hz, Up to 40Gbps Data Transfer, PD100W Input) 1 x DC IN 1 x HDMI 2.1 1 x DP 2.1 1 x 3.5mm Audio Jack 1 x Power Button 1 x OCuLink Port (Supports External Discrete Graphics) |
| Power Supply | DC 19 V-6,3 A, 5.5 x 2.5 mm DC Connector |
| System | Windows 11 Pro, Supports Linux and Ubuntu |
| Dimensione | 130 × 132 × 62mm |
| Cooling System | Dual Fans (CPU Fan + System Fan) + Uniform Heat Dissipation Plate (VC), Maximum Power of 65 W |
| Feature | 1. OCuLink interface, supporting external discrete graphics cards. 2. Dual-fan (CPU fan + system fan) + vapor chamber heat spreader cooling, with a maximum thermal headroom of 65W. 3. Removable bottom panel for easy SSD upgrades. 4. Supports 4-screen display, capable of simultaneously outputting 4K/8K resolutions (HDMI 2.1 + DisplayPort 2.1 + dual USB4). 5. Features AMD’s latest high-performance Ryzen AI 400 Series CPU, the Ryzen AI9 HX 470, with a total AI computing power of 86 TOPS 6. Supports Wi-Fi 7 and dual 2.5G LAN ports for ultra-fast network connectivity 7. Dual USB4 Type-C ports, supporting up to 40Gbps transfer speeds / DP 1.4 (8K@60Hz) / supports 100W PD input and 15W PD output 8. Extensive I/O connectivity 9. Ultra-compact metal chassis design 10. 32+1TB configuration supports smooth operation of 7B–14B-scale local large models 11. Pre-installed with Windows 11 Pro; supports Linux and Ubuntu |

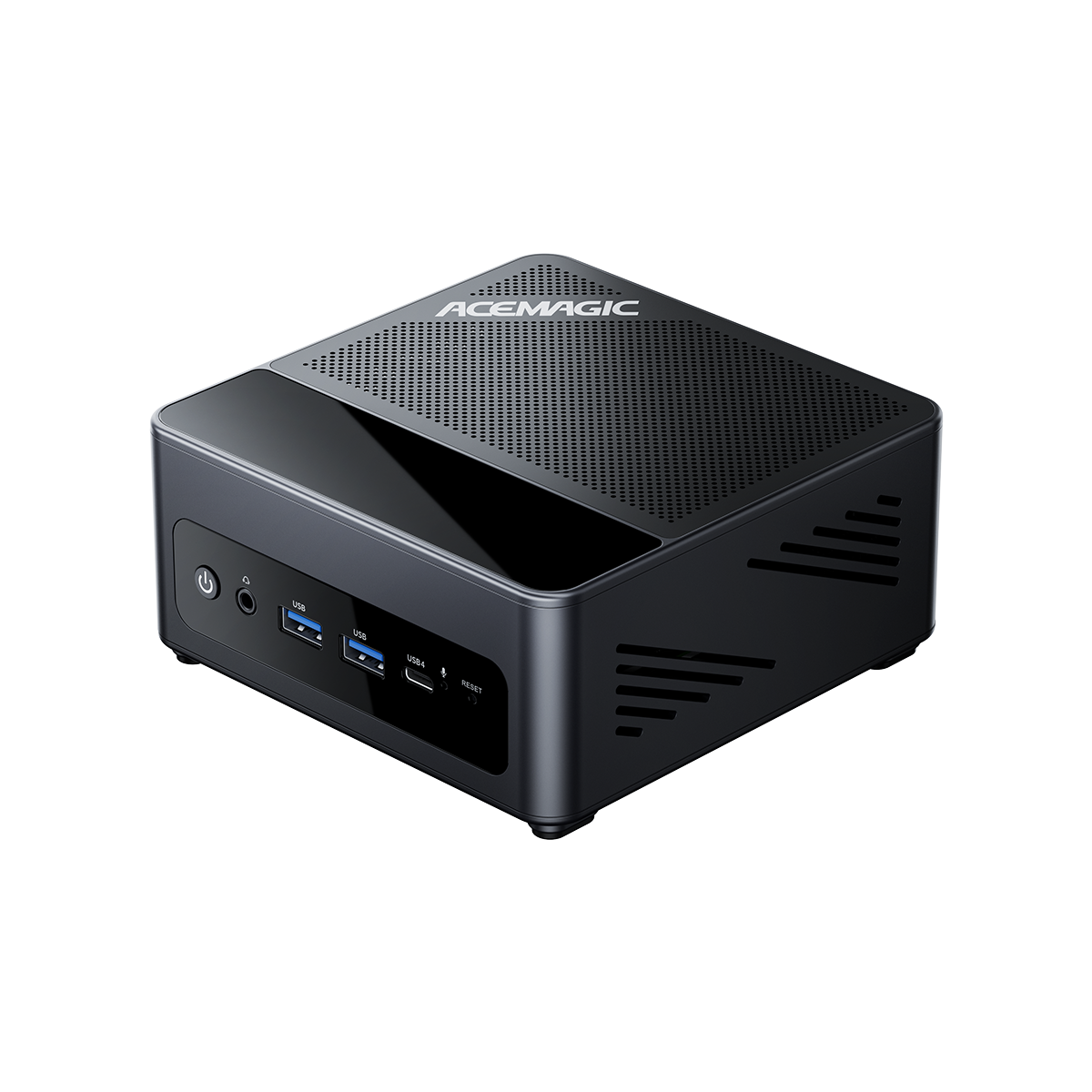

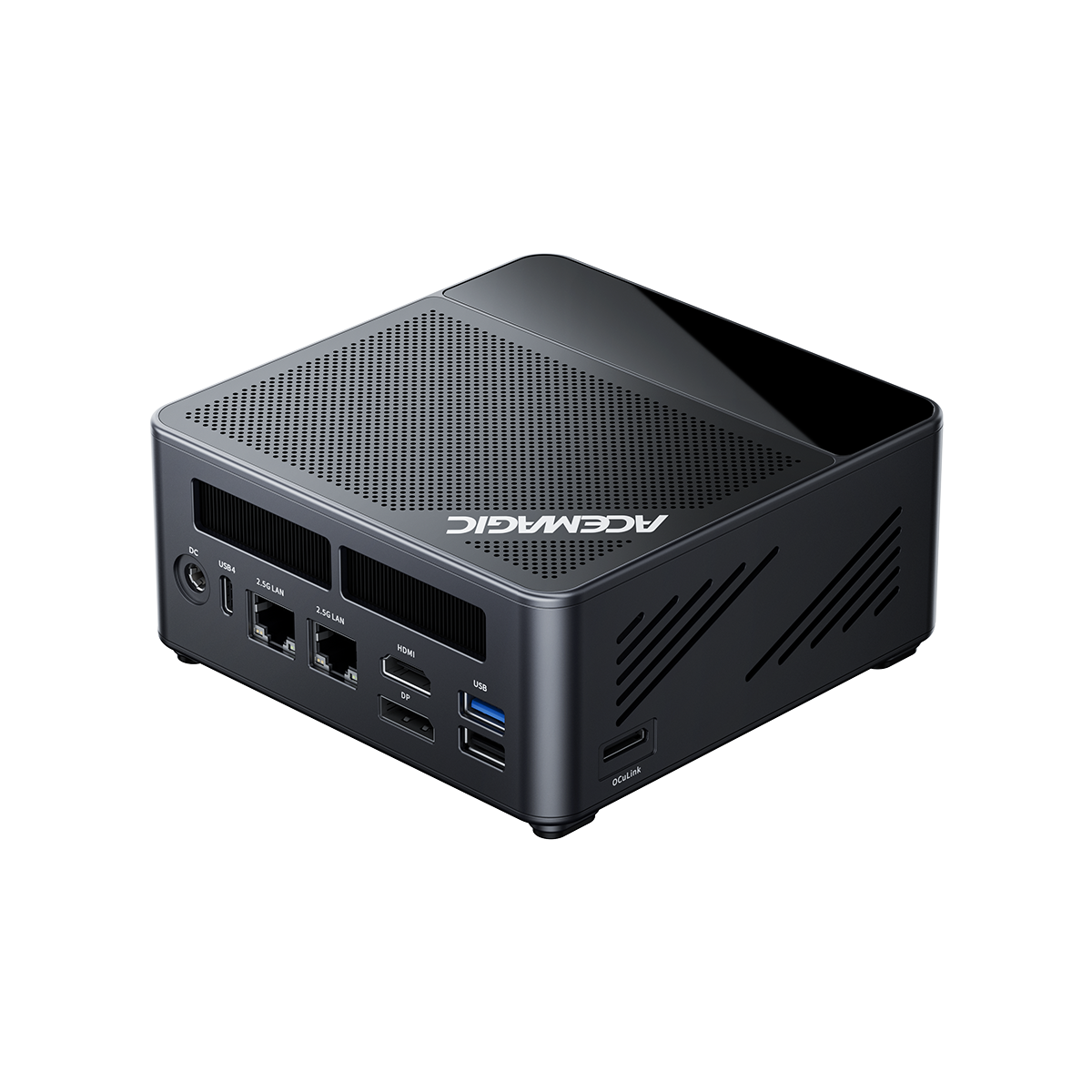

F5A AMD Ryzen™ AI 9 HX 470 Mini PC
ACEMAGIC F5A AI Mini PC

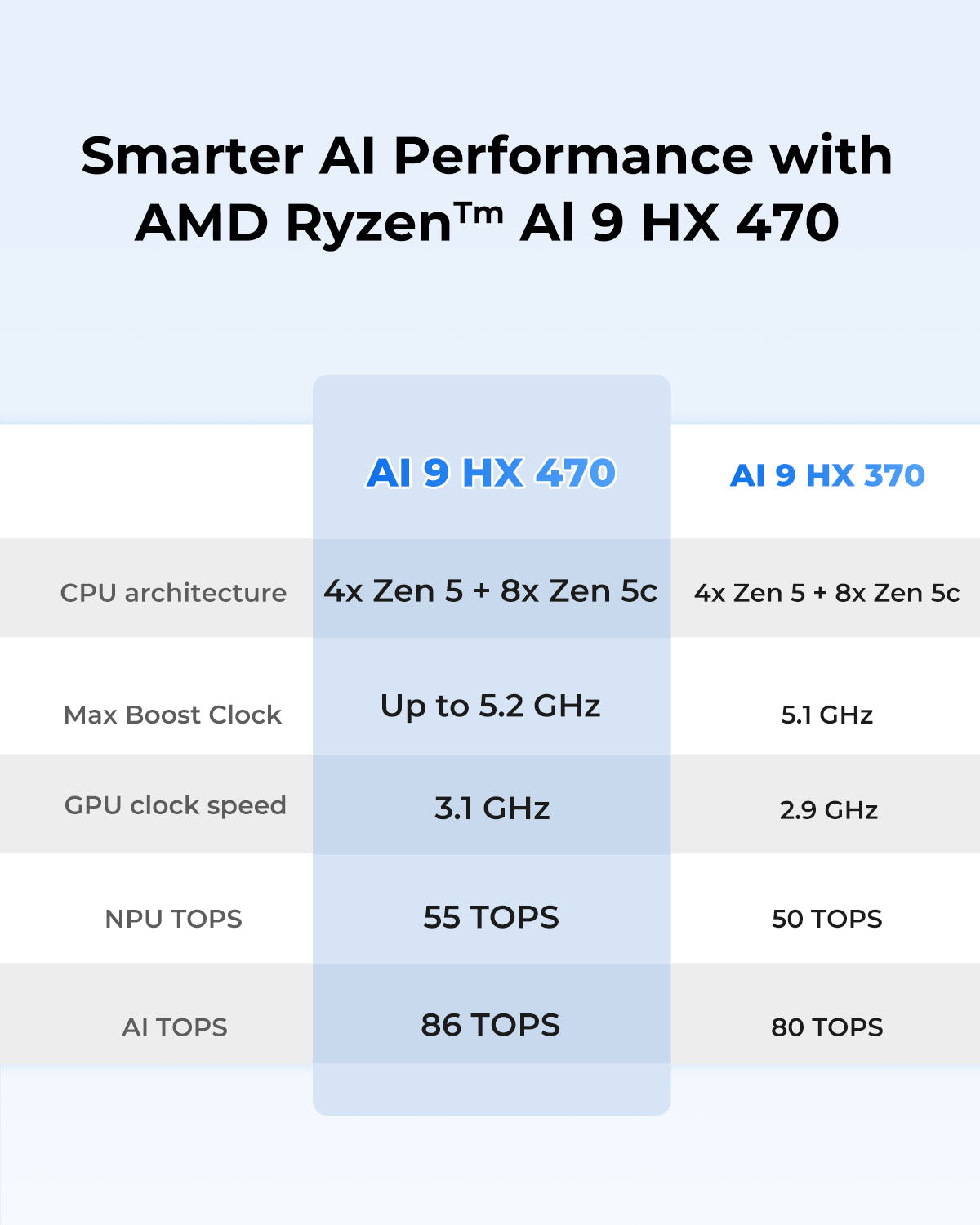

Smarter AI Performance with Ryzen AI 9 HX 470

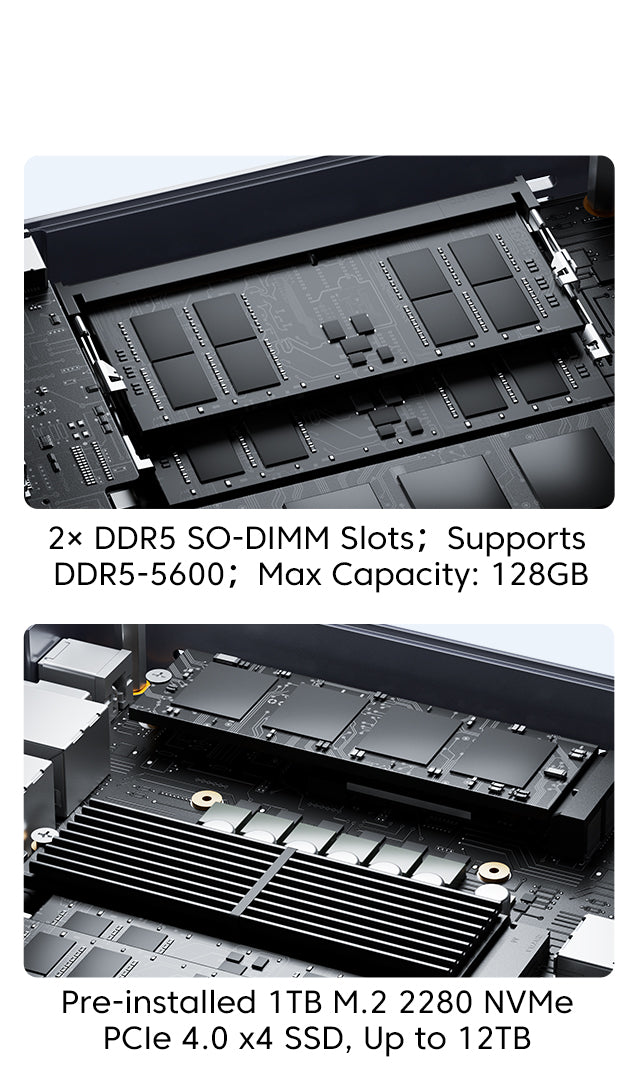

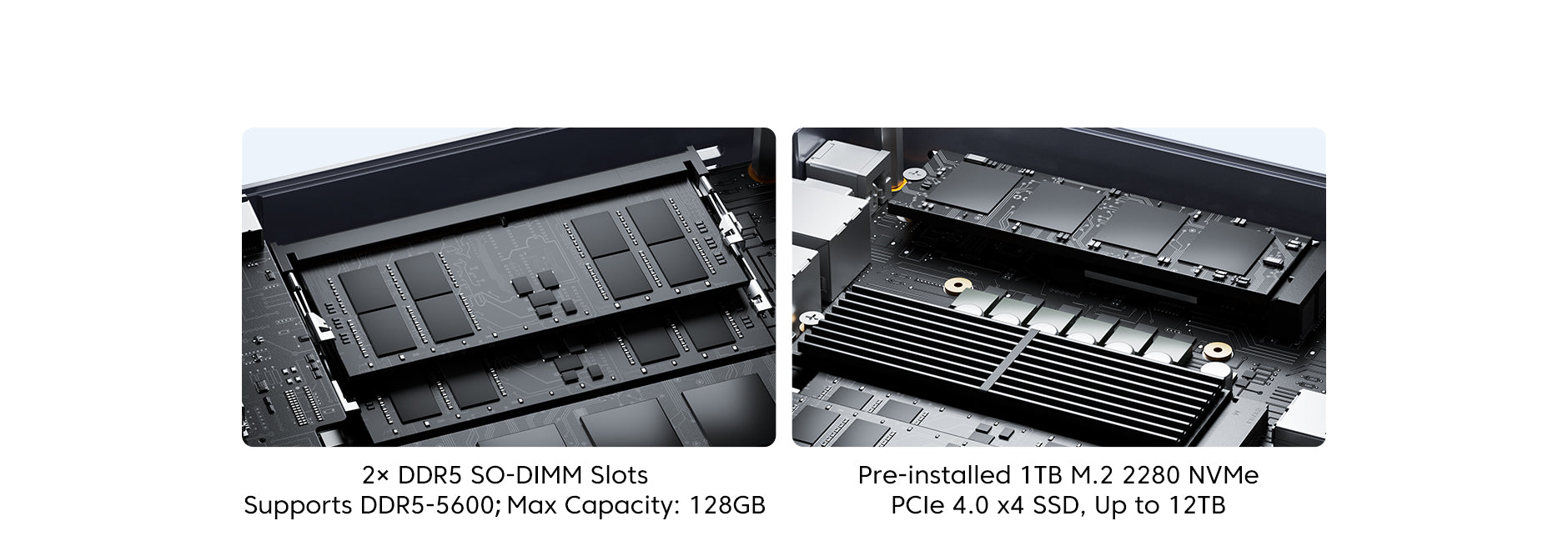

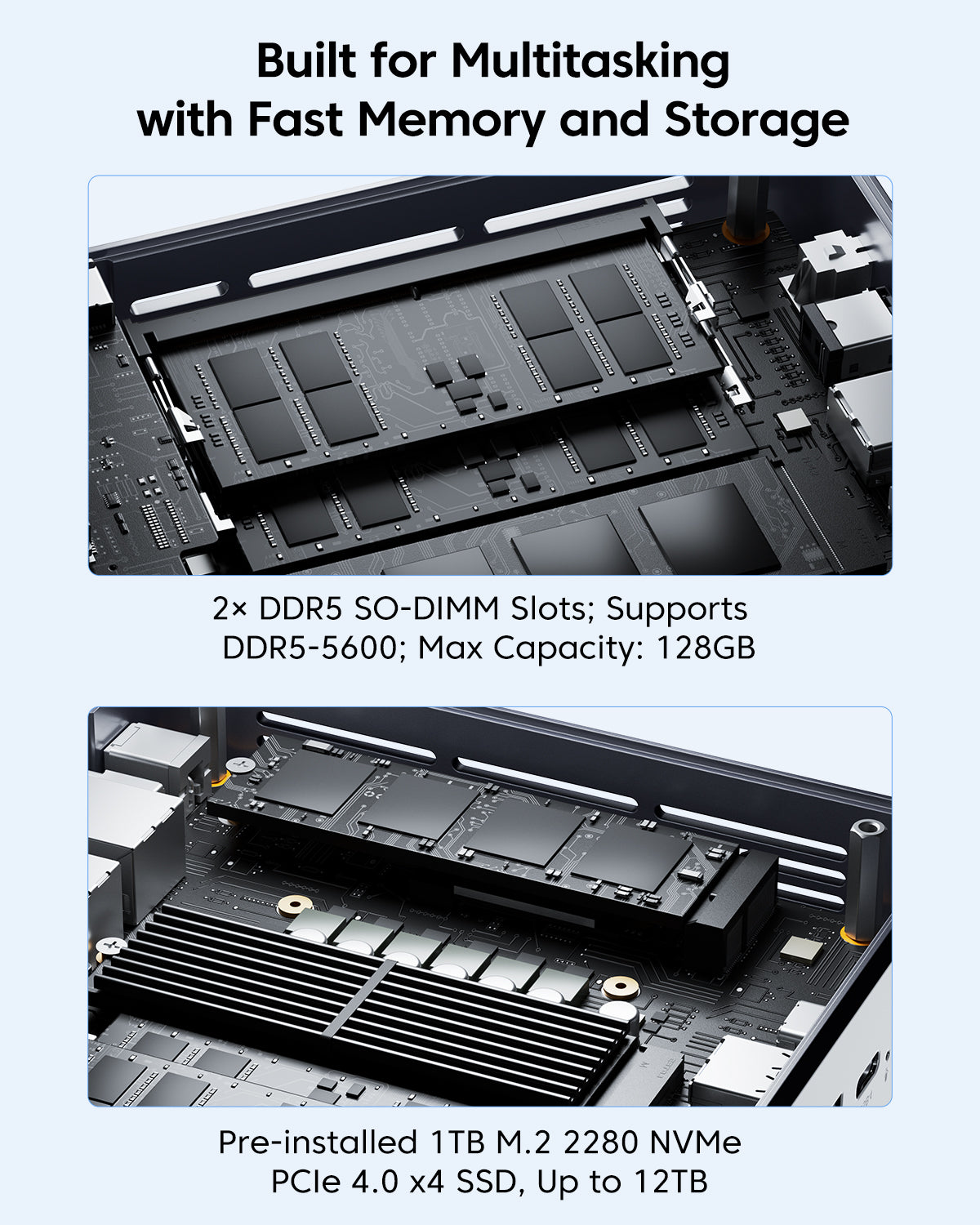

Built for Multitasking with Fast Memory and Storage
Pre-installed with Windows 11 Pro, Supports Linux and Ubuntu
Efficient Cooling System

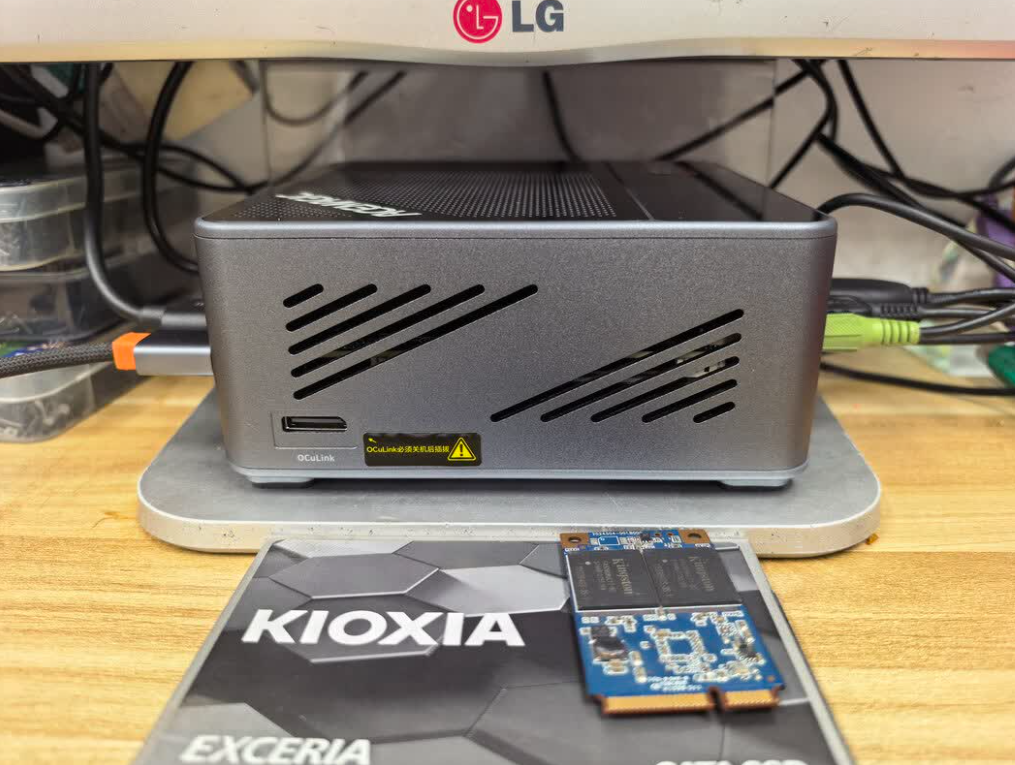

OCuLink
4-screen Display, Efficient Work
Engineered for Speed. Built for Bandwidth.
2-years Warranty

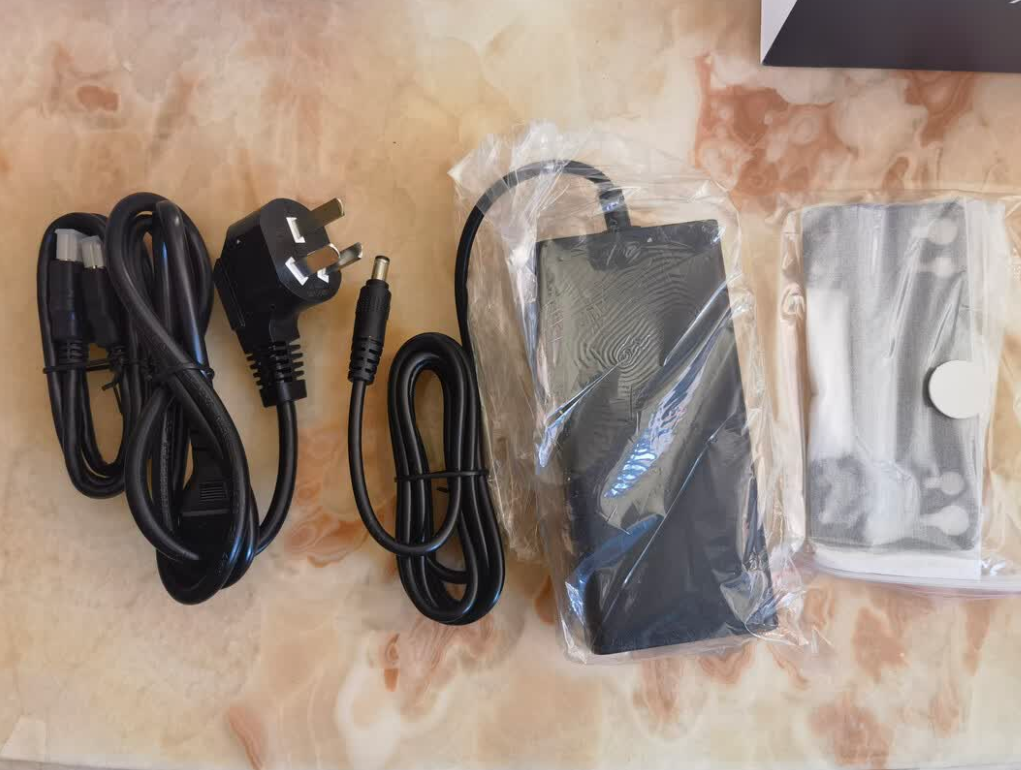

What's in The Box?
