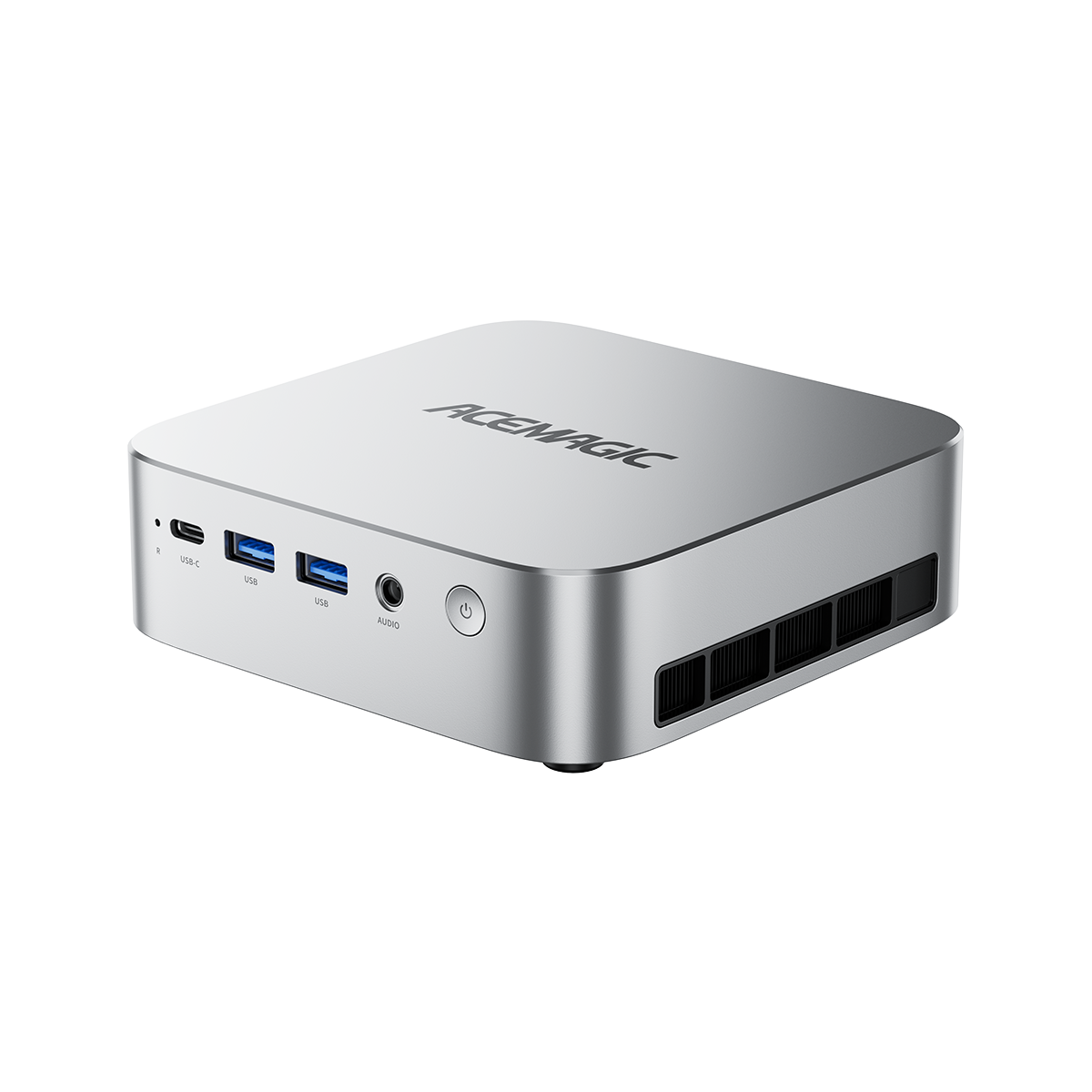

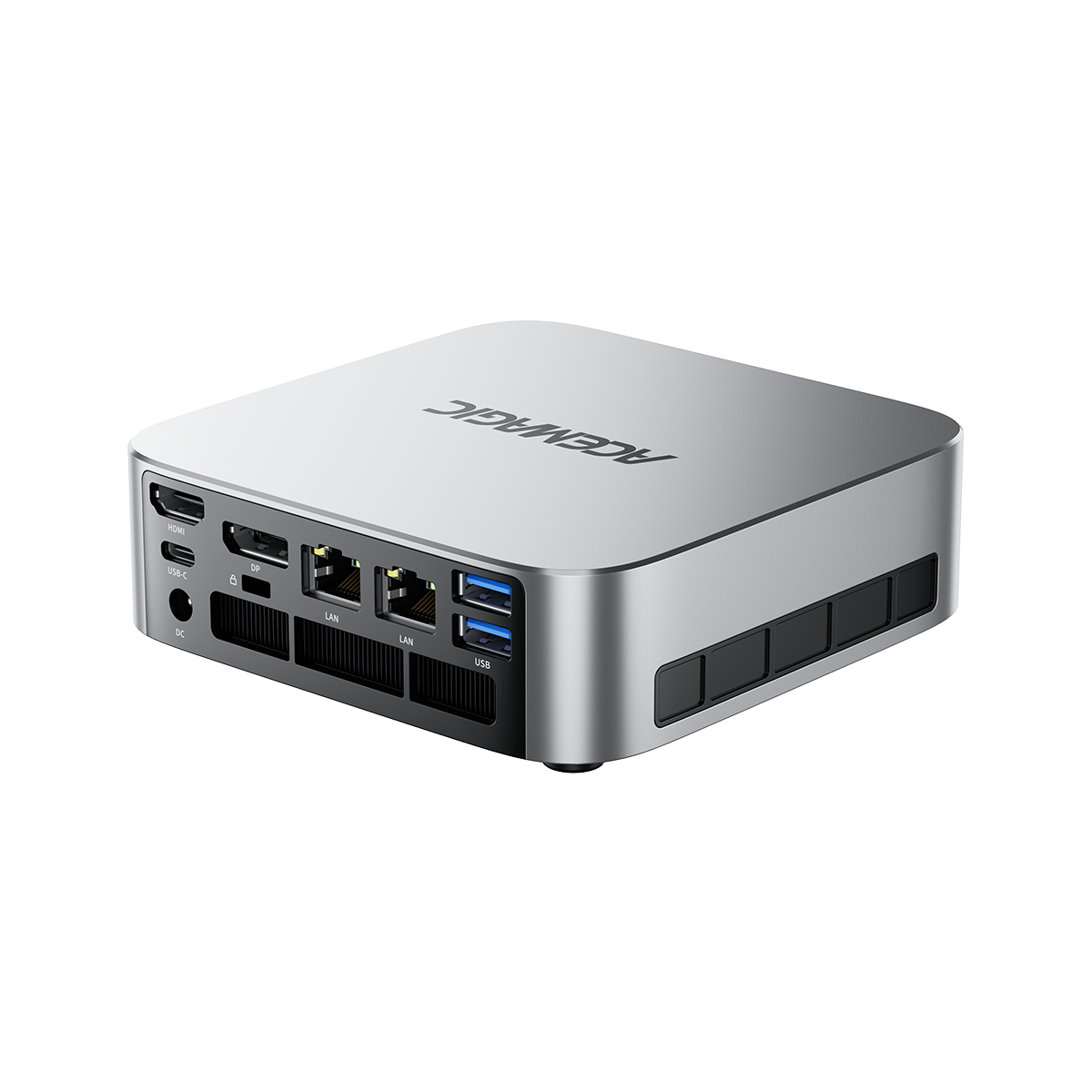

ACEMAGIC F2A Intel® Core™ Ultra X7 358H Mini PC

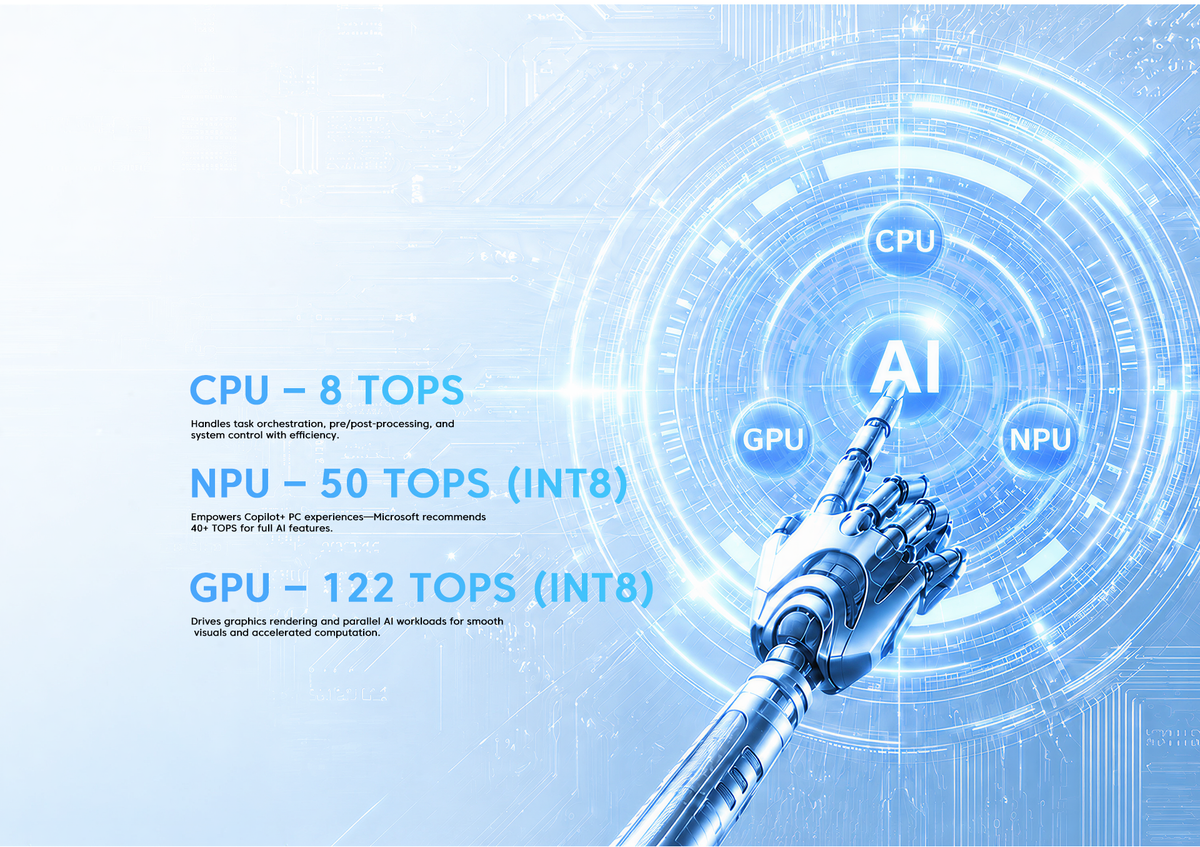

Intel® AI Boost NPU (NPU 5 Architecture, Panther Lake)
Dedicated low-power AI accelerator, independent of CPU/GPU
NPU Compute: Up to 50 TOPS (INT8), optimized for sustained low-power AI workloads
Local LLM Support: Runs 7B–14B LLMs (INT4/INT8 quantization), offline inference for privacy & low latency
Ecosystem: Heterogeneous co-ordination with CPU/GPU, supports Windows AI, OpenVINO
Target: AI Mini PC, edge computing, enterprise end-point deployment

Intel® Arc™ B390 Graphics (Xe3 Architecture)
12 Xe-Cores, max dynamic frequency 2.5 GHz
GPU AI Compute: Up to 122 TOPS (INT8), for high-performance graphics & AI
Graphics Features: DirectX 12 Ultimate, hardware ray tracing, XeSS AI super resolution; optimized for light gaming, 3D rendering & content creation
Media Codec: Full hardware encode/decode for AV1, H.265/HEVC, H.264; supports AI video enhancement, video editing and streaming

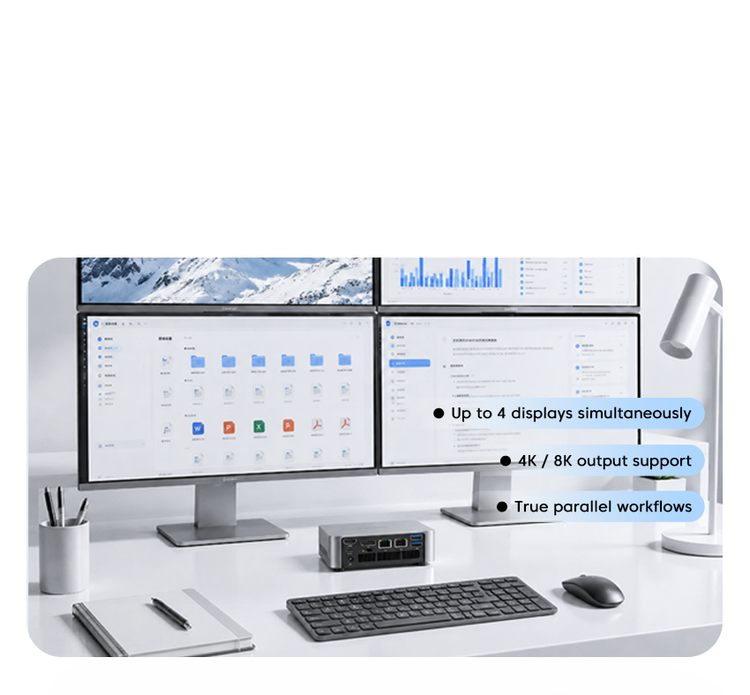

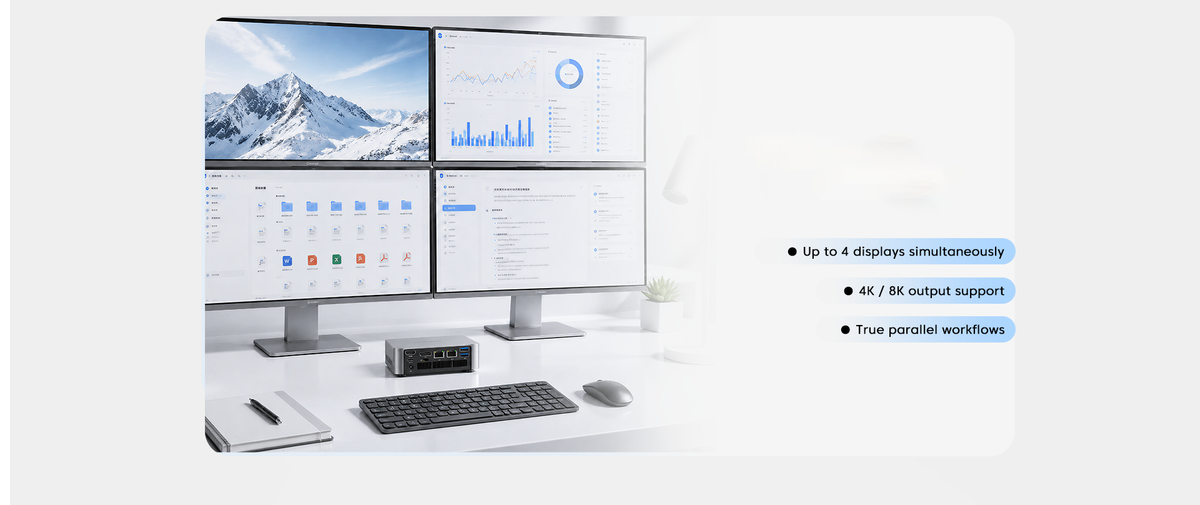

Display: Up to 8K output, 4-display multi-monitor support

HDMI® 2.1 TMDS×1  (4K@60Hz）
DP 2.1 ×1  (8K@60Hz）
3.5mm Audio Jack ×1

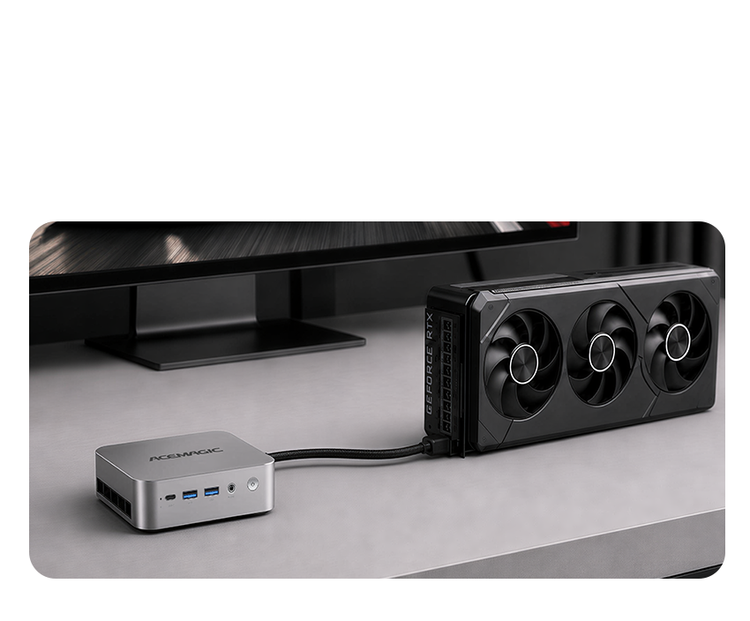

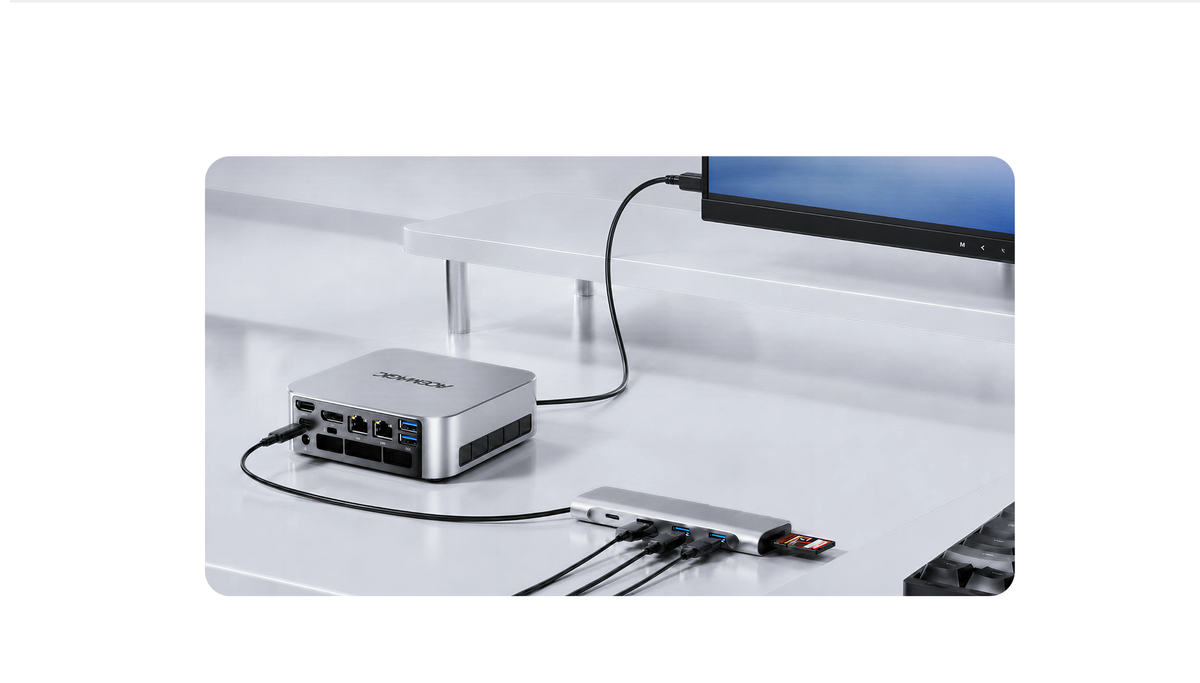

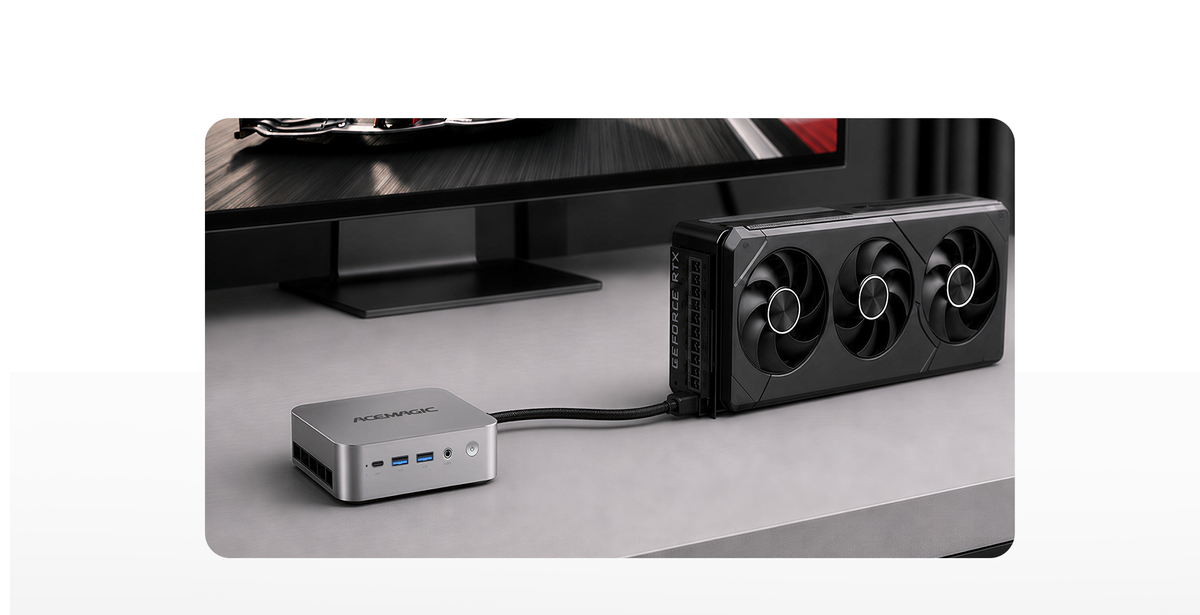

Front USB-C: USB4 Type-C, DP (8K@60Hz / 4K@120Hz), 40Gbps USB4, 15W PD output
Rear USB-C: Full-featured Type-C, DP (4K@60Hz), 100W PD input, 20Gbps USB3.2 Gen2×2

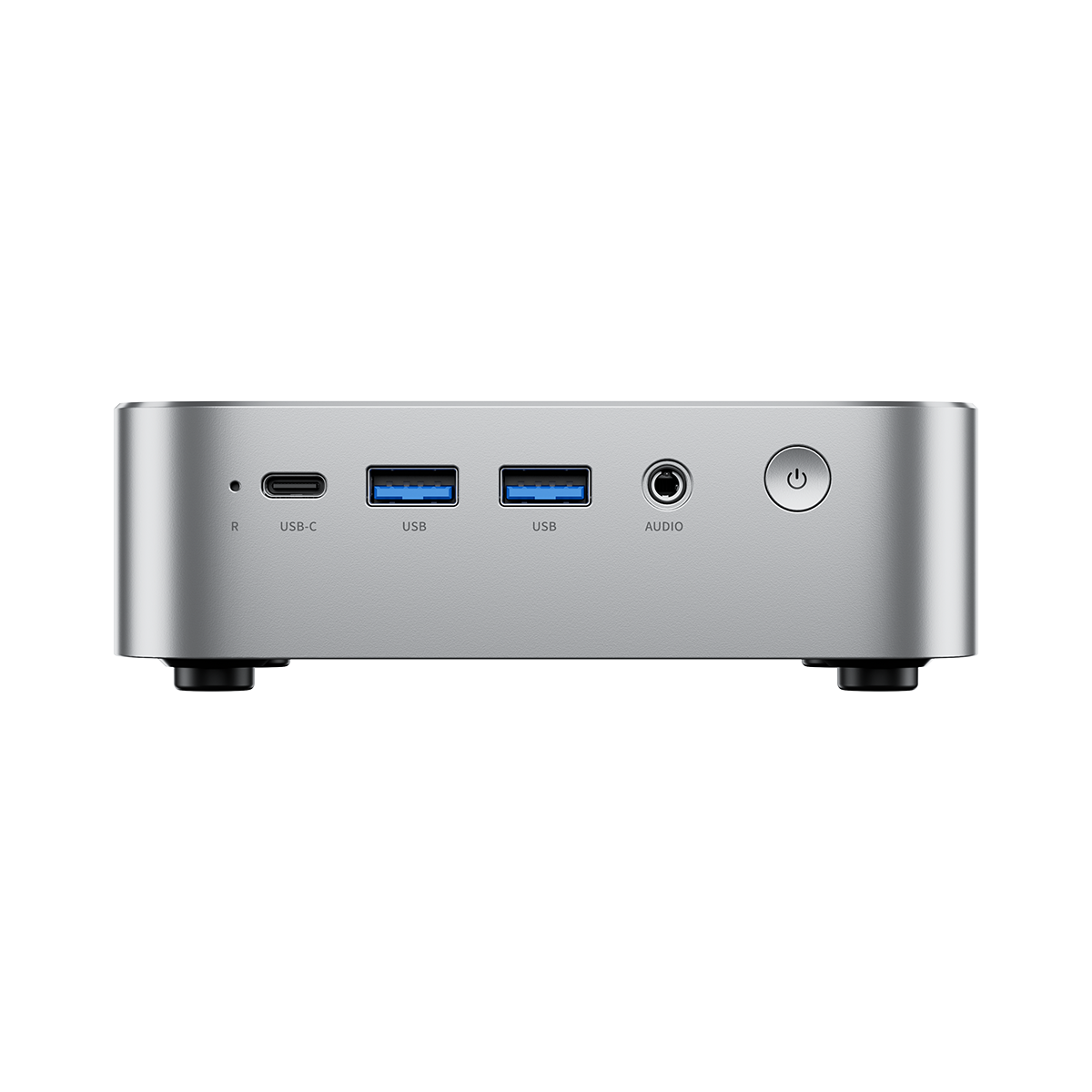

1× USB4 Type-C: DP (8K@60Hz / 4K@120Hz), 40Gbps USB4, 15W PD output
2× USB 3.2 Gen2 Type-A (10Gbps)
1× 3.5mm Audio Jack
1× Power Button
1× Reset Button

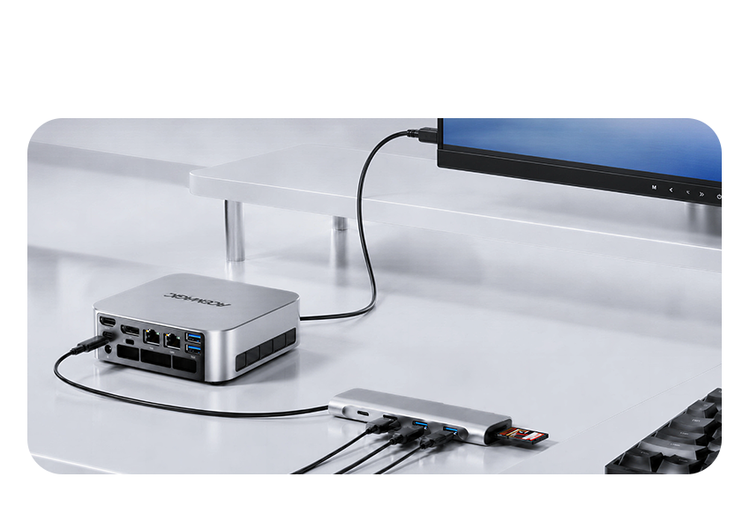

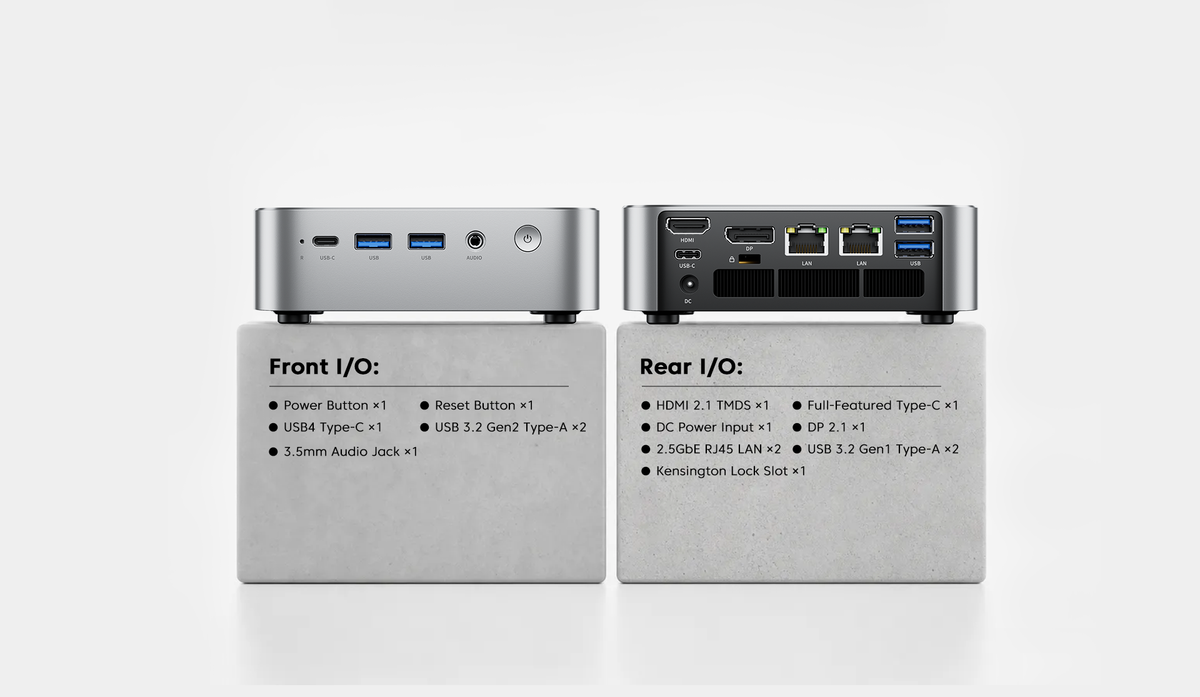

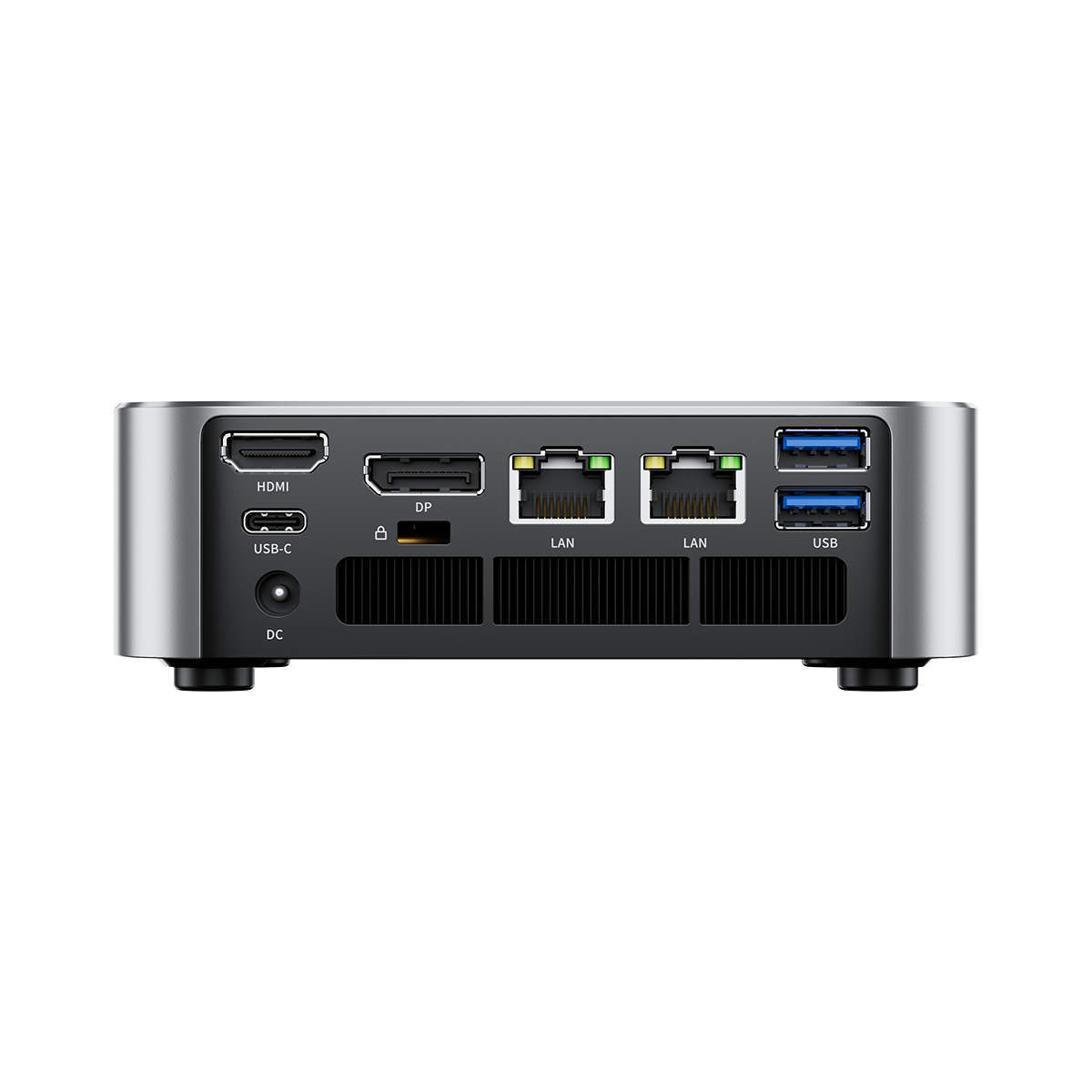

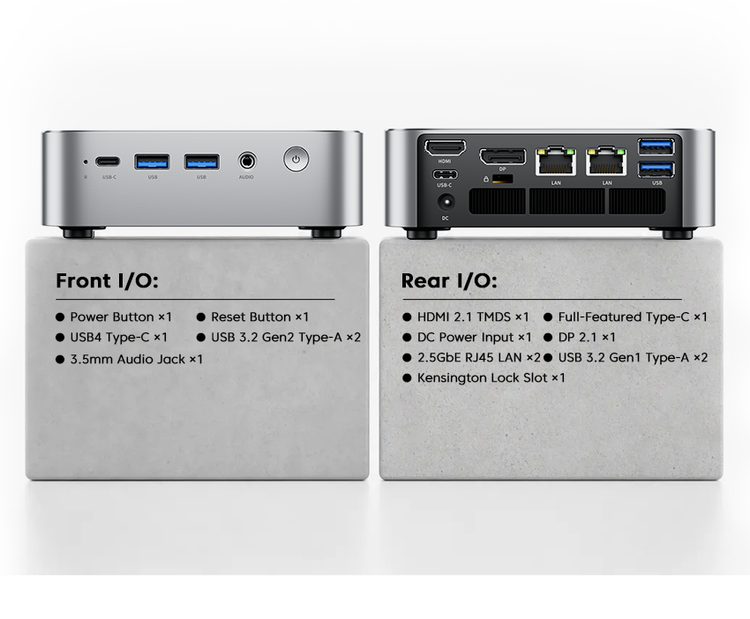

Rear I/O:
1× HDMI® 2.1 TMDS
1× DP 2.1

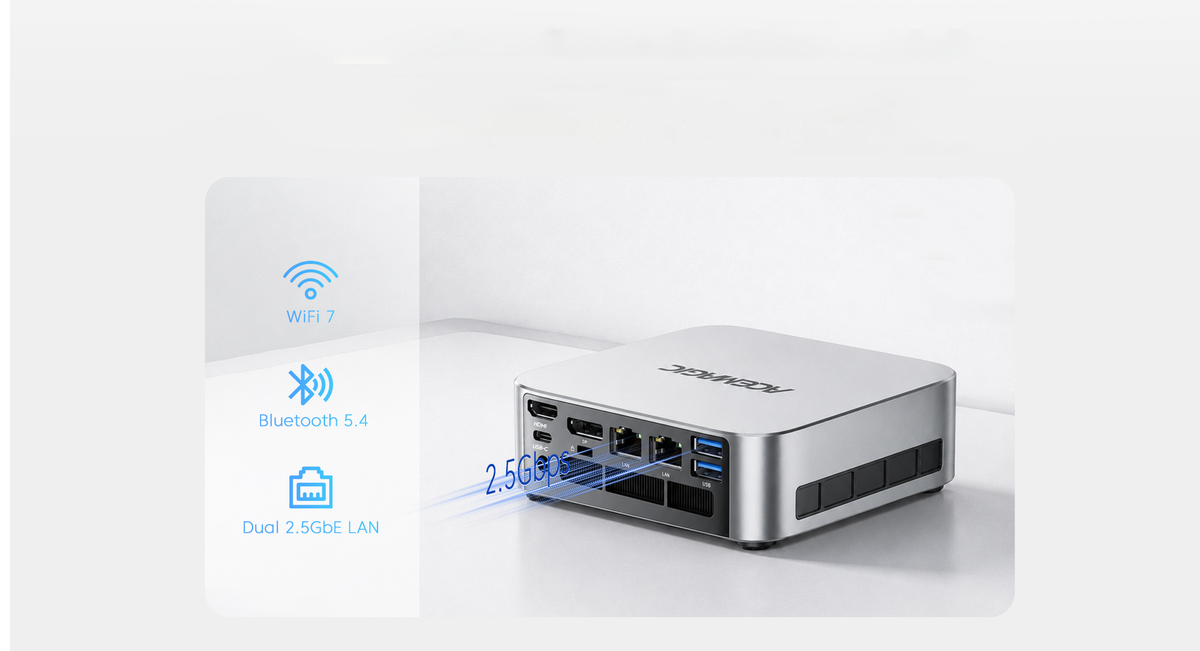

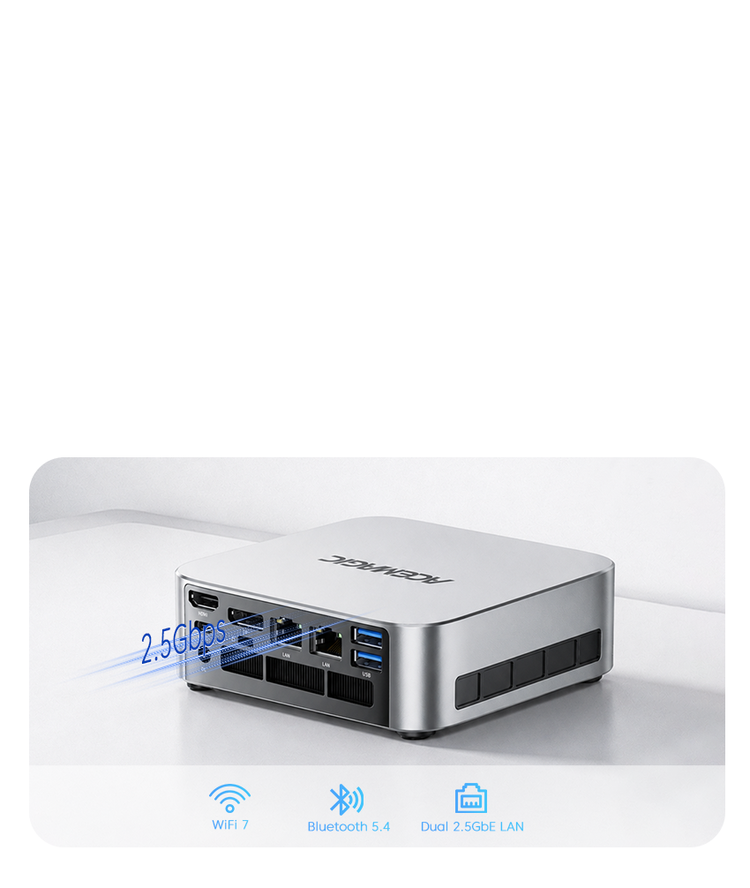

2× 2.5GbE LAN
1× Full-featured Type-C: DP (4K@60Hz), 100W PD input, 20Gbps USB3.2 Gen2×2
2× USB 3.2 Gen1 Type-A (5Gbps)
1× DC IN
1× Security Keyhole
