Description
xIntel® Core™ i9-13900HK
x| Processor | Intel® Core™ i9-13900HK, 14 Cores/20 Threads, Intel 7 manufacturing process, 24 MB Intel® Smart Cache, base frequency 2.60GHz, maximum acceleration clock frequency (Turbo) 5.40GHz |
| Graphics | Intel® Iris® Xe Graphics(Graphics Frequency up to 1.50 GHz, Execution Units 96EUs) |
| Memory | 32GB DDR4 3200MHz (DDR4 SO-DIMM Slot*2, up to 64GB, the maximum frequency of the memory stick supported by the memory slot is DDR4 3200MHz) |
| Storage | 1TB M.2 2280 NVMe PCle4.0*4 SSD (M.2 2280 SATA & NVMe slot x1; M.2 2280 NVMe slot x1; Maximum capacity of 2TB per SSD, 4TB total.) |
| Wireless Connectivity | WiFi 6E+BT5.2 |
| Video Output |
HDMI 2.0*1 (4K@60Hz), DP1.4*1 (4K@120Hz), USB4 Type-C *1 |
| Audio Output | 3.5mm Audio Jack *1 |
| Ports & Buttons |

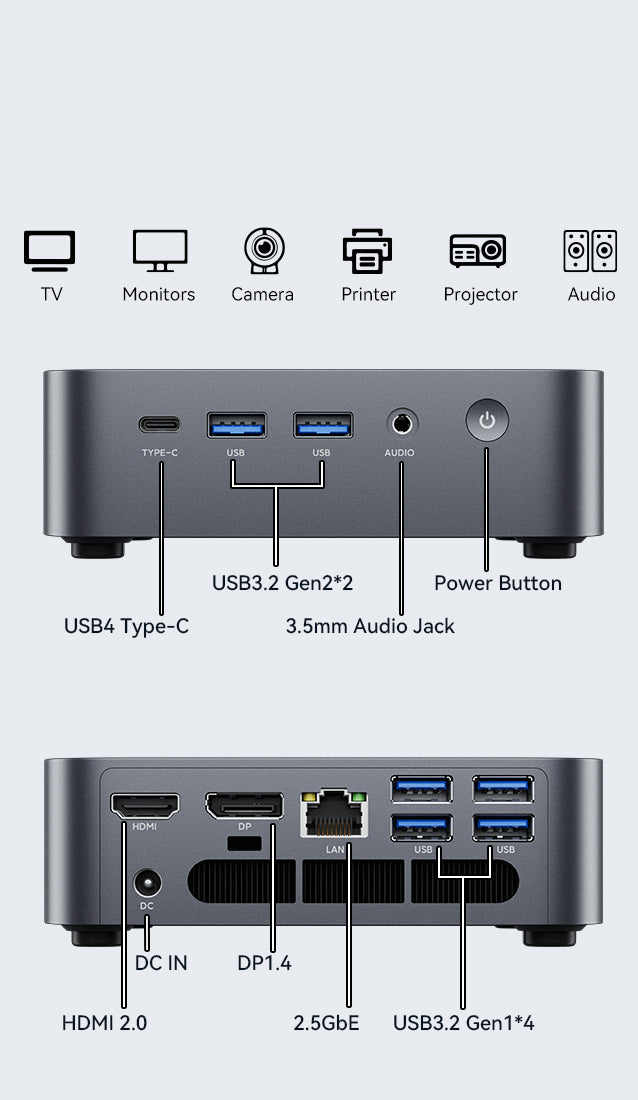

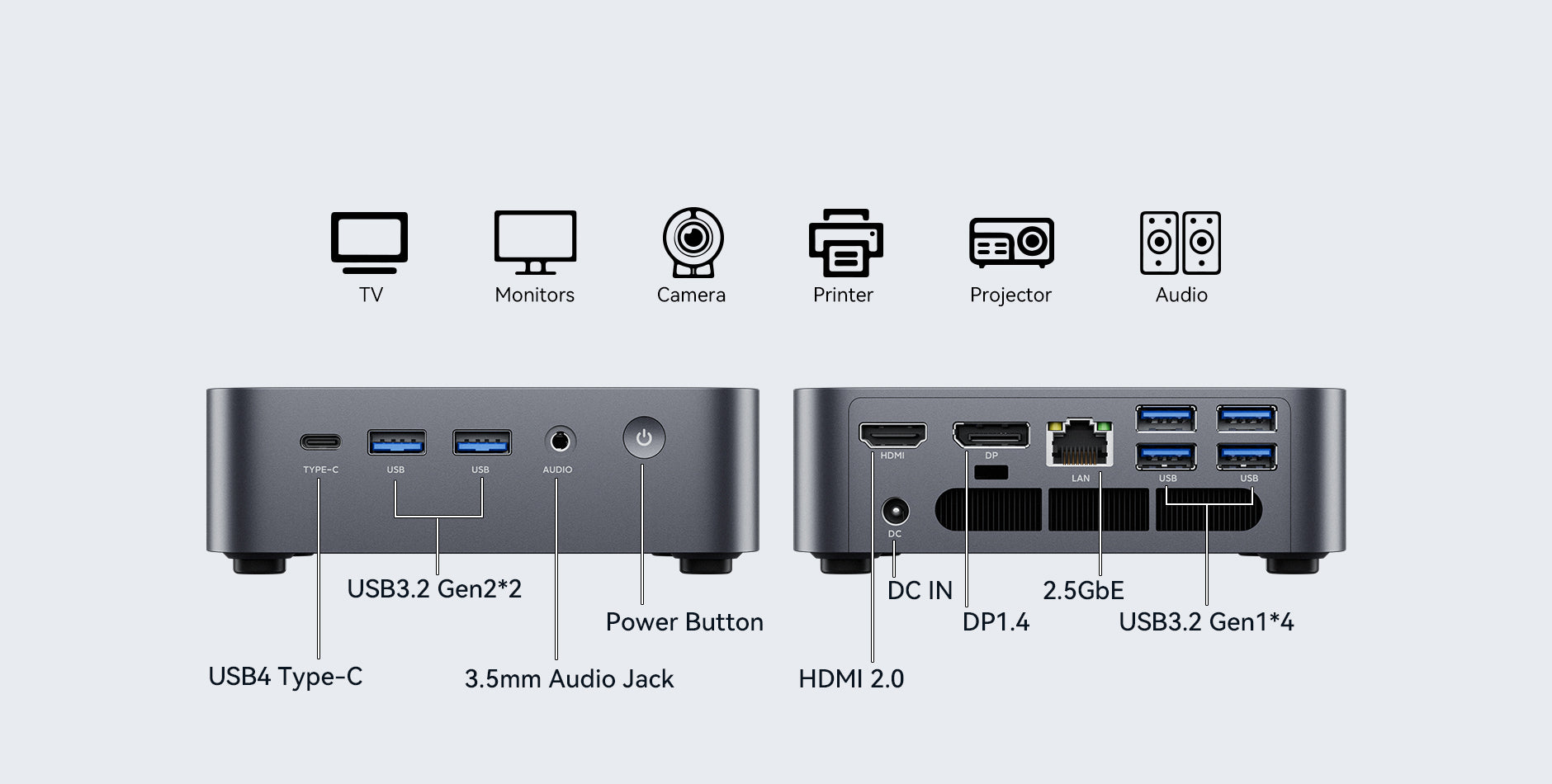

2.5GbE RJ45 Ethernet Port *1 USB3.2 Gen2 Type-A Port*2 USB3.2 Gen1 Type-A Port*4 USB4 Type-C*1 (Support DP1.4, 4K@120Hz) DC IN *1 HDMI 2.0 *1 DP1.4 x1 3.5mm Audio Jack *1 Power Button *1 |
| Power | DC 19V/6.32A, DC Header 5.5*2.1mm |
| System | Windows 11 PRO |
| Dimensions | 128.2mm *128.2mm*41mm |
AMD Ryzen™ 7 6800H
x| Processor | AMD Ryzen™ 7 6800H Processor, 8 Cores/16 Threads, Zen3+ Architecture, 16MB L3 Cache, Base Clock: 3.2 GHz, Turbo Boost: 4.7 GHz |
| Graphics | AMD Radeon™ 680M(Graphics Frequency up to 2200MHz, 12 GPU Cores) |
| Memory |
16GB (8G*2) LPDDR5 6400MT/s; 32GB (8GB*4) LPDDR5 6400MT/s, Onboard LPDDR5 memory, non-expandable and non-upgradeable.
|
| Storage | 512GB M.2 2280 NVMe PCIe3.0×4 SSD; 1TB M.2 2280 NVMe PCIe3.0×4 SSD (2*M.2 2280 Slots, Support M.2 NVMe PCIe 3.0/4.0 SSDs, Not Support SATA SSDs, Up to 4TB) |
| Wireless Connectivity | WiFi 6+BT5.2 |
| Video Output |
HDMI 2.0*1 (4K@60Hz） |
| Audio Output | 3.5mm Audio Jack *1 |
| Ports & Buttons | 10/100/1000Mbps/2.5Gbps adaptive RJ45 Gigabit Ethernet Port ×1 USB3.2 Gen2 Type-A Port ×2 (10Gbps, front) USB3.2 Gen1 Type-A Port ×4 (5Gbps, back) USB3.2 Gen 2 Type-C ×1 (Support DP1.4, 4K@60Hz, maximum 10Gbps data transfer) DC IN ×1 HDMI 2.0 ×1 DP1.4 ×1 3.5mm Audio Jack x1 Power Button x1 |
| Power | DC 19V/3.42A, DC Header 5.5*2.1mm |
| System | Windows 11 PRO |
| Dimensions | 128.2 x 128.2 x 41mm |
FAQ
xDriver Download for M1

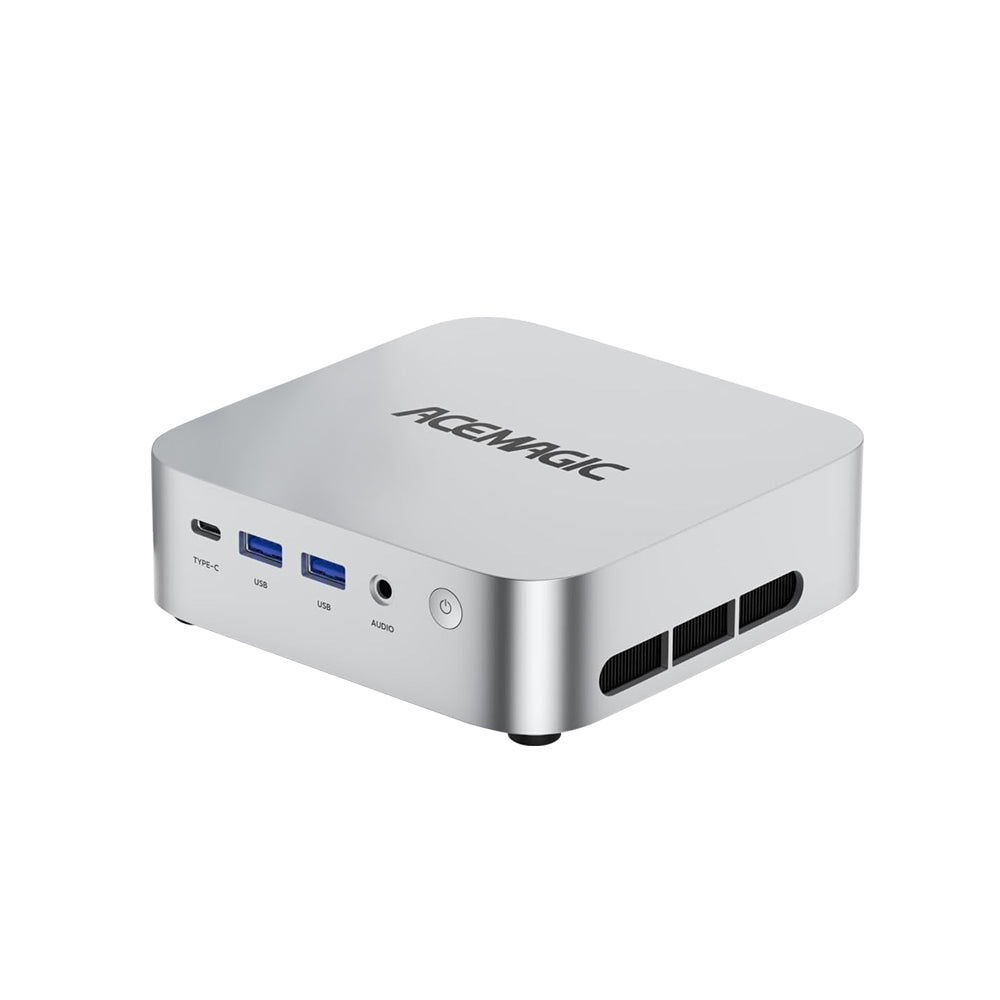

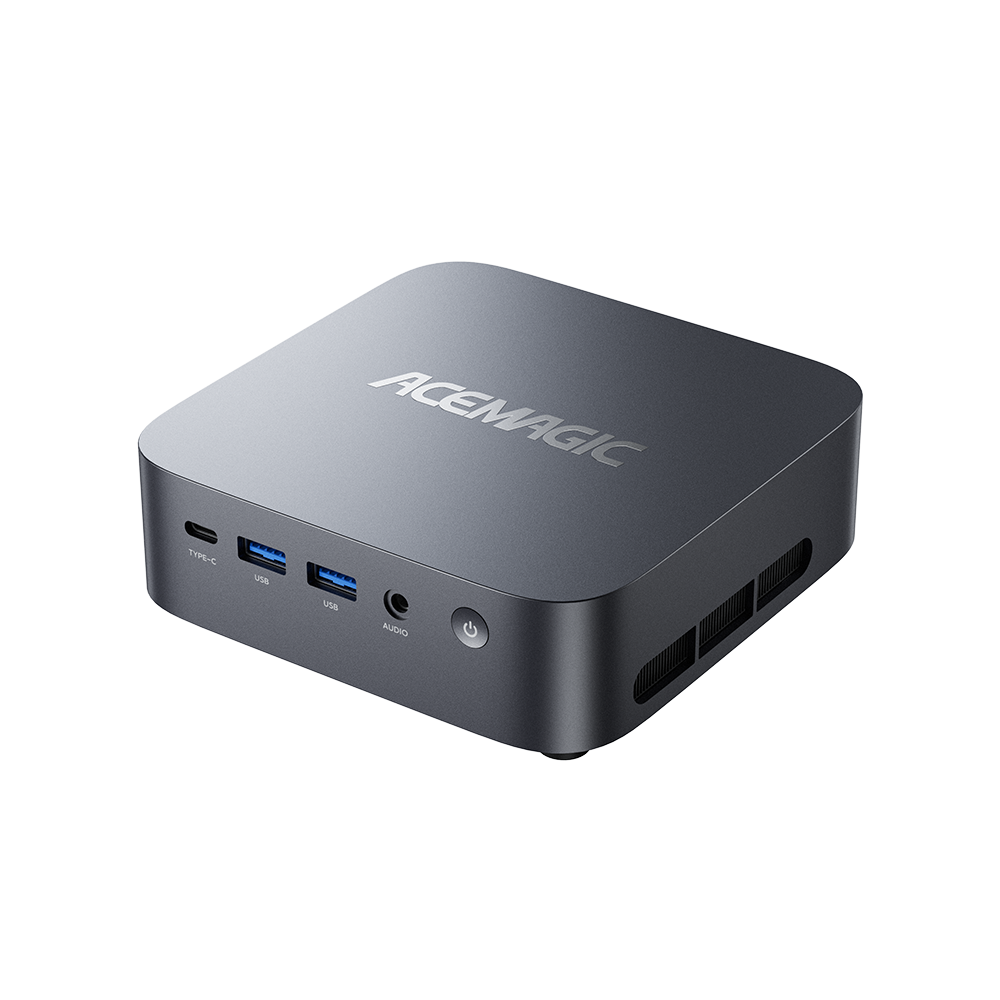

ACEMAGIC M1
Why is the M1 MINI PC considered the top choice for creative work and office tasks?

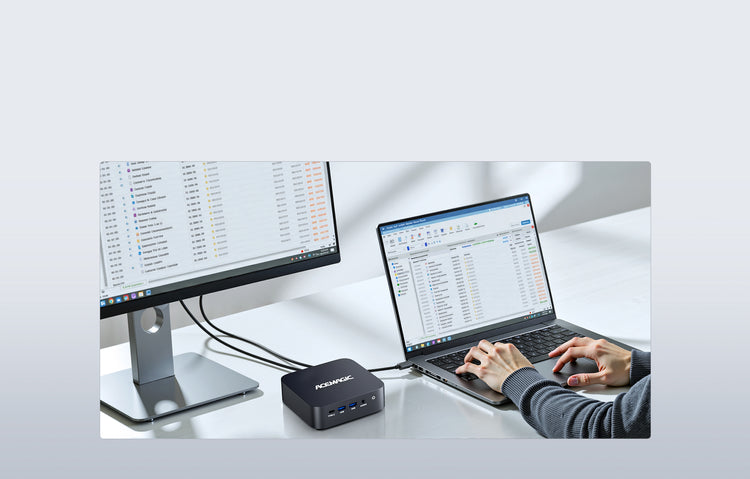

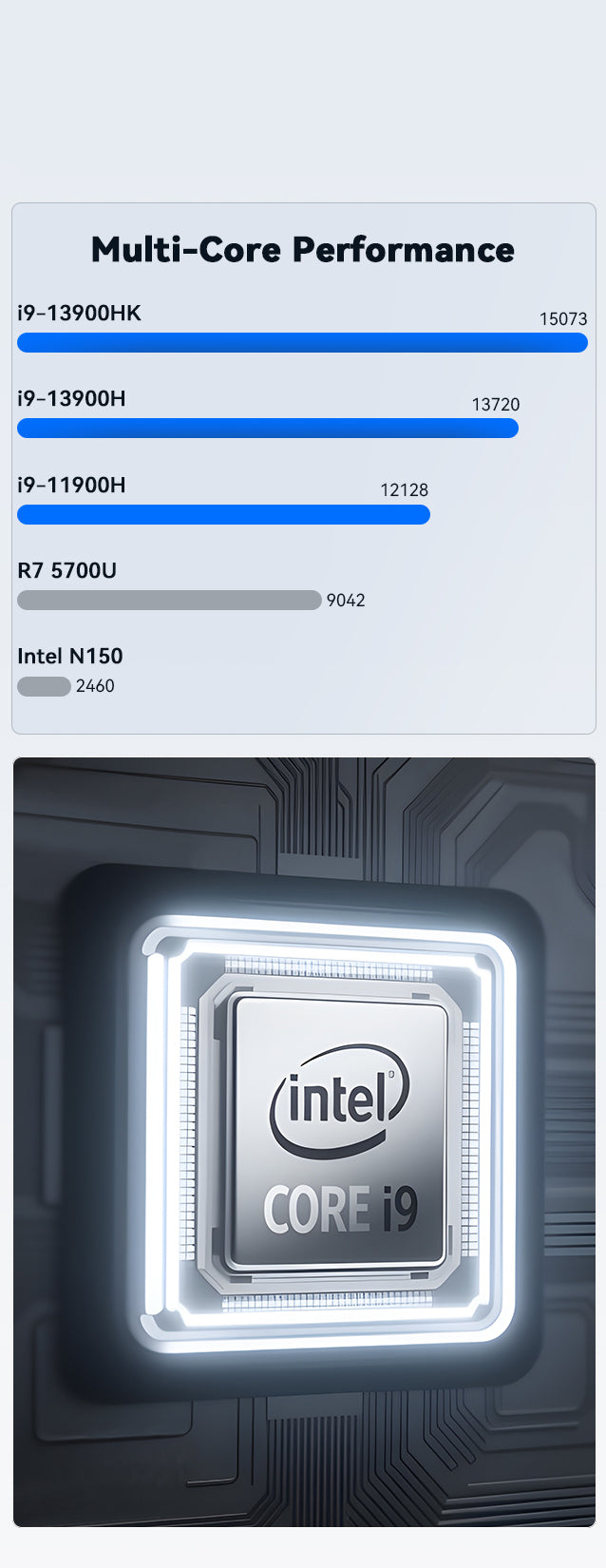

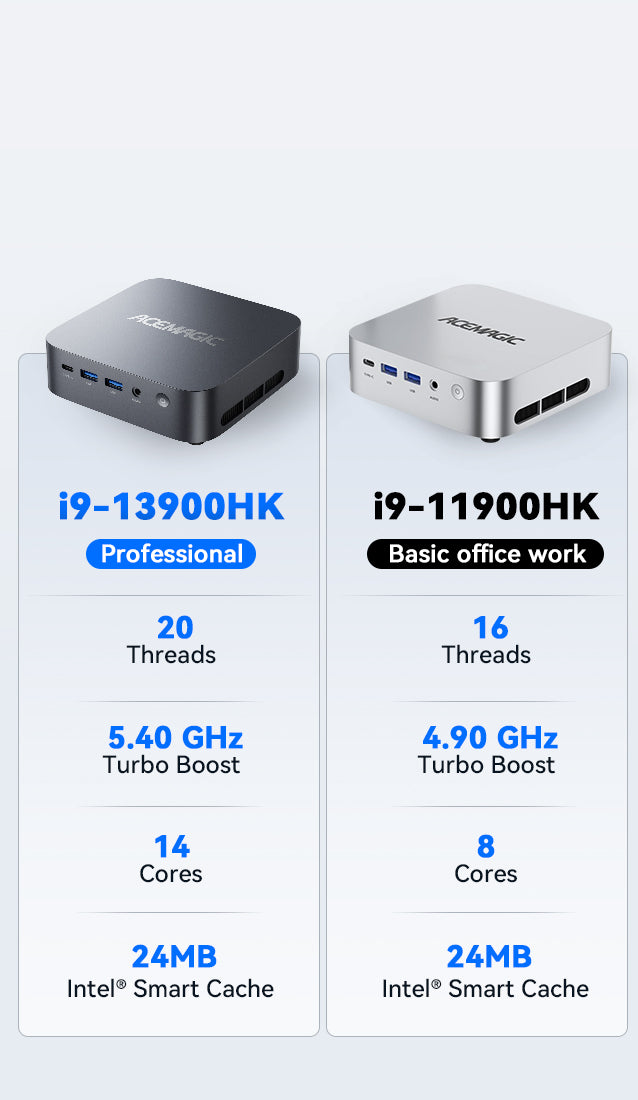

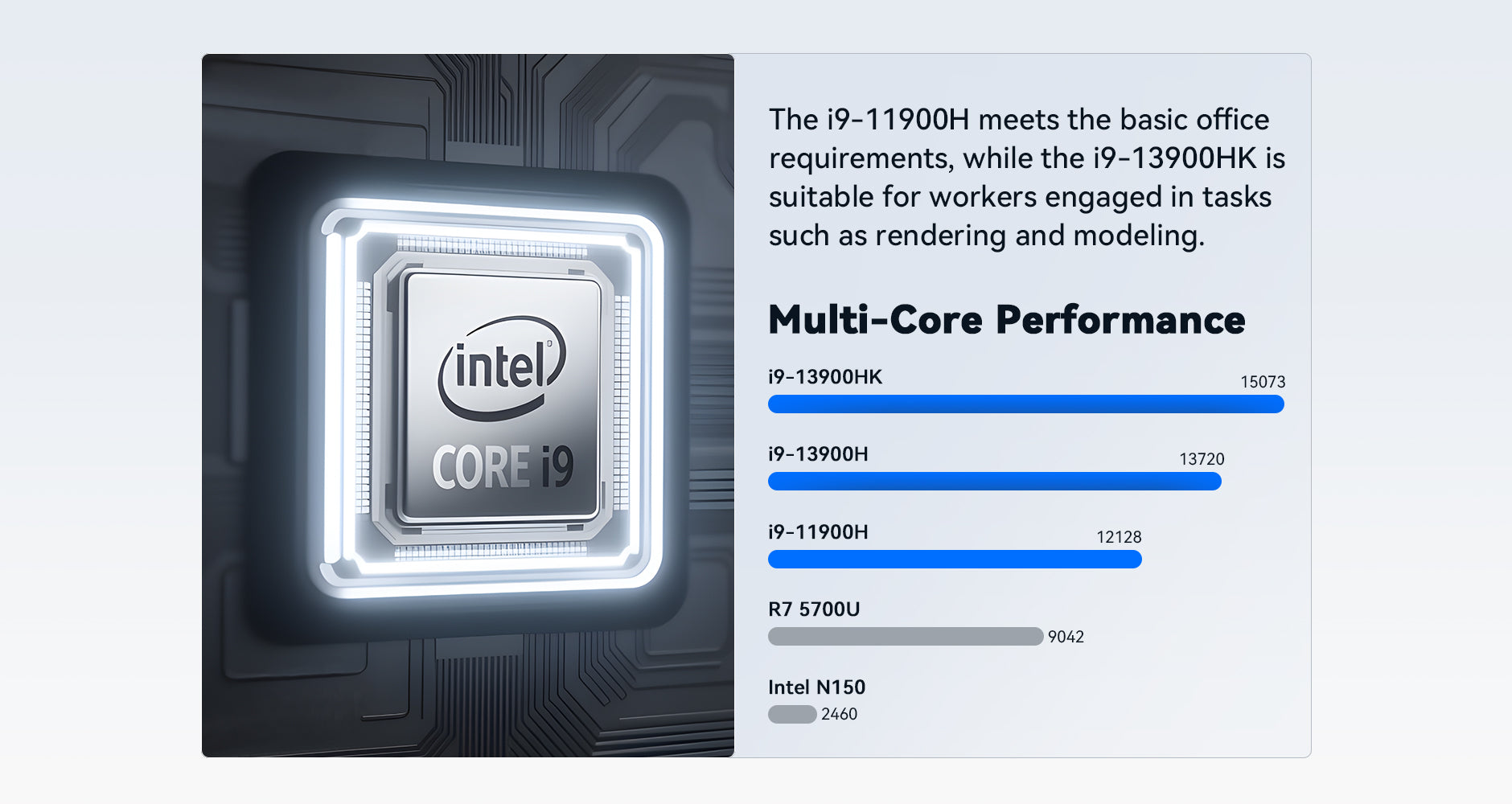

Offer different options for basic office work and professional creation

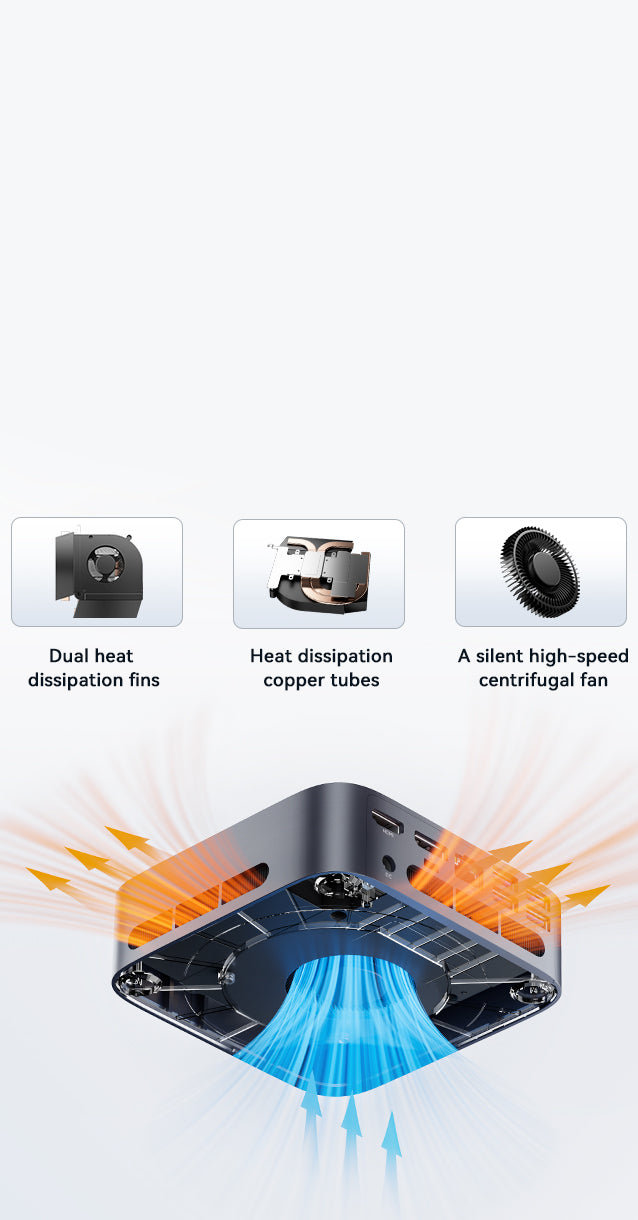

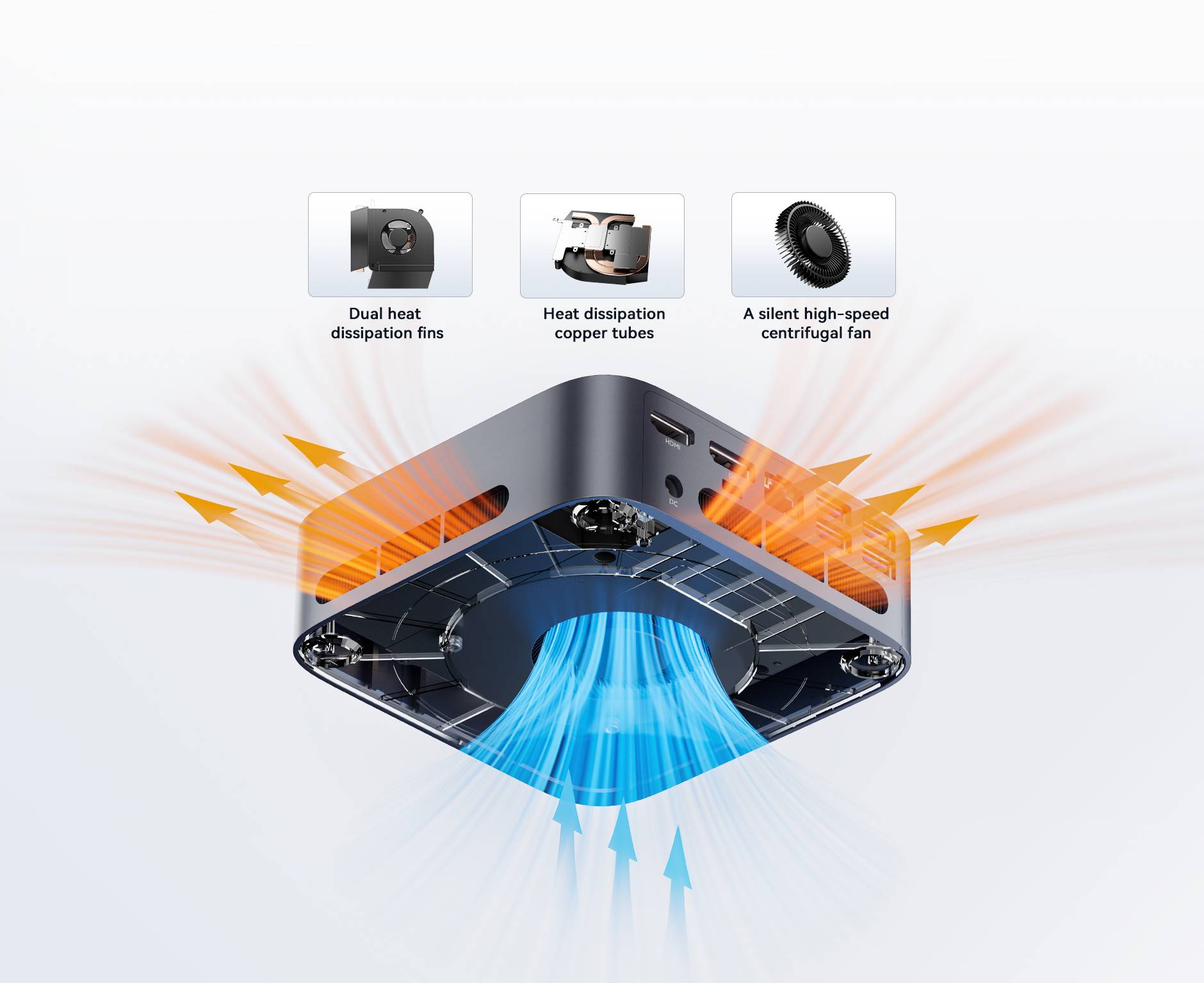

Efficient heat dissipation, effortlessly releasing the highest performance

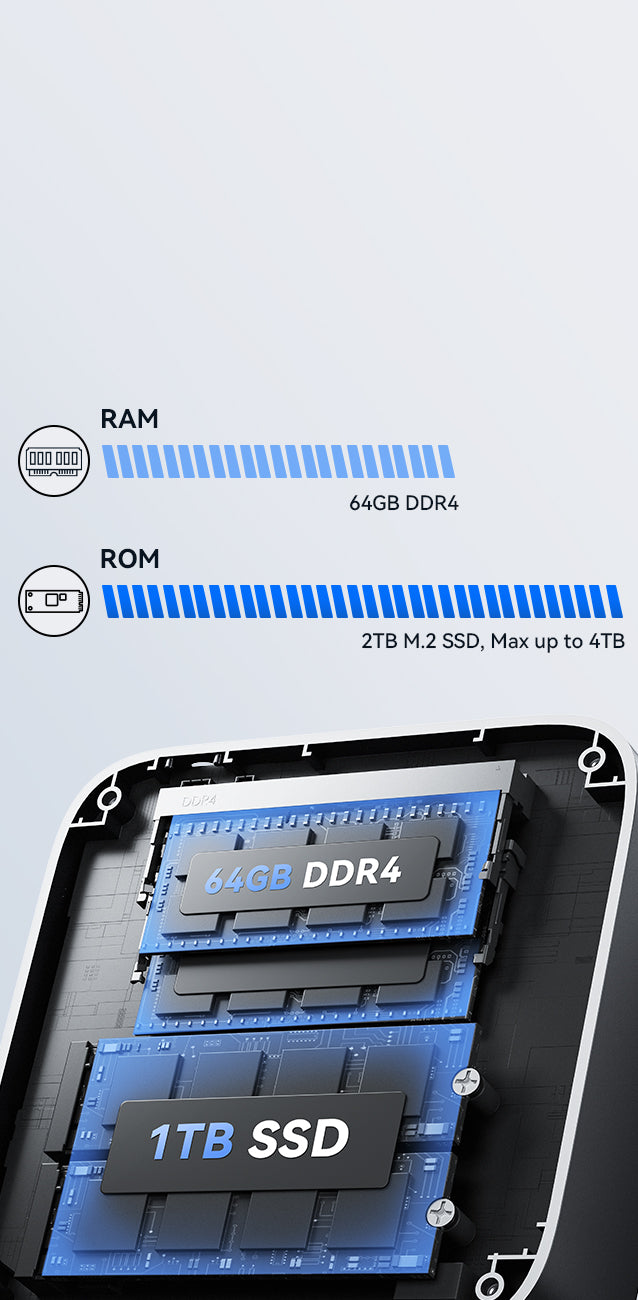

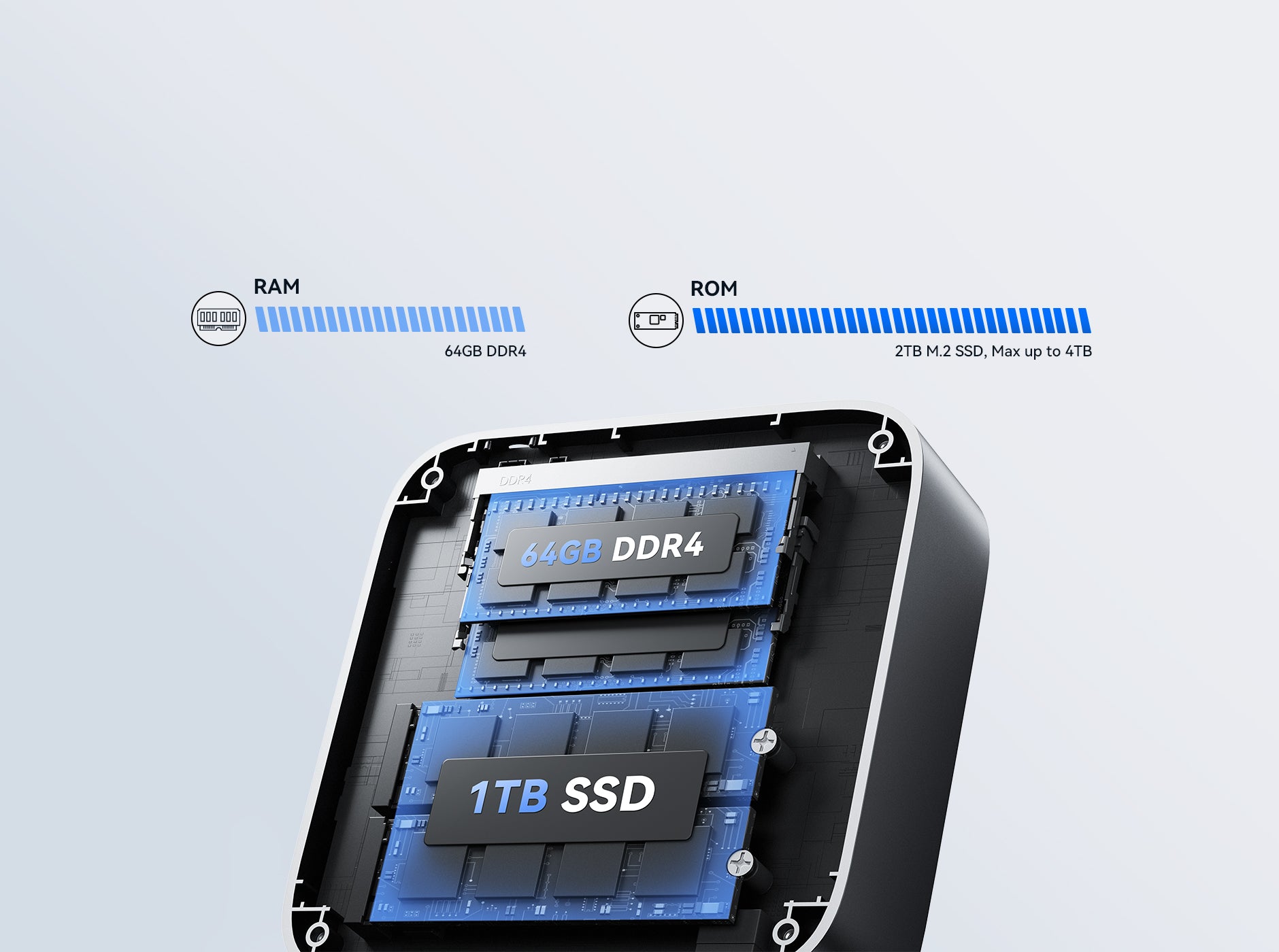

Optional RAM and ROM capacity

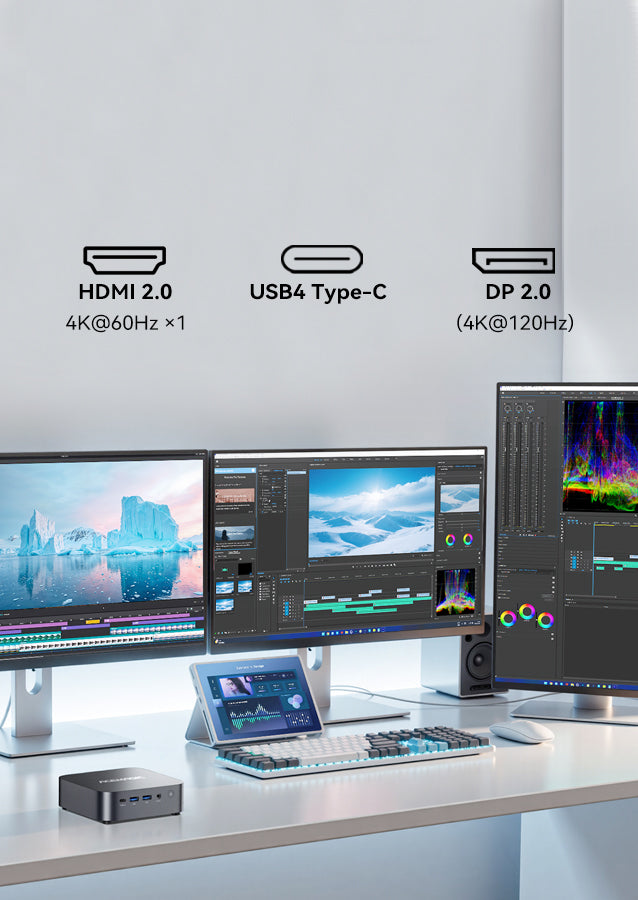

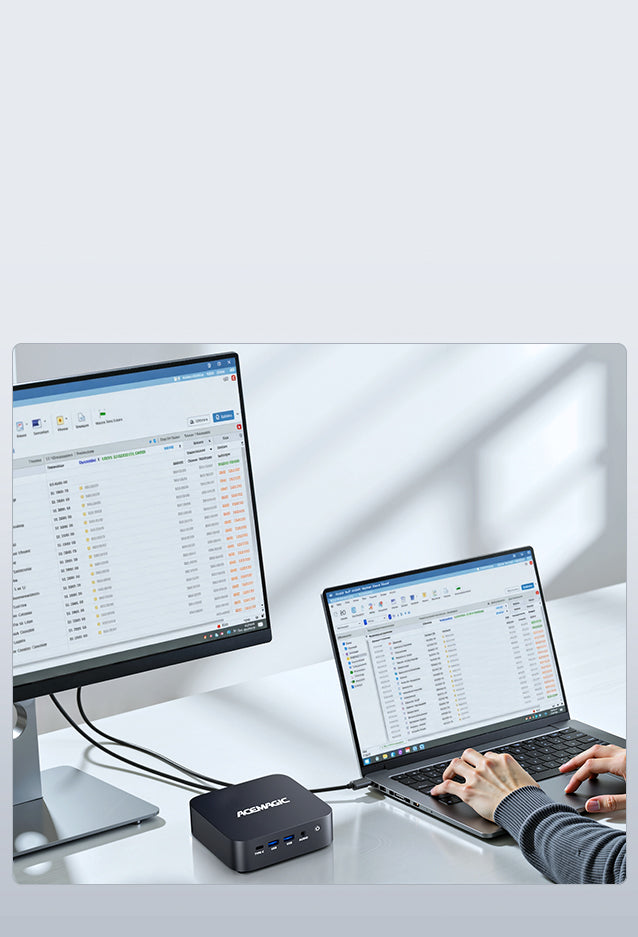

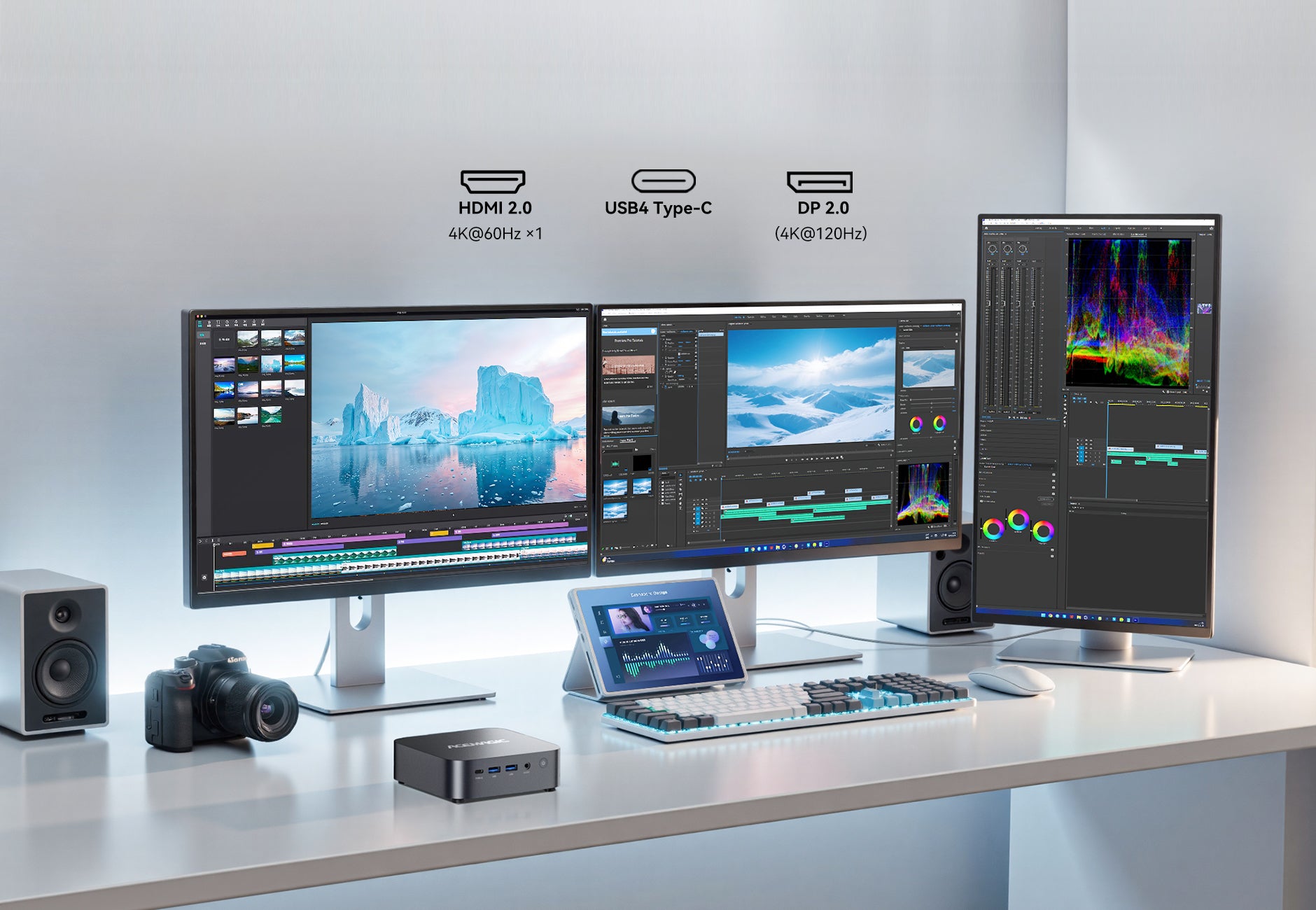

Three 4K Displays for Work Efficiency
Provide users the right to make different choices.

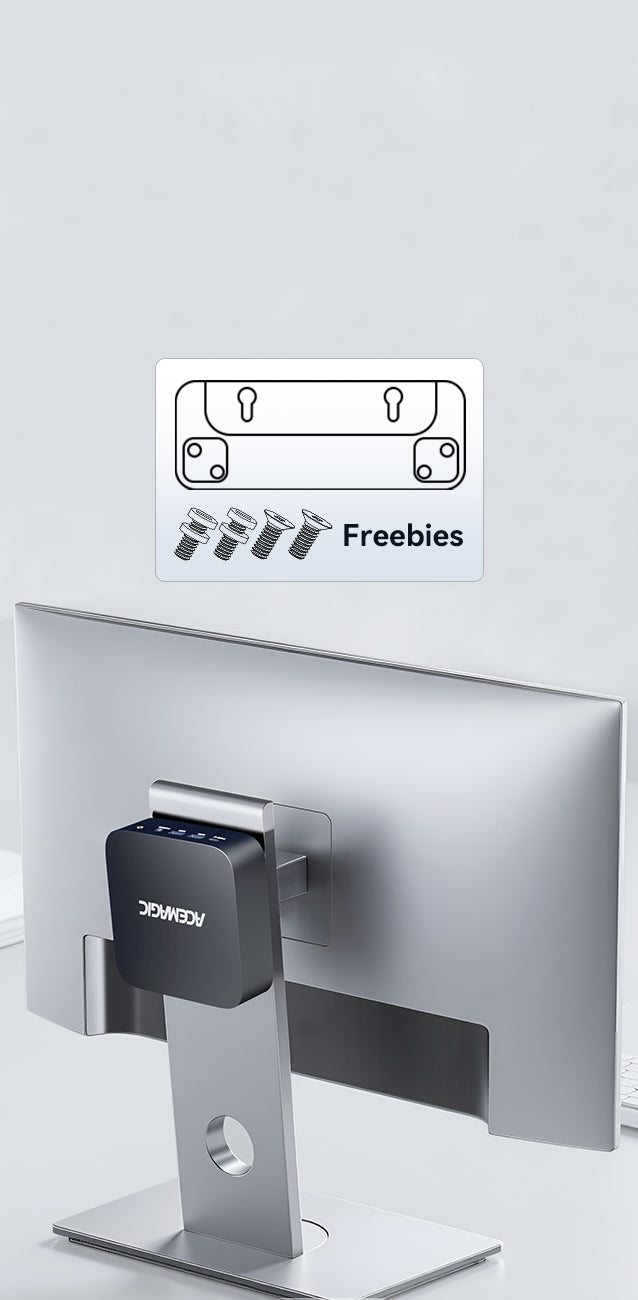

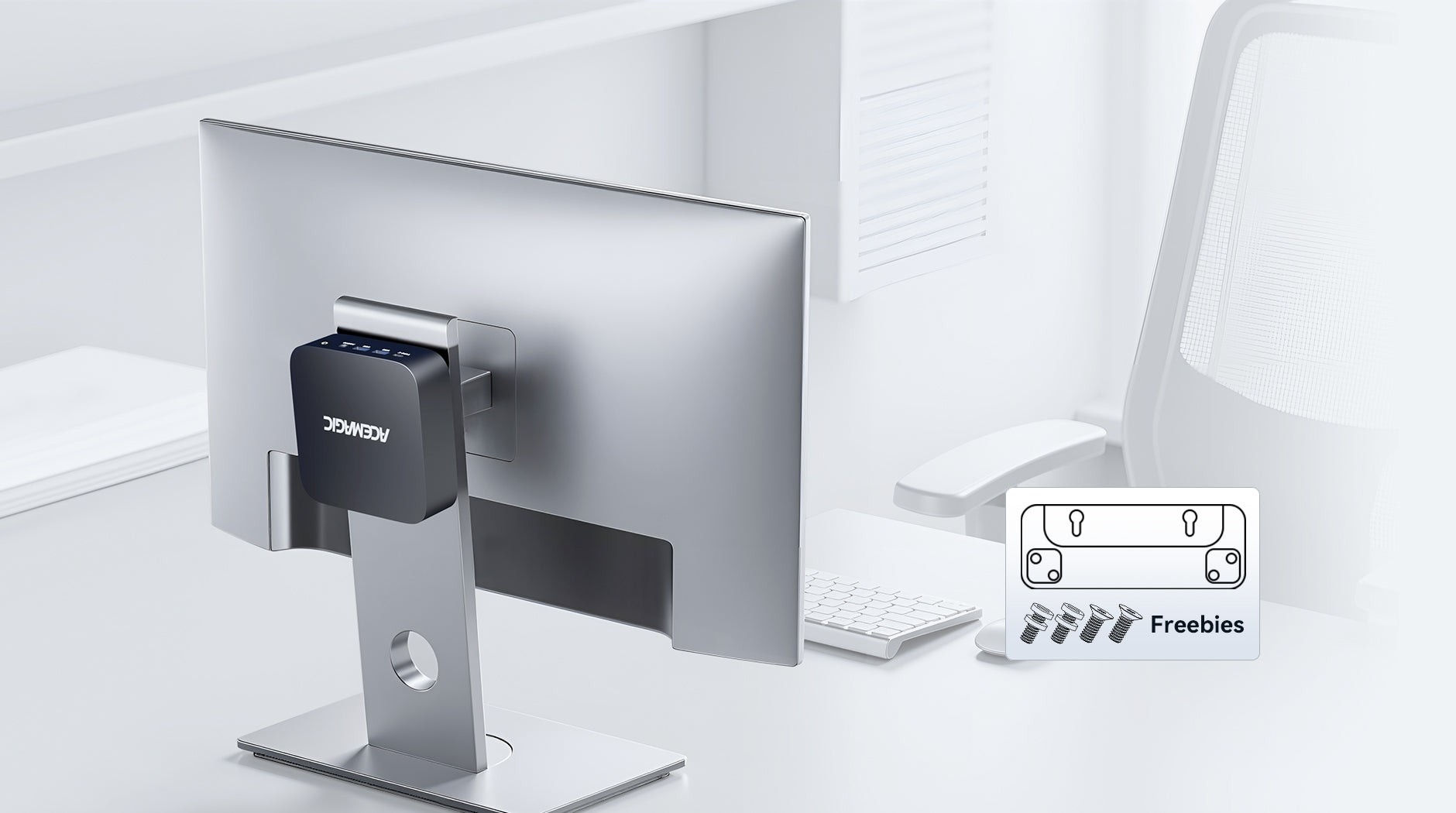

Simple and versatile，Wall-mounted design

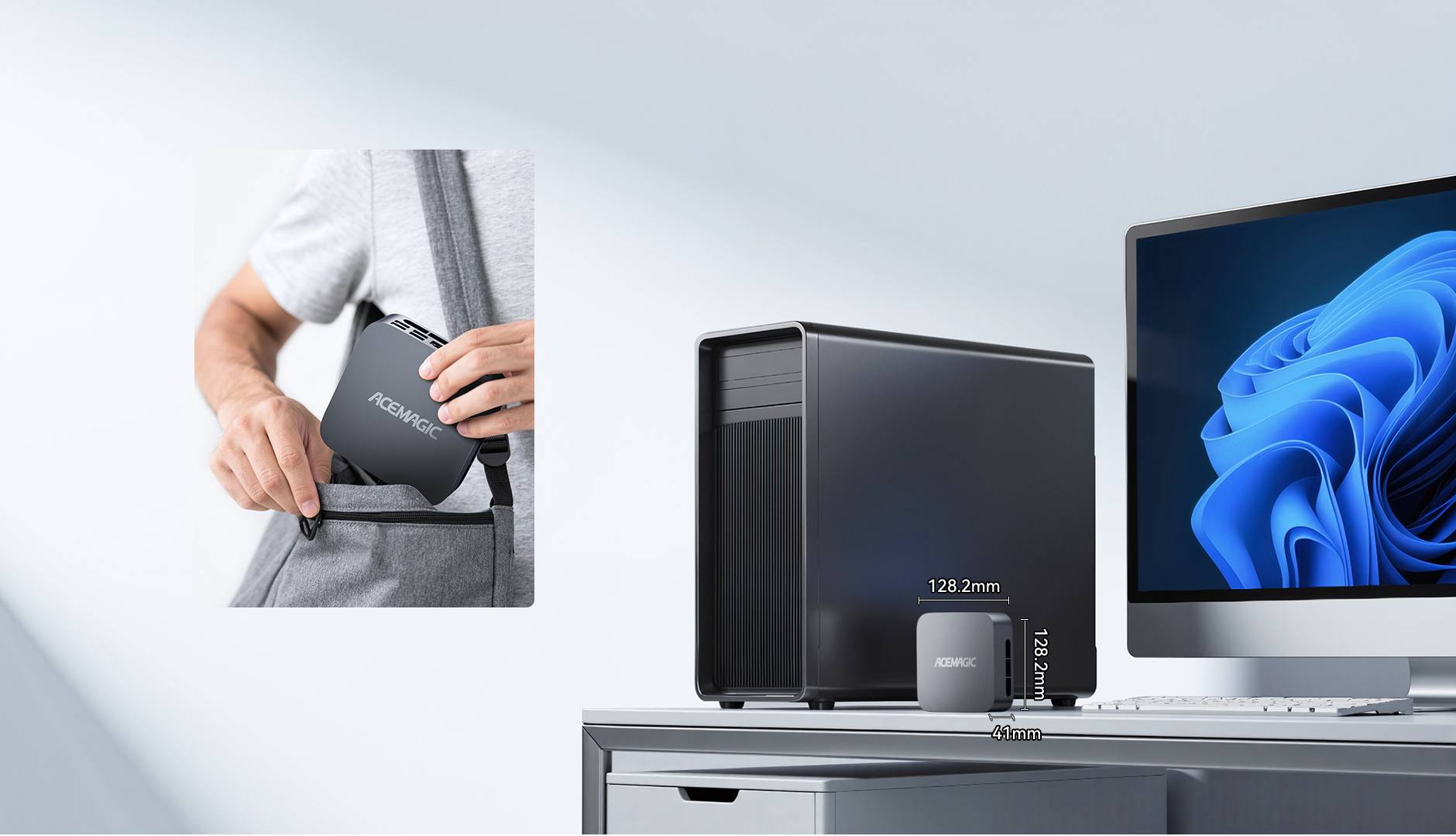

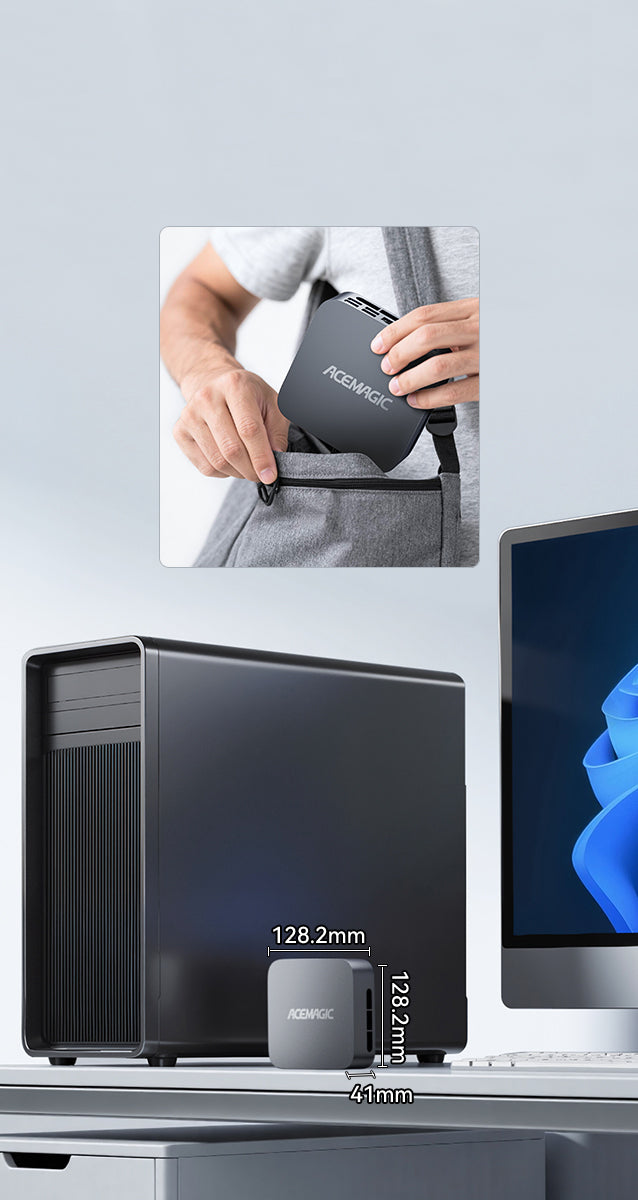

Compact design, with no reduction in performance
2-year warranty
Multiple interfaces, easy to expand

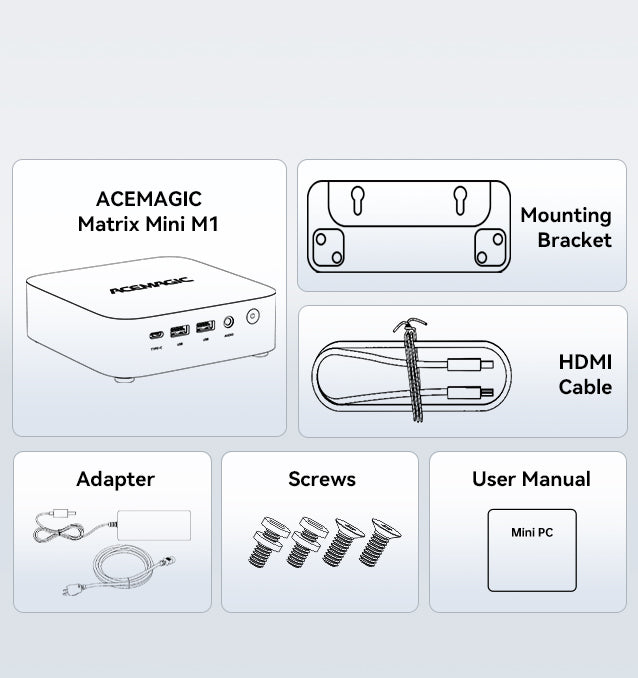

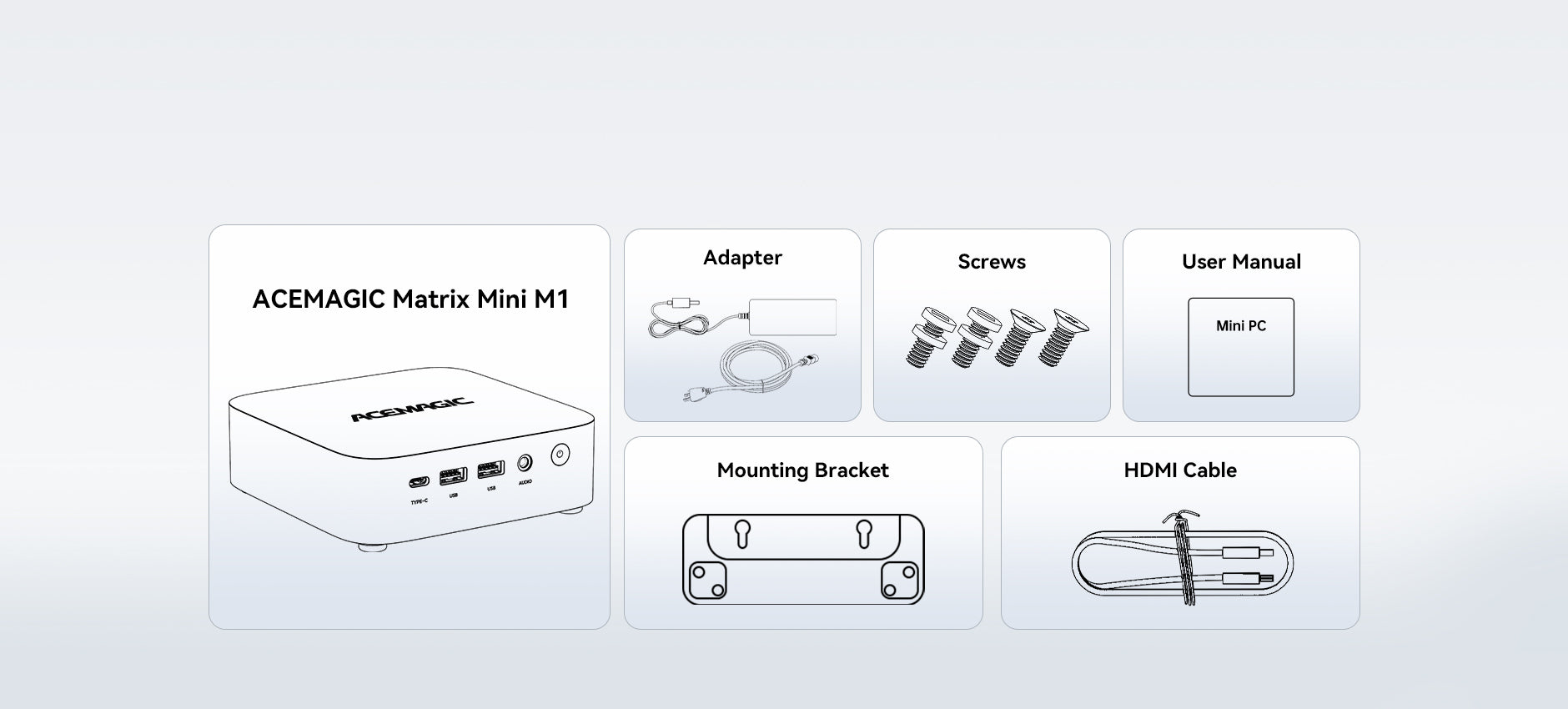

Accessories
