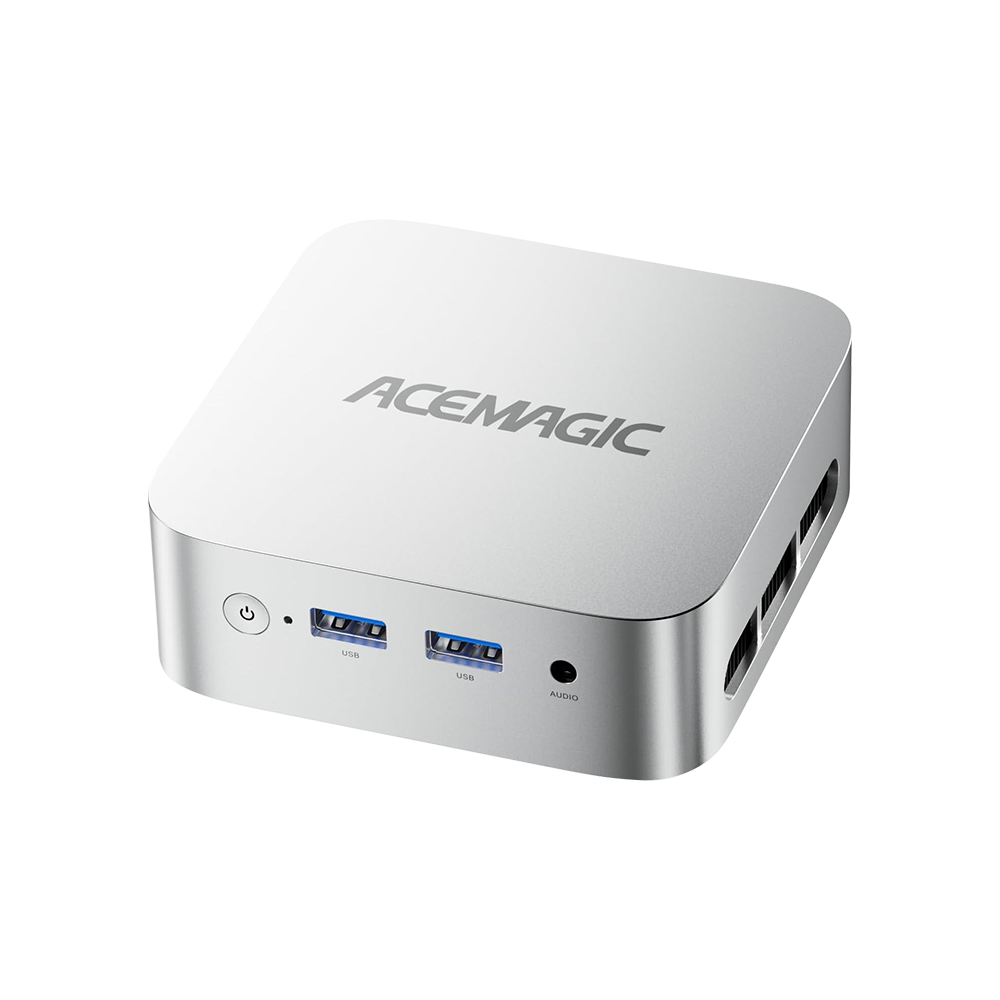

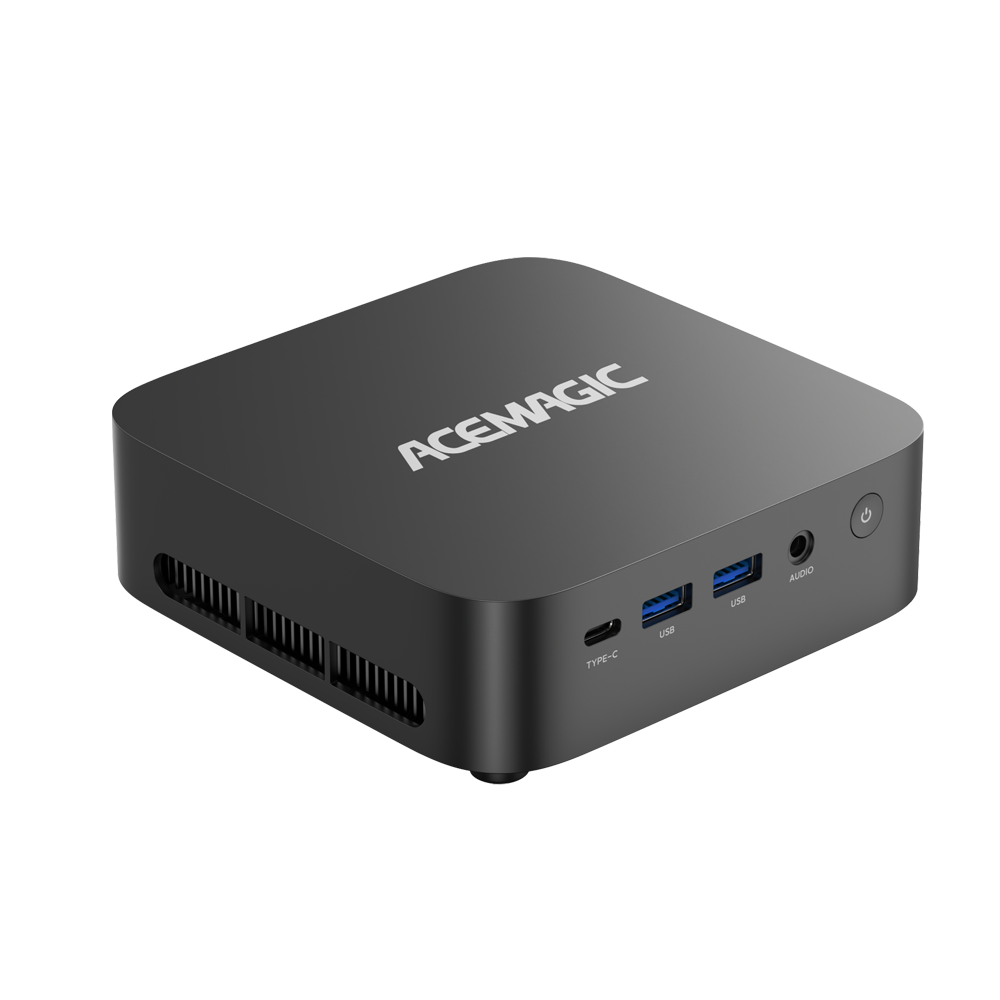

ACEMAGIC K1 Mini pc

Processor

AMD Ryzen 5 7430U Processor, 6 Cores/12 Threads, Zen3 architecture, TSMC7nm FinFET processor technology, 16MB L3 cache, base clock frequency (main frequency): 2.3GHz, maximum acceleration clock frequency (turbo frequency): 4.3GHz

Graphics

AMD RadeonTM Graphics

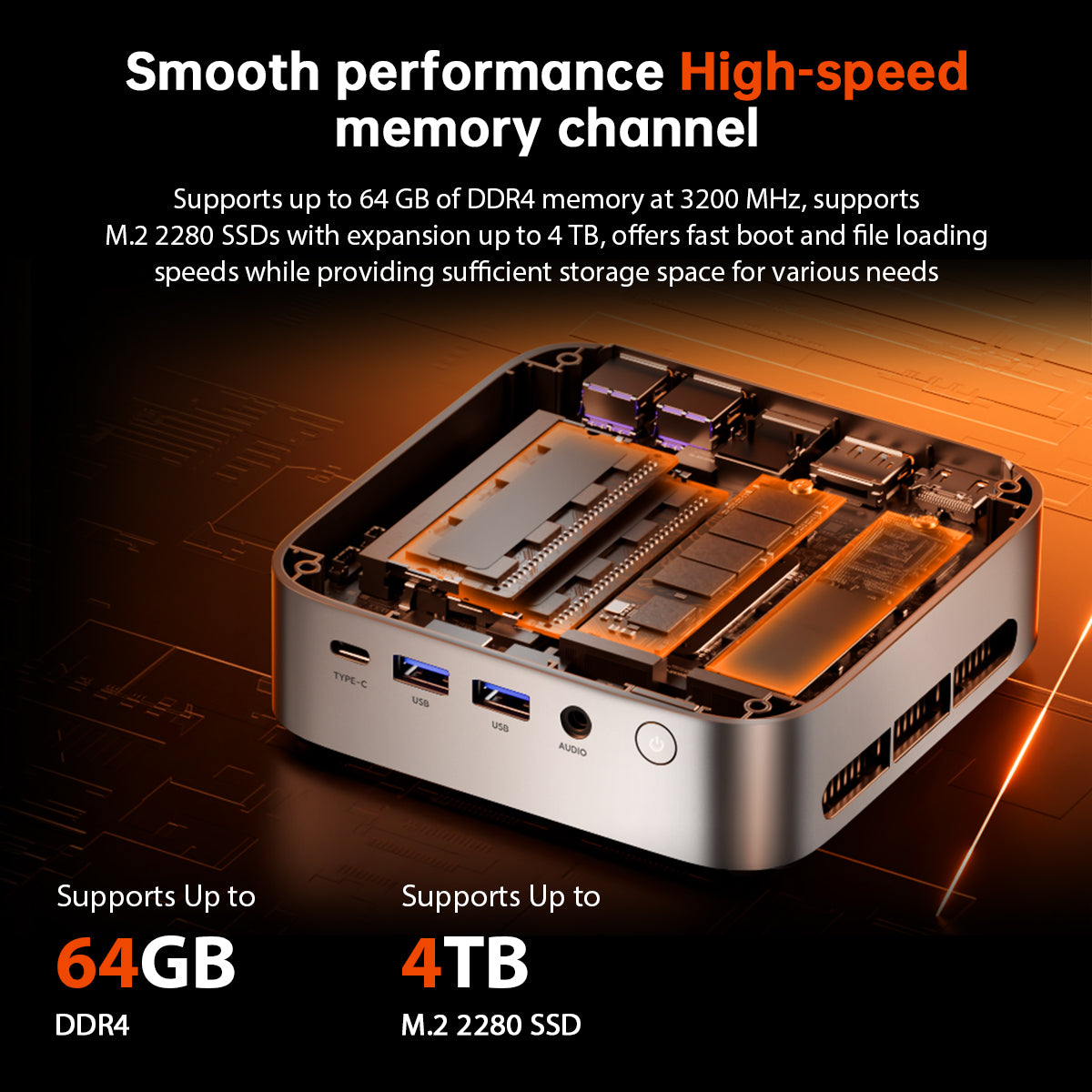

Memory

16GB: 16GB DDR4 2666MHz

32GB:  2*16GB DDR4 2666MHz Dual Channel

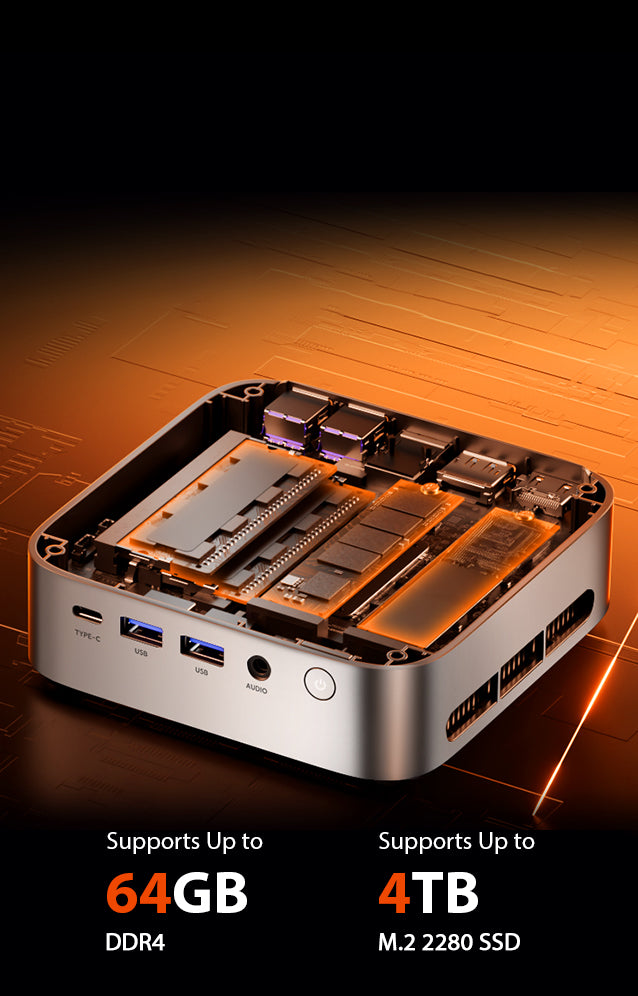

Storage

M.2 2280 SSD，512GB

Wireless Connectivity

WIFI 6 + BT5.2 (M.2 2230)

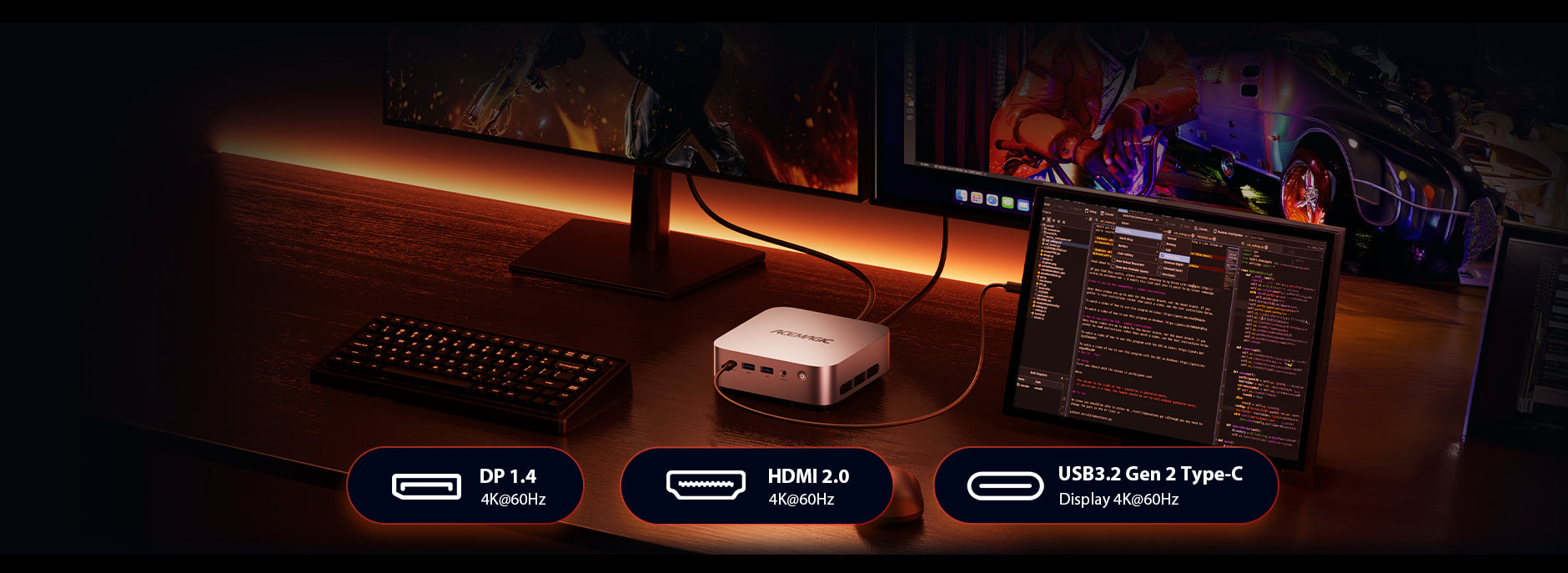

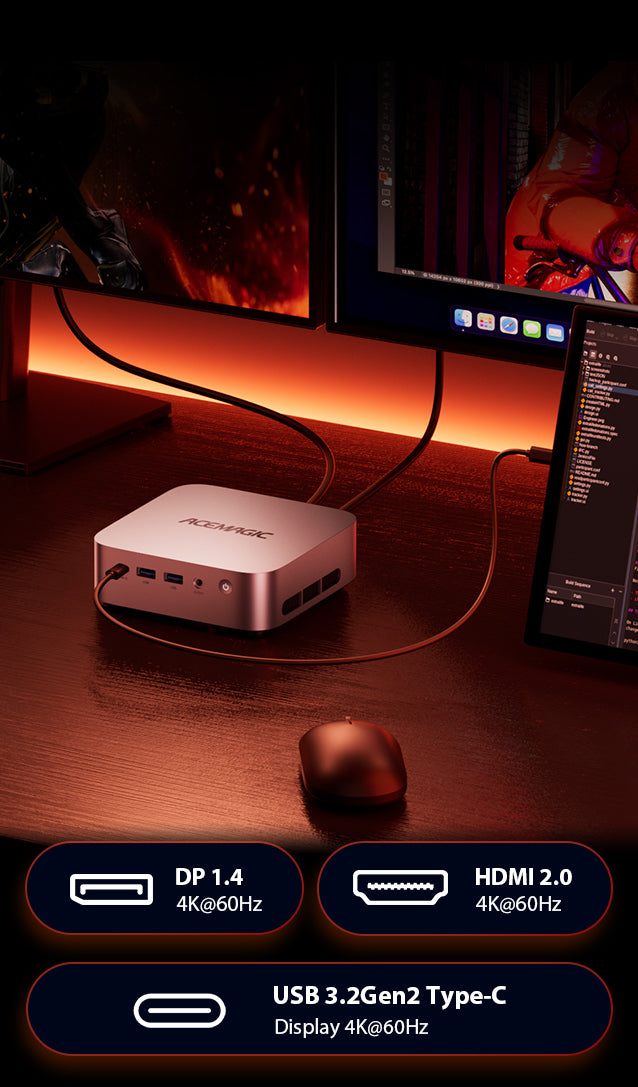

Video Output

HDMI2.0 (4K@60Hz) ×1
USB3.2 Gen2 Type-C (4K@60Hz) ×1

DP1.4b x 1 (4K@60Hz)

Audio Output

HDMI 2.0 x1

USB3.2 Gen2 Type-C x1

DP1.4b x1

3.5mm Audio Jack ×1

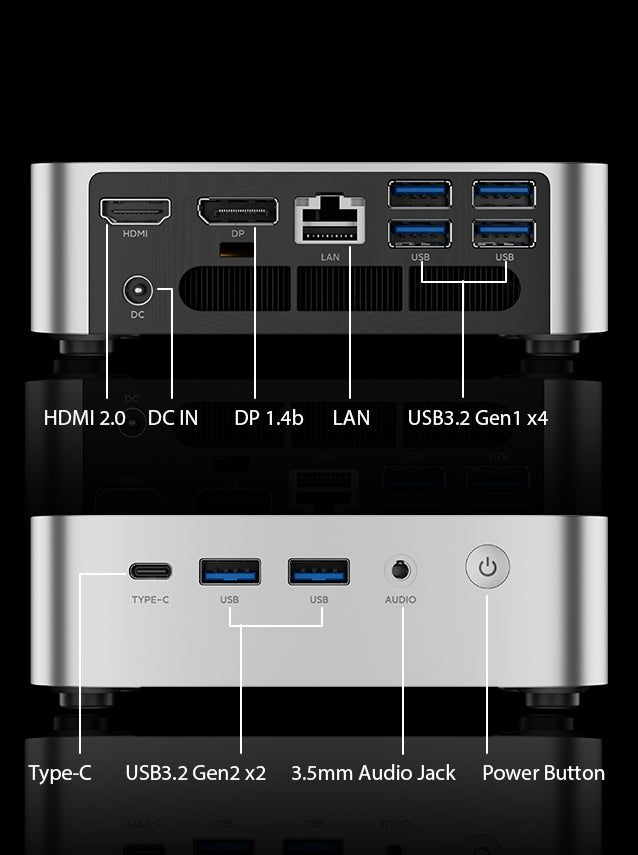

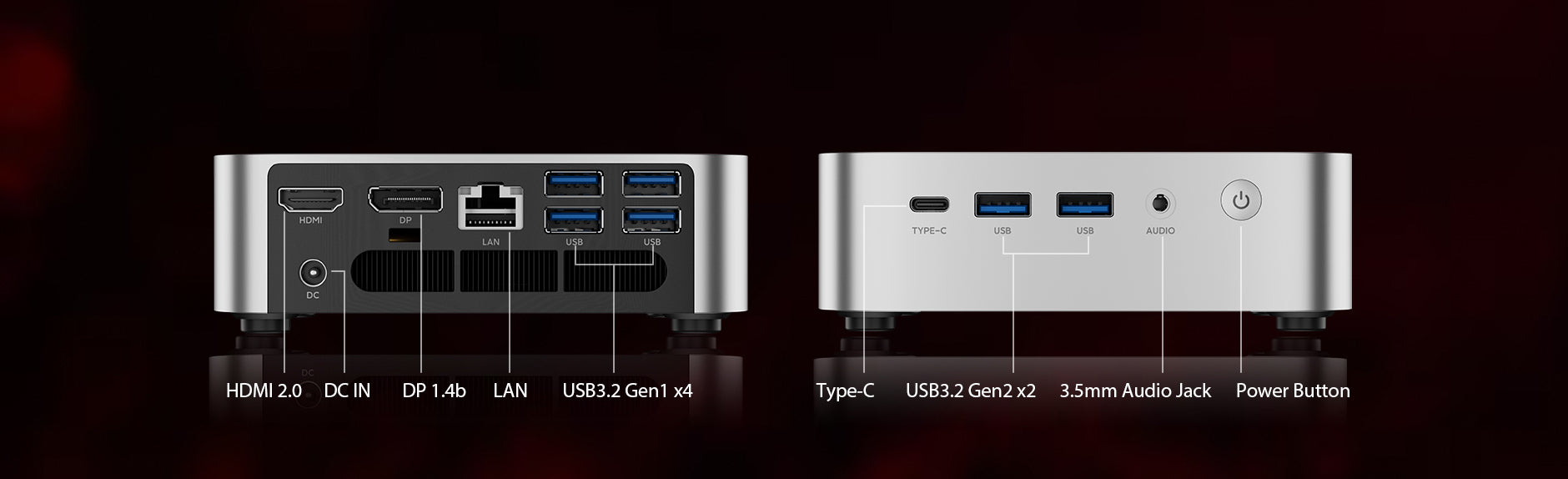

Ports & Buttons

10M/100M/1000Mbps adaptive RJ45 Gigabit Ethernet Port x1
USB3.2 Gen2 Type-A Portx2 (10Gbps, front port)
USB3.2 Gen1 Type-A Portx4 (5Gpbs, rear port)
USB3.2 Gen2 full-function Type-C (Support DP1.4, 4K@60Hz, maximum 10Gbps datatransfer, PD output) ×1
DC IN x1
HDMI 2.0 ×1
DP1.4bx1
3.5mm Audio Jack x1
Power Button x1

System

Windows 11 pro

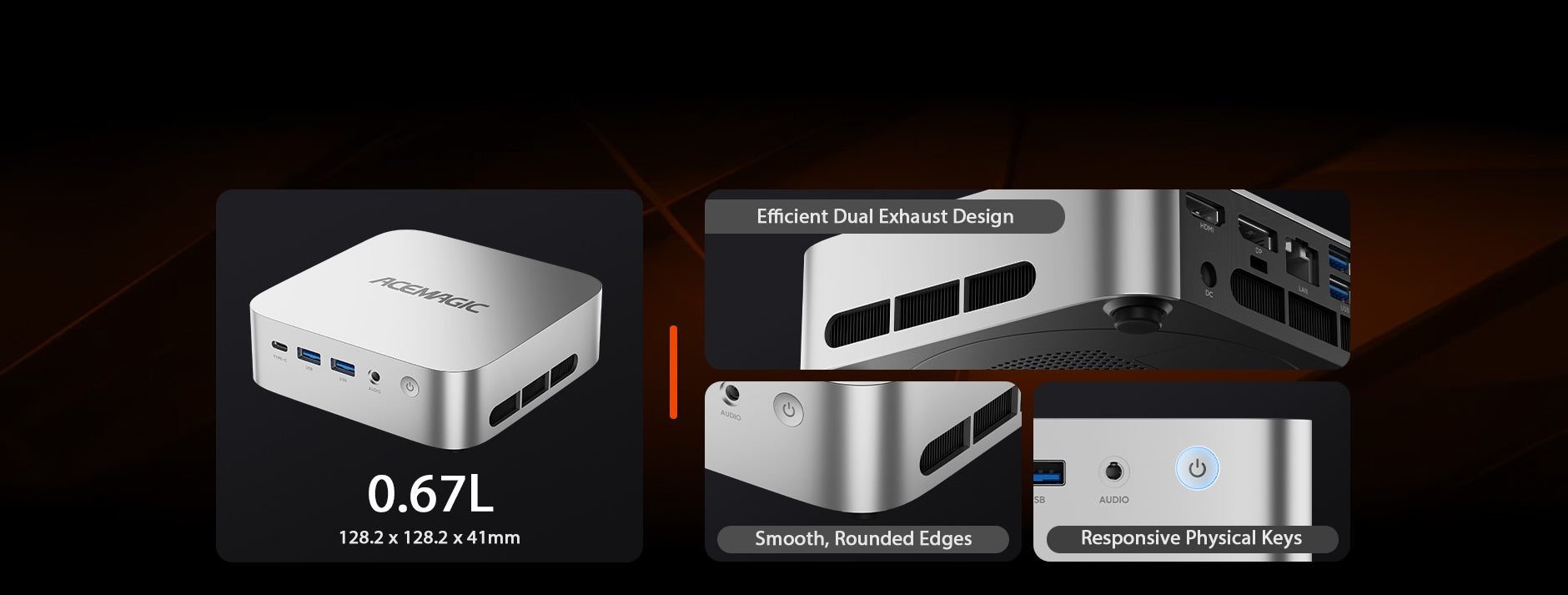

Dimensions

128.2*128.2*41mm
