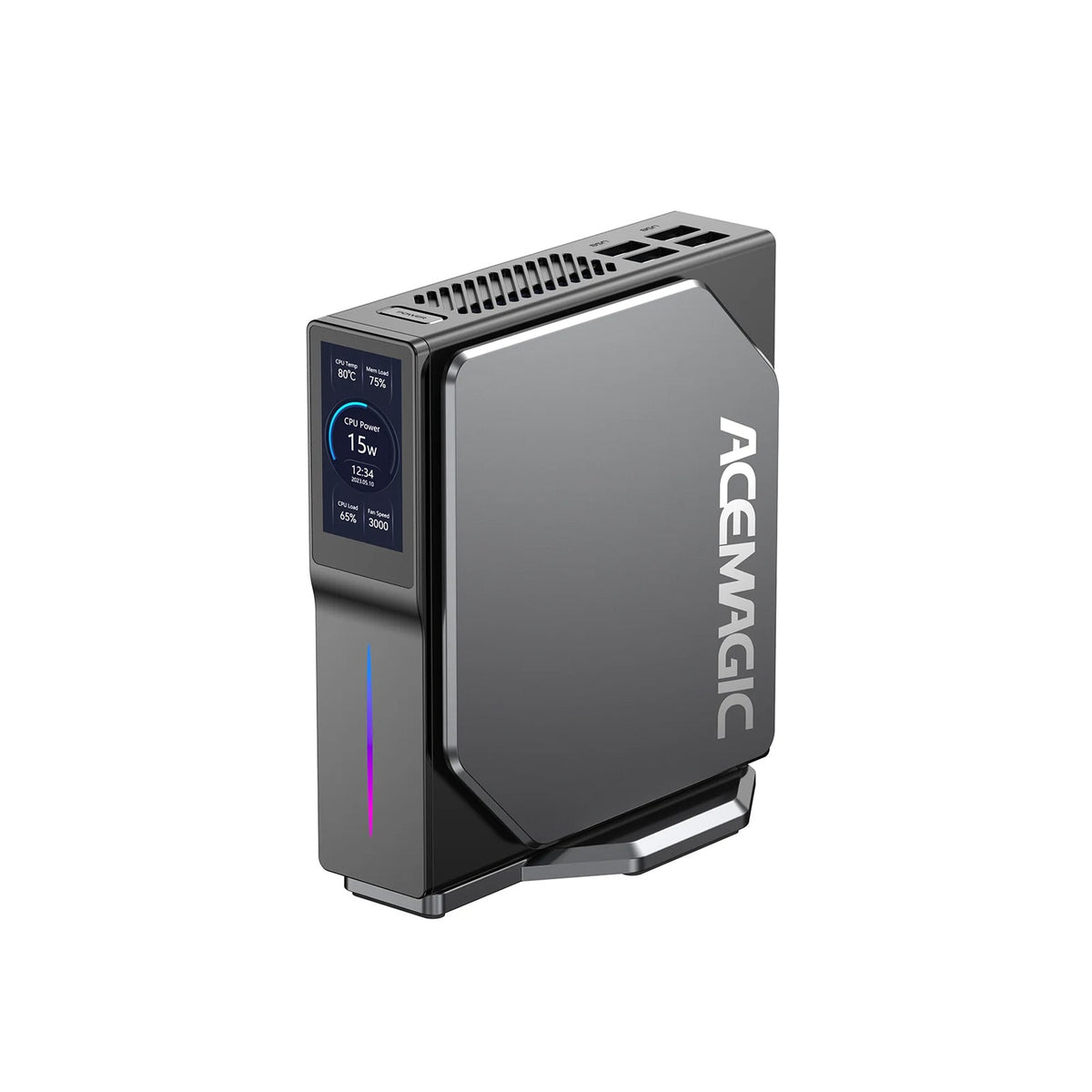

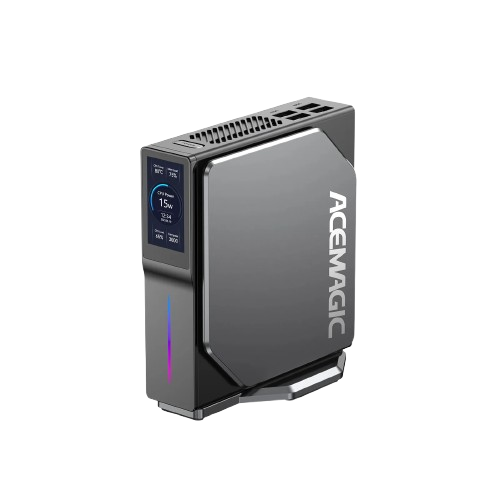

Acemagic S1 N97
Description
xThe ACEMAGIC S1 is a powerful vertical mini desktop PC featuring the 12th Gen Alder Lake-N97 processor, surpassing previous models by up to 48% in performance.
It’s ideal for a variety of tasks including office work, online education, and home entertainment. With 16GB DDR4 RAM and 512GB M.2 NVMe SSD, expandable to 2TB, it offers quick upgrades thanks to its unique magnetic design.
Is advanced with WiFi6, BT5.2, and Dual Gigabit LAN, while dual HDMI 2.0 ports enable efficient multitasking across two 4K displays. The mini PC also boasts a customizable LCD display with RGB lighting for a personalized touch and monitoring system stats.
Pre-installed with Windows 11 and supporting Linux, it features space-saving design options, ultra-quiet cooling, and is easily portable, redefining convenience in computing.
Specification
xProcessor
Intel® Processor Alder Lake-N N97, 4 Cores/4 Threads
(6 MB Cache, Basis frequency 2.0 GHz, Turbo frequency 3.6 GHz)
Graphics
Intel® UHD graphics (maximum dynamic graphics frequency 1.20 GHz, execution units 24 EU)
Memory
16 GB DDR4 2666 MHz
(SO-DIMM slot × 1, up to 16 GB)
Storage
512 GB M.2 2280 SATA SSD (reading and writing speed 500–550 MB/s) Optional configuration
(M.2 Dual hard drive places, 1x M.2 slot for NVME PCIE3.0 SSD or SATA SSD, 1x M.2 slot for SATA SSD, individual hard drive plug max. 2 TB)
Wireless Connectivity
On board WIFI 6+BT 5.2
Video Output
HDMI Type A 2.0 x2 (4K@60Hz)
Audio Output
HDMI Type A 2.0 x 2
3.5mm Phone Jack x1

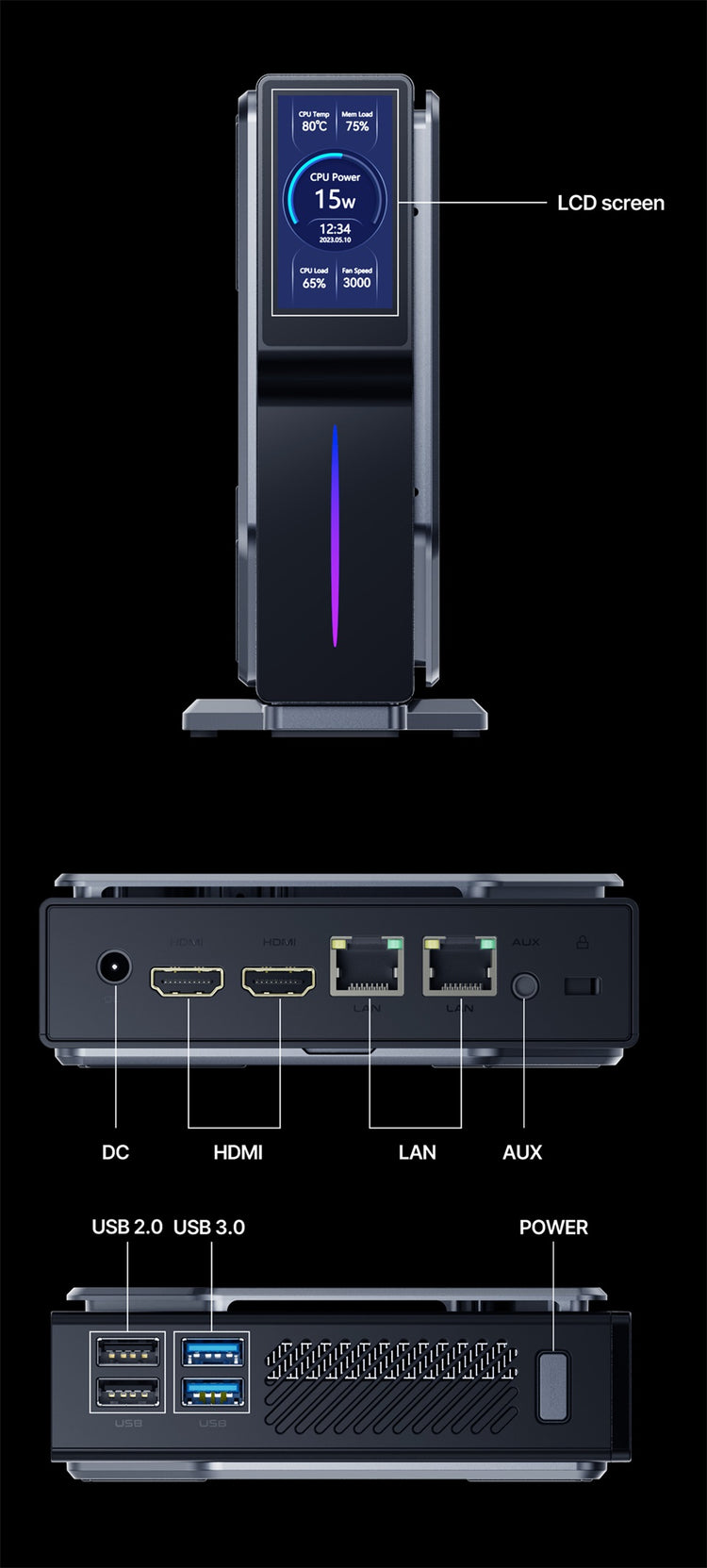

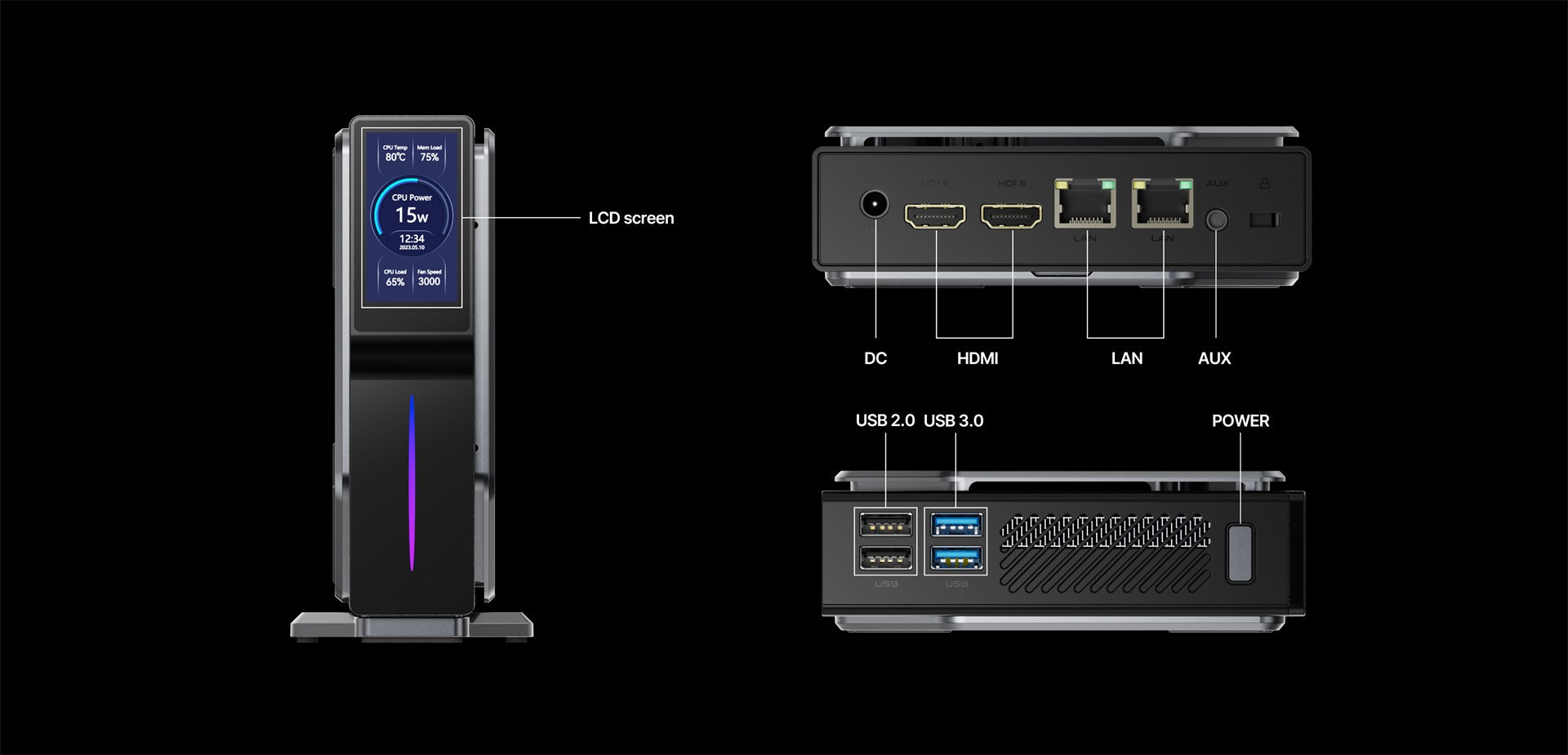

Ports & Buttons
10M/100M/1000M adaptive RJ45 Gigabit Ethernet Port ×2
USB3.0 Type-A Port ×2
USB2.0 Type-A Port ×2
DC Power ×1
HDMI 2.0 ×2
3.5mm Audio Jack ×1
Power
DC 12V-4A (Adapter Included)
System
Windows 11
Dimensions
123.8mm*128mm*40.9mm
FAQ
xDoes S1 come with a pre-installed system?
Except for the barebone, all other configurations are pre-installed with the Win11 system.
How to Fix S1 Won't Turn On (Black Screen/No Display)
How to solve the problem that S1 cannot recognize SSD
S1 screen operation video
How to replace the memory and SSD of S1
How to use the S1 control program (screen control program & lighting control program)
How to save S1 screen settings
S1 Screen Lighting Control Driver Download link:
How to turn off the screen on the Acemagic S1 MiniPC case?
It can only be turned off by turning off the S1 power supply.
Stylish Mini PC With Digital Screen
ACEMAGIC Mini PC S1
Advantages

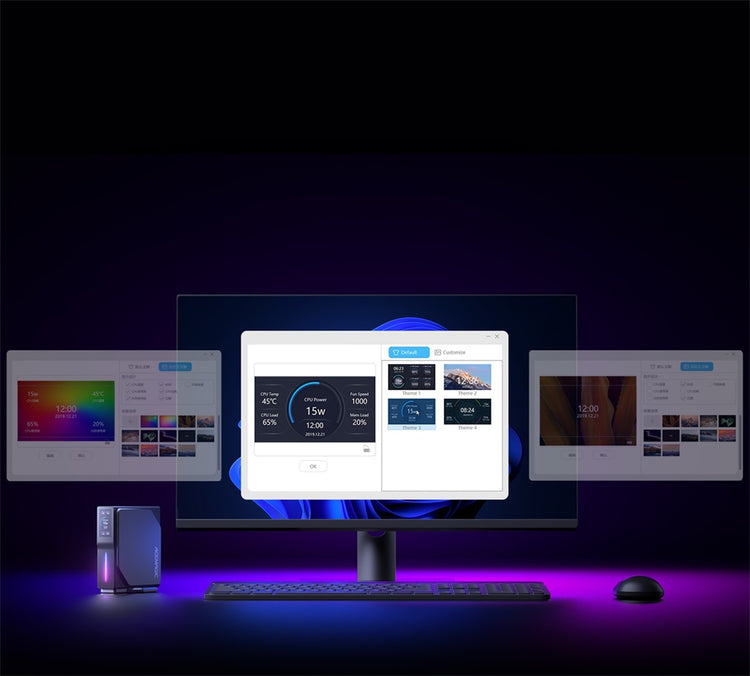

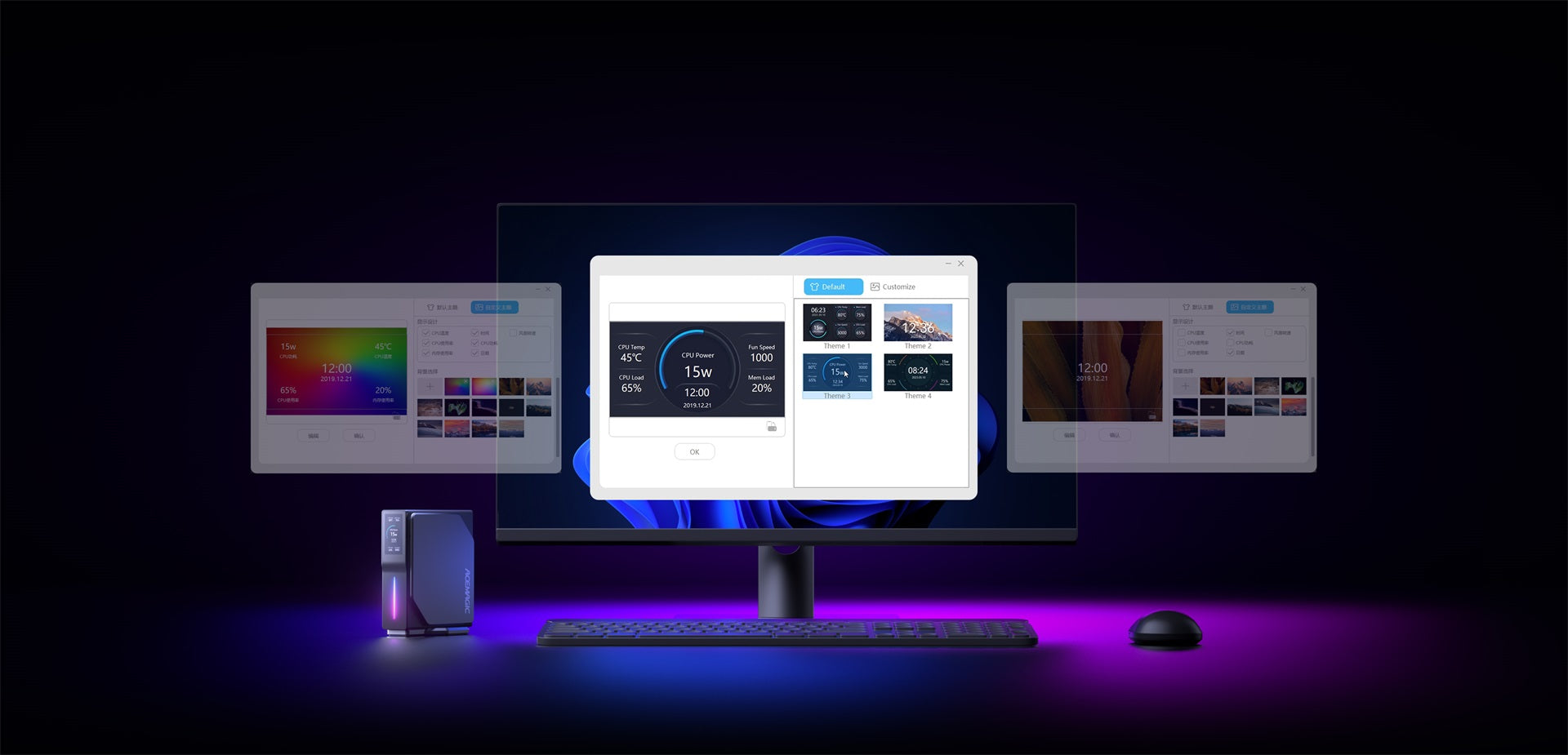

Tailor Your Screen Style
Competitive Performance

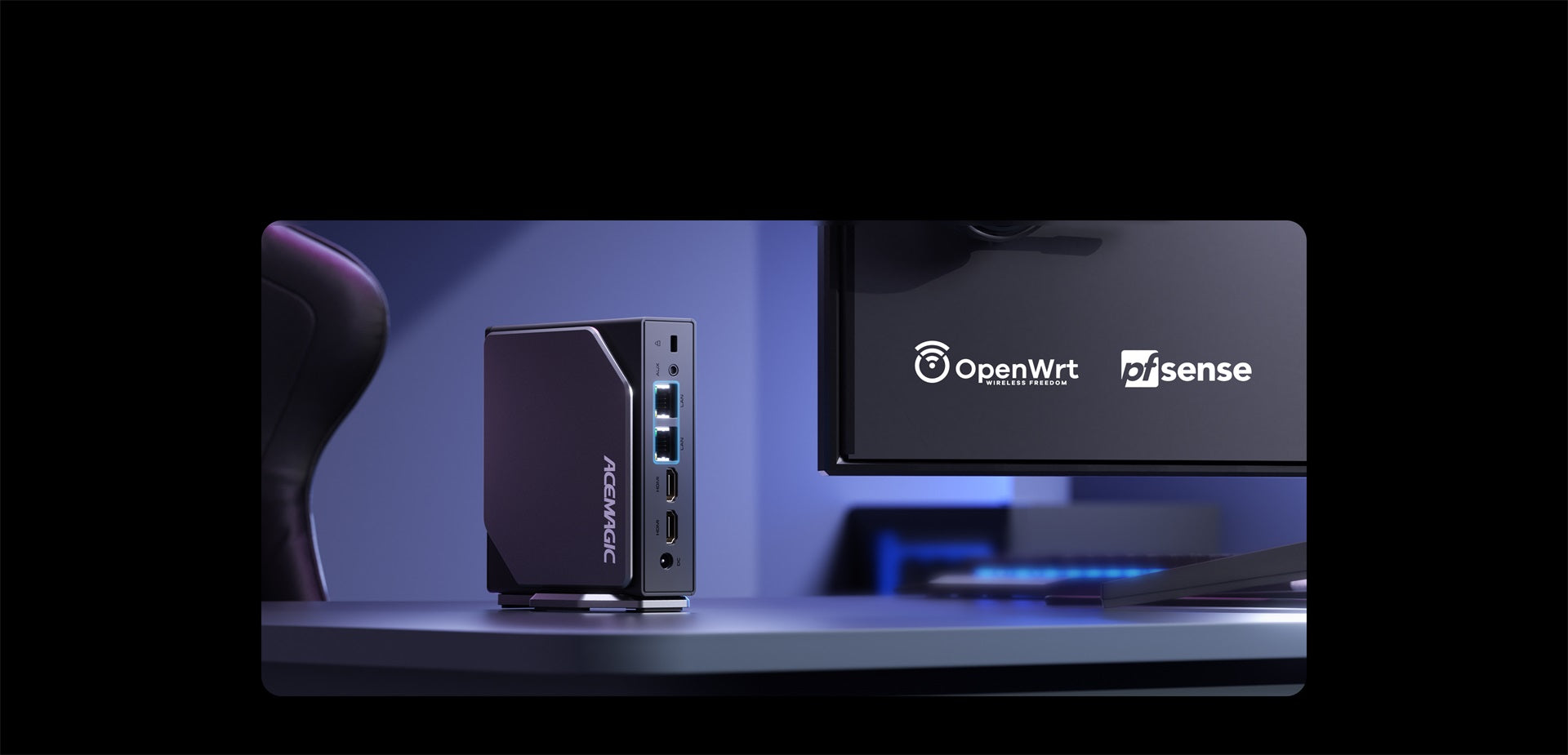

Dual Gigabit Ethernet
File Storage Server

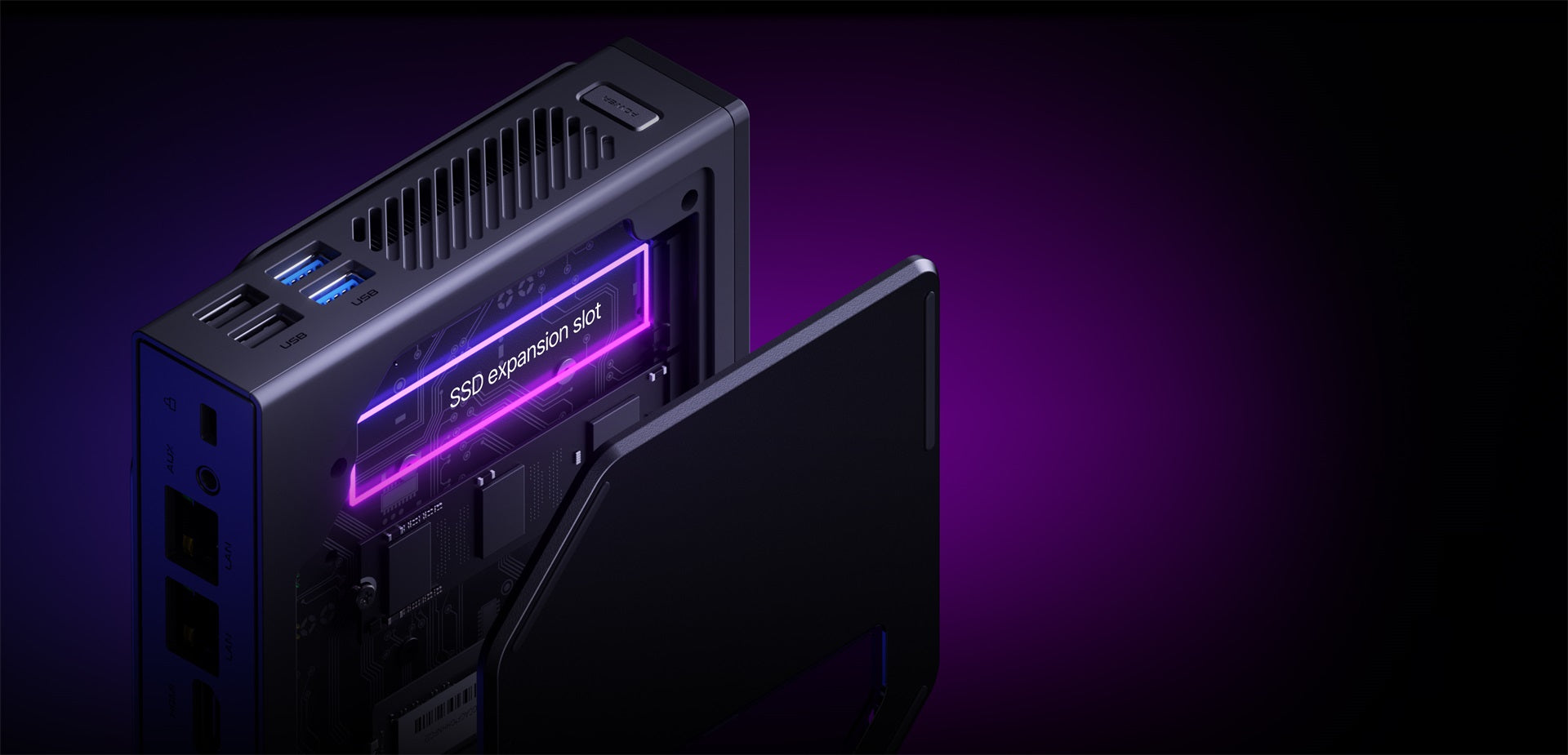

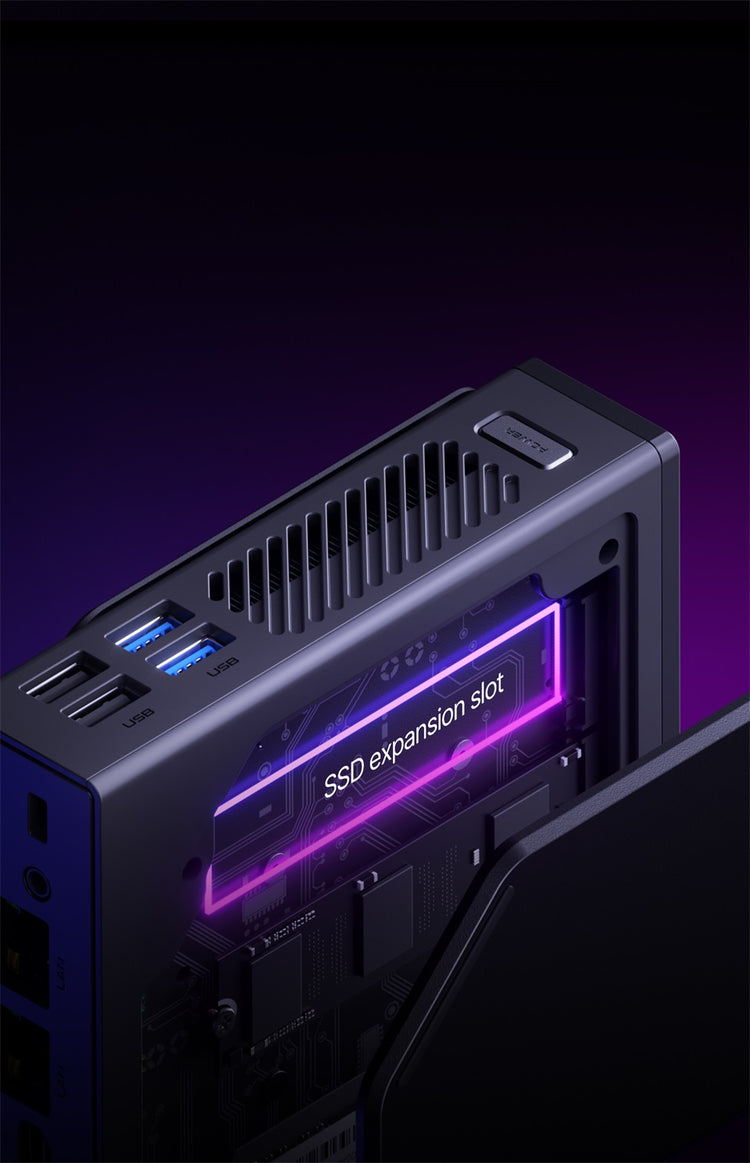

Magnetic Detachable Casing Design
Fast WIFI Browser Experience

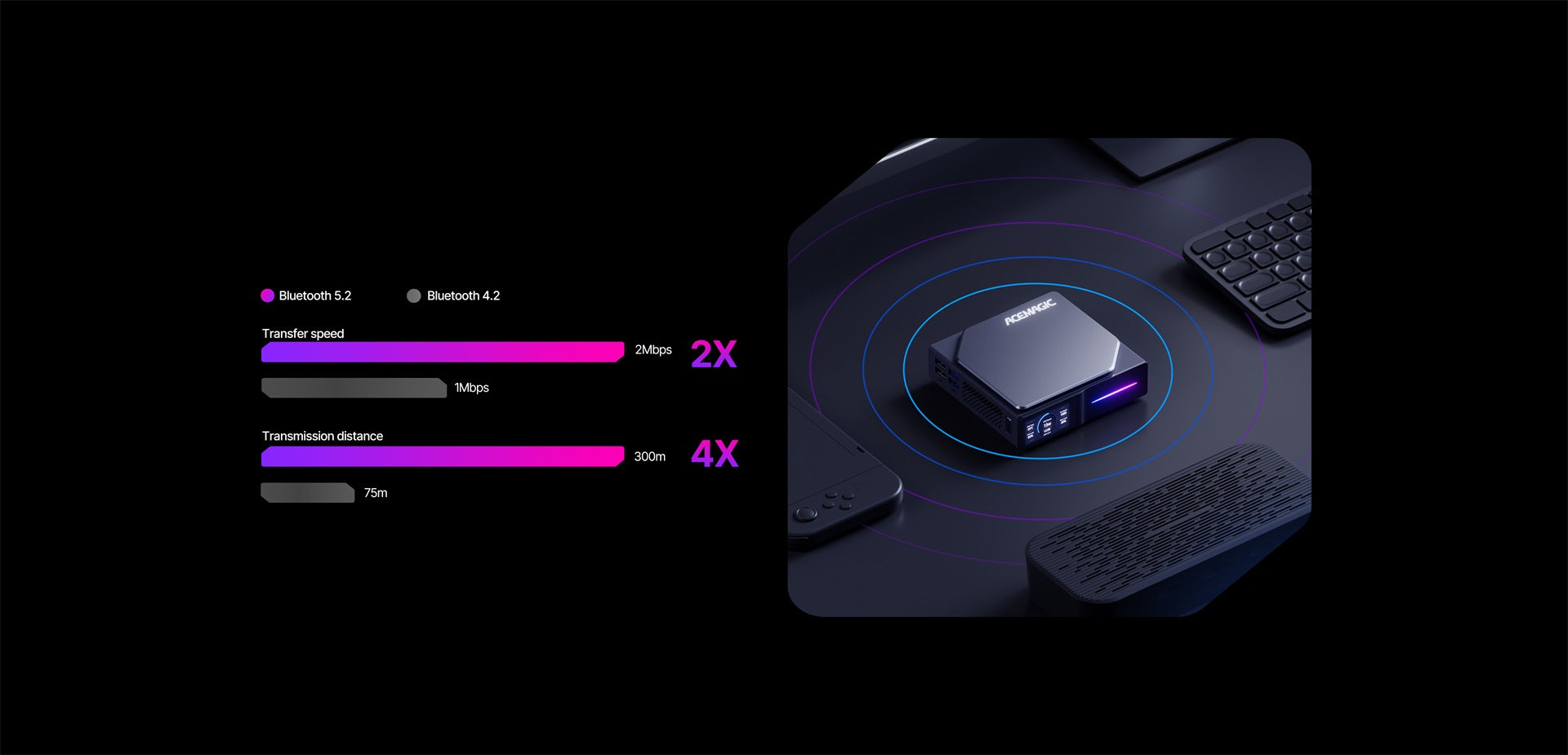

Newly Upgraded Bluetooth 5.2

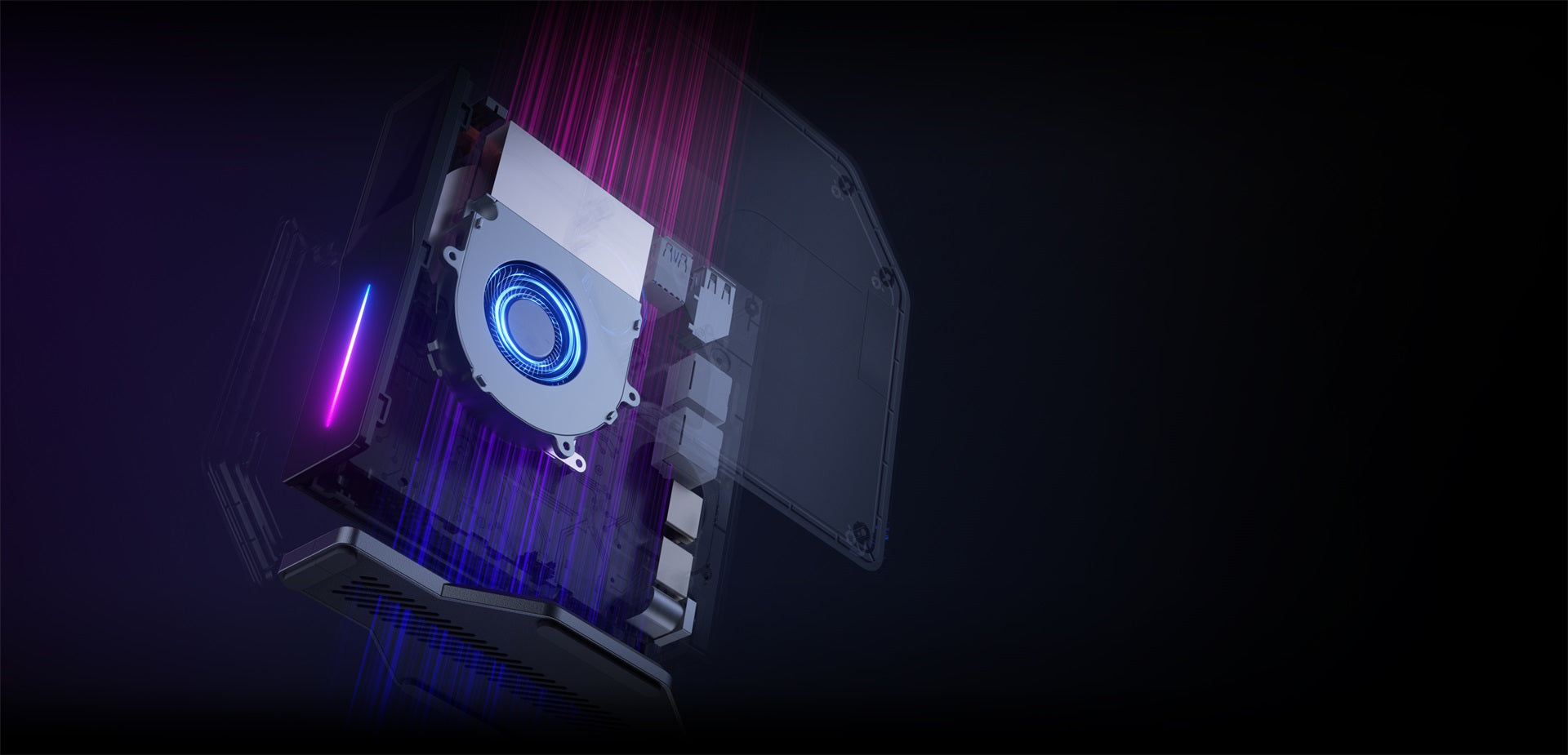

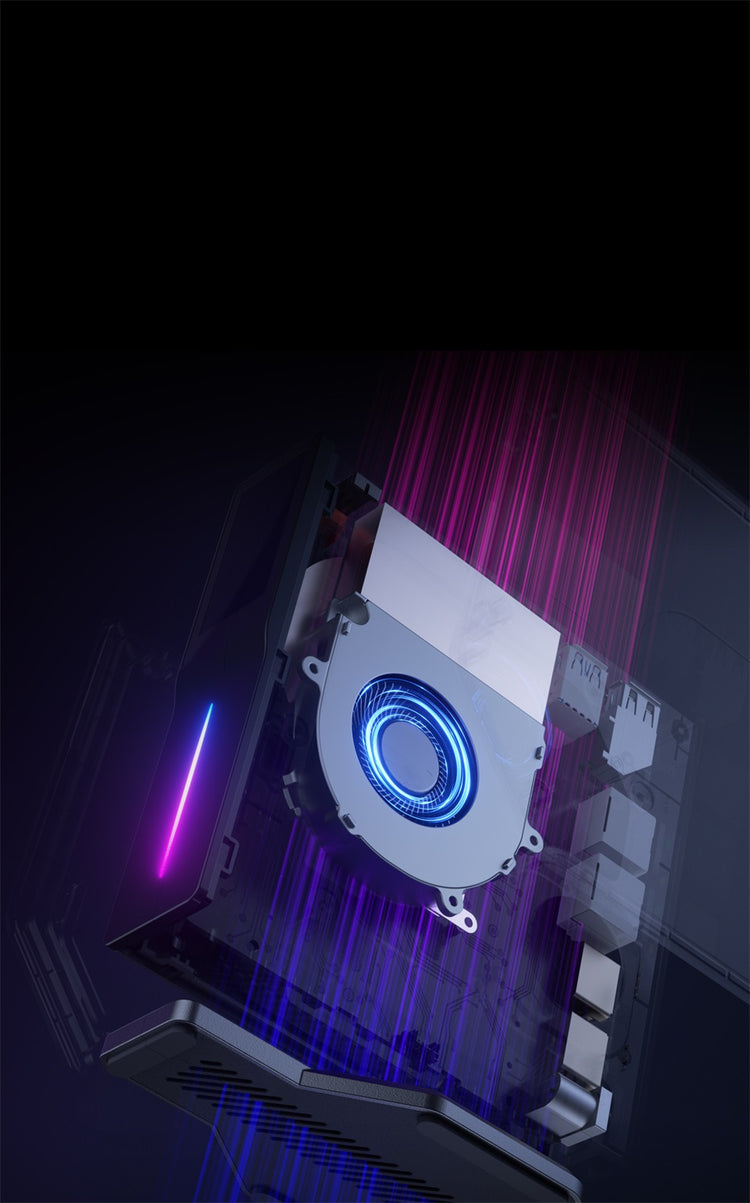

Efficient Heat Dissipation

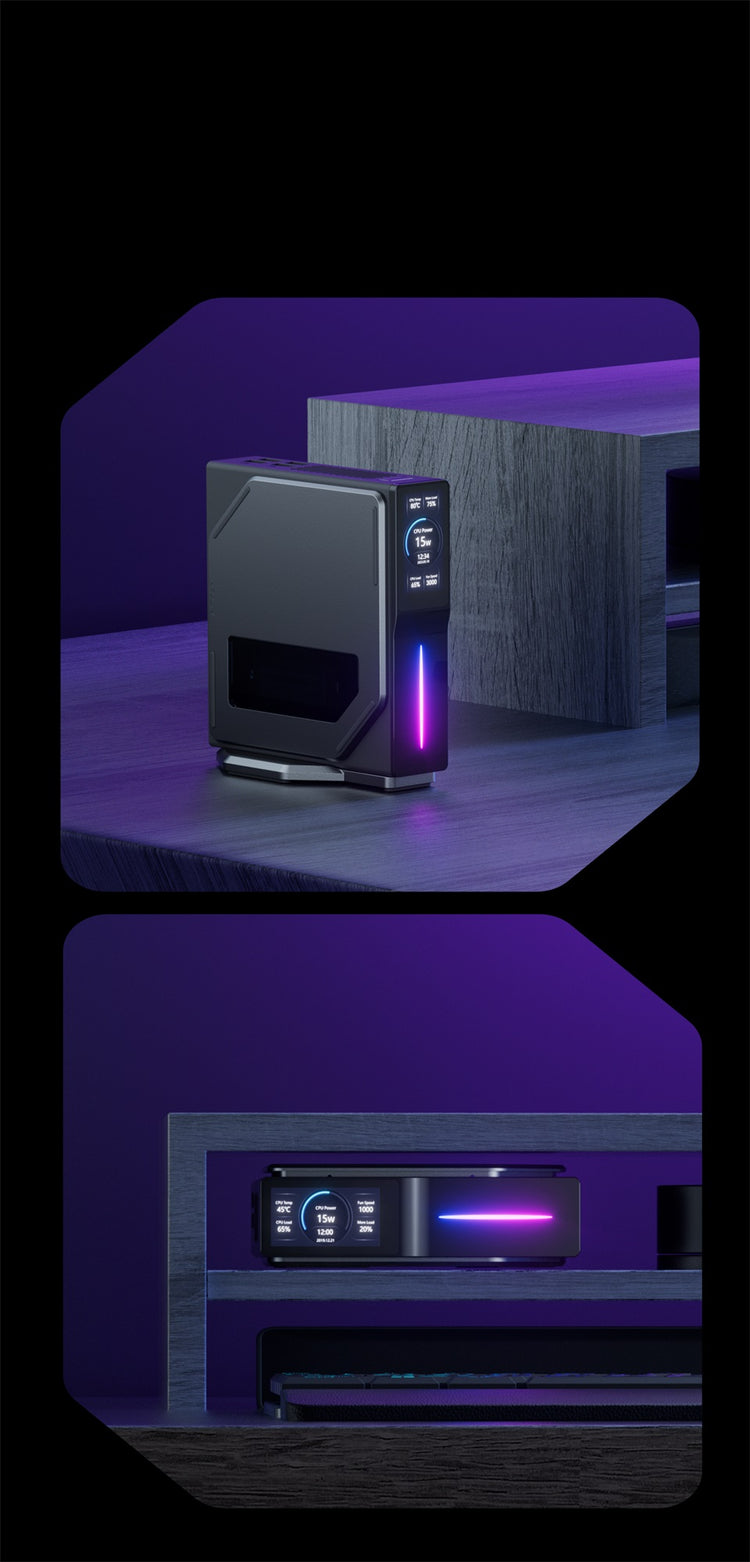

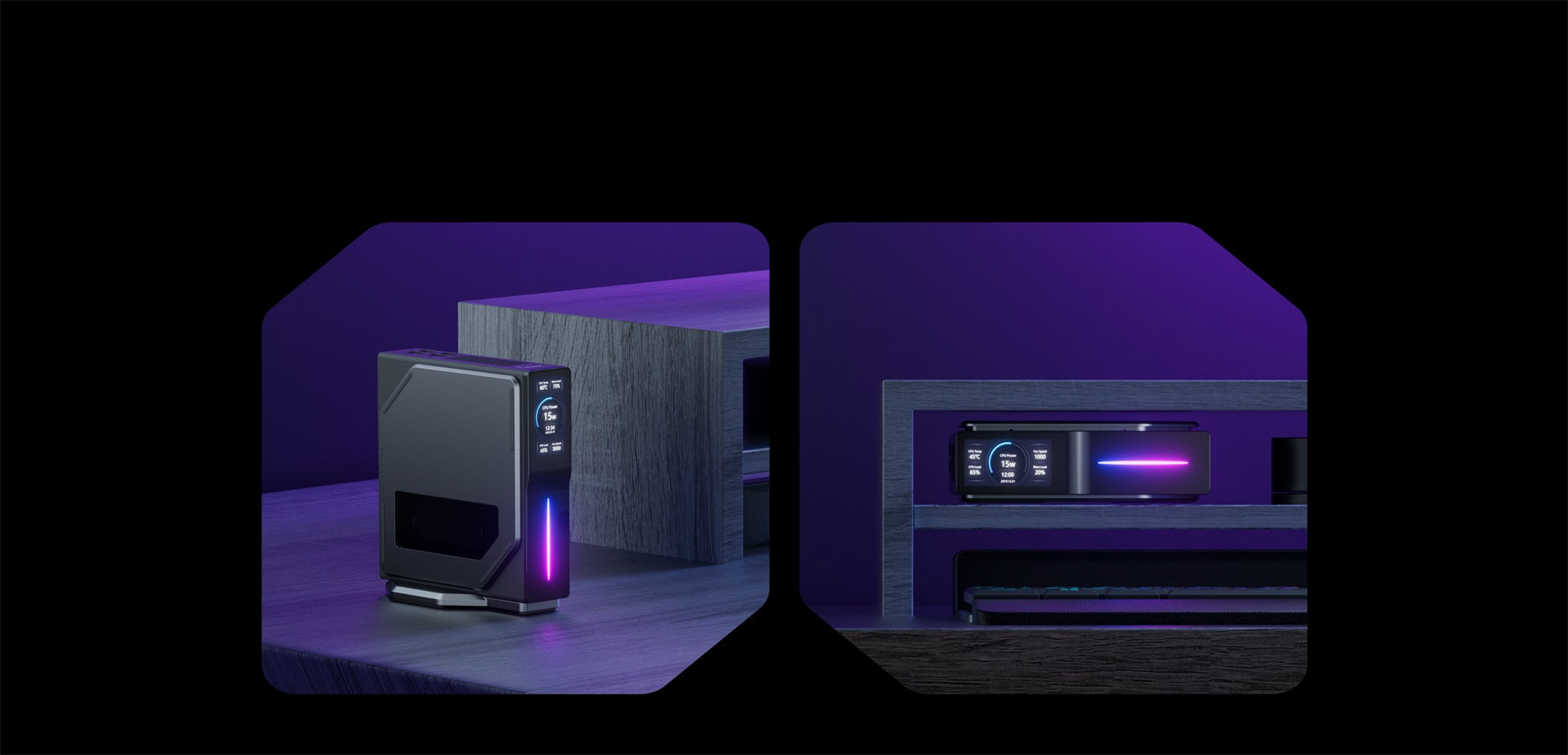

Can be placed vertically or horizontally!

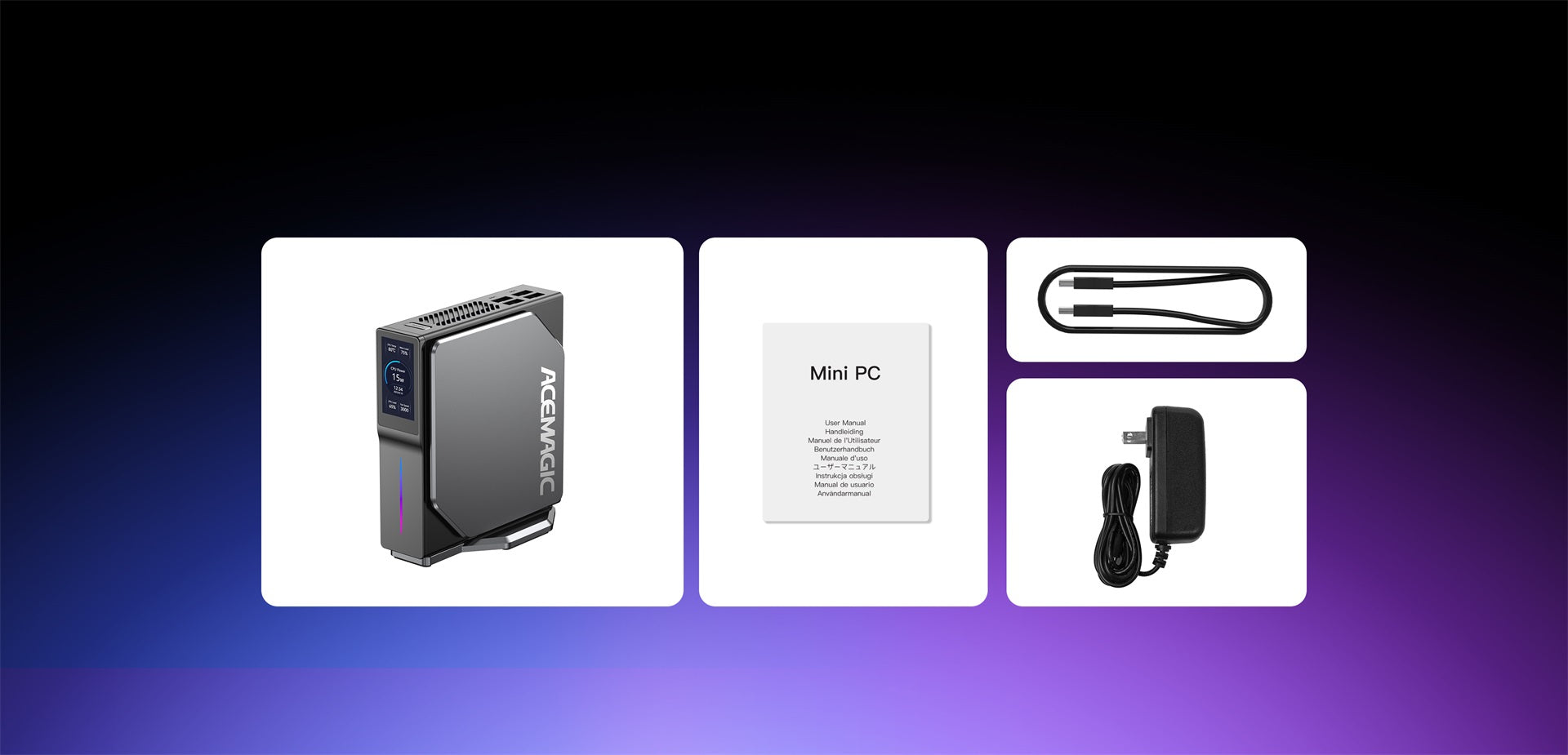

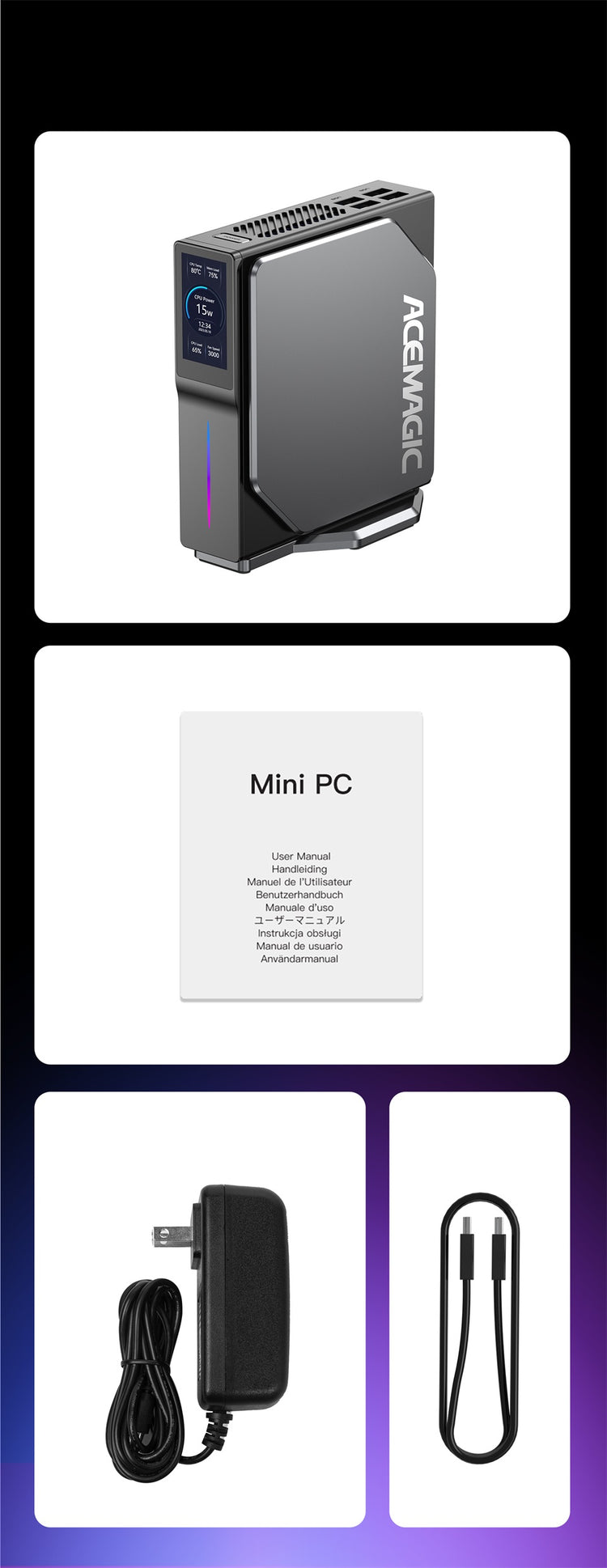

What's in the box?
